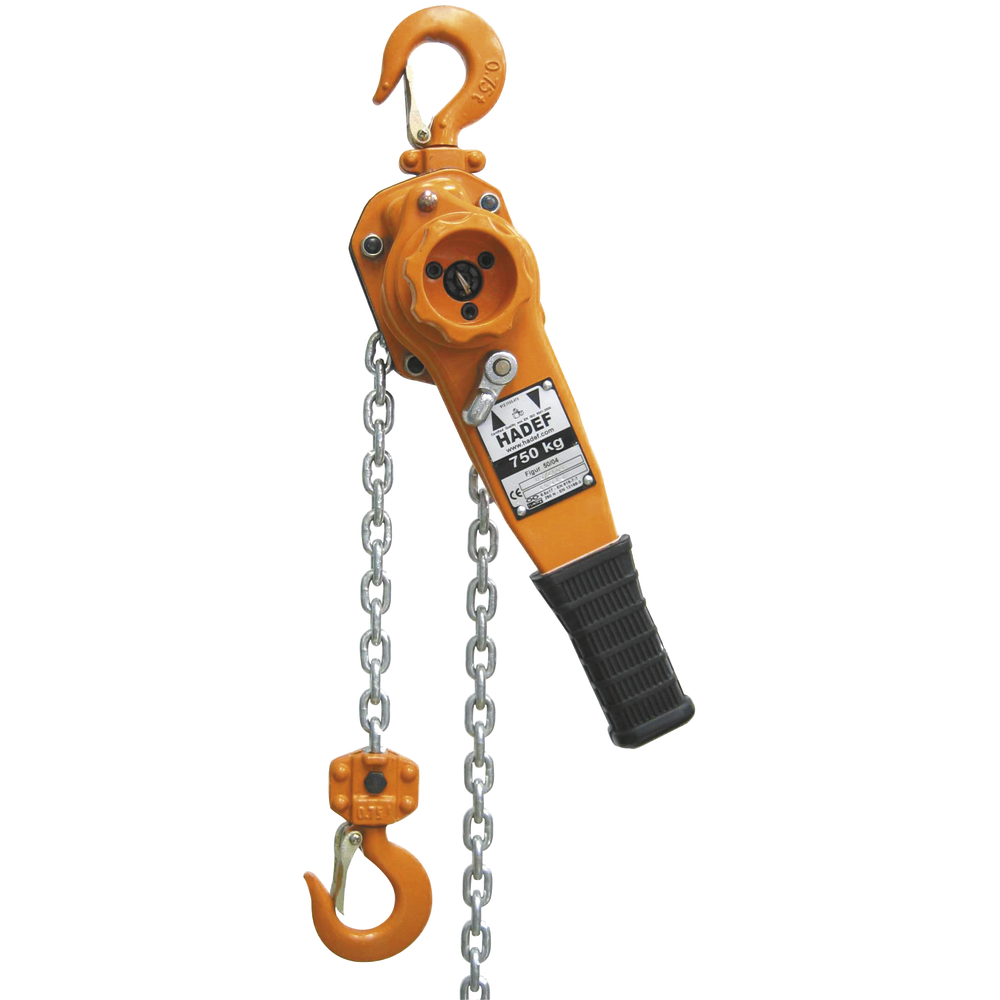

Lever hoist 750kg load capacity

Price:
285,00 €
prices excl. vat plus shipping costs

Stock status
Directly from the manufacturer
Lever hoists
  • Highly versatile; for lifting, pulling and clamping
  • Minimal net weight
  • Free-wheeling mechanism for quickly feeding out the chain when unloaded
  • Self-acting, fully enclosed load brake
  • High-quality precision gearing
  • 1.5 m lifting height, can be extended by the metre on request

Standard lever hoists
Lever hoists
  • Highly versatile; for lifting, pulling and clamping
  • Minimal net weight
  • Free-wheeling mechanism for quickly feeding out the chain when unloaded
  • Self-acting, fully enclosed load brake
  • High-quality precision gearing
  • 1.5 m lifting height, can be extended by the metre on request

Standard lever hoists
Article no./ATORN no.
4725570750
Vendor Article no.
SERIE 50/07
Packaging unit
1
Catalogue page

Technical characteristics

A 122 mm
A 122 mm
B 140 mm
B 140 mm
Chain strands 1
Chain strands 1
D 266 mm
D 266 mm
E 88 mm
E 88 mm
H 280 mm
H 280 mm
Leverage force approx. 29 daN
Leverage force approx. 29 daN
Load bearing capacity 750 kg
Load bearing capacity 750 kg
Load chain thickness 5,6 mm
Load chain thickness 5,6 mm
Weight 6,2 kg
Weight 6,2 kg
