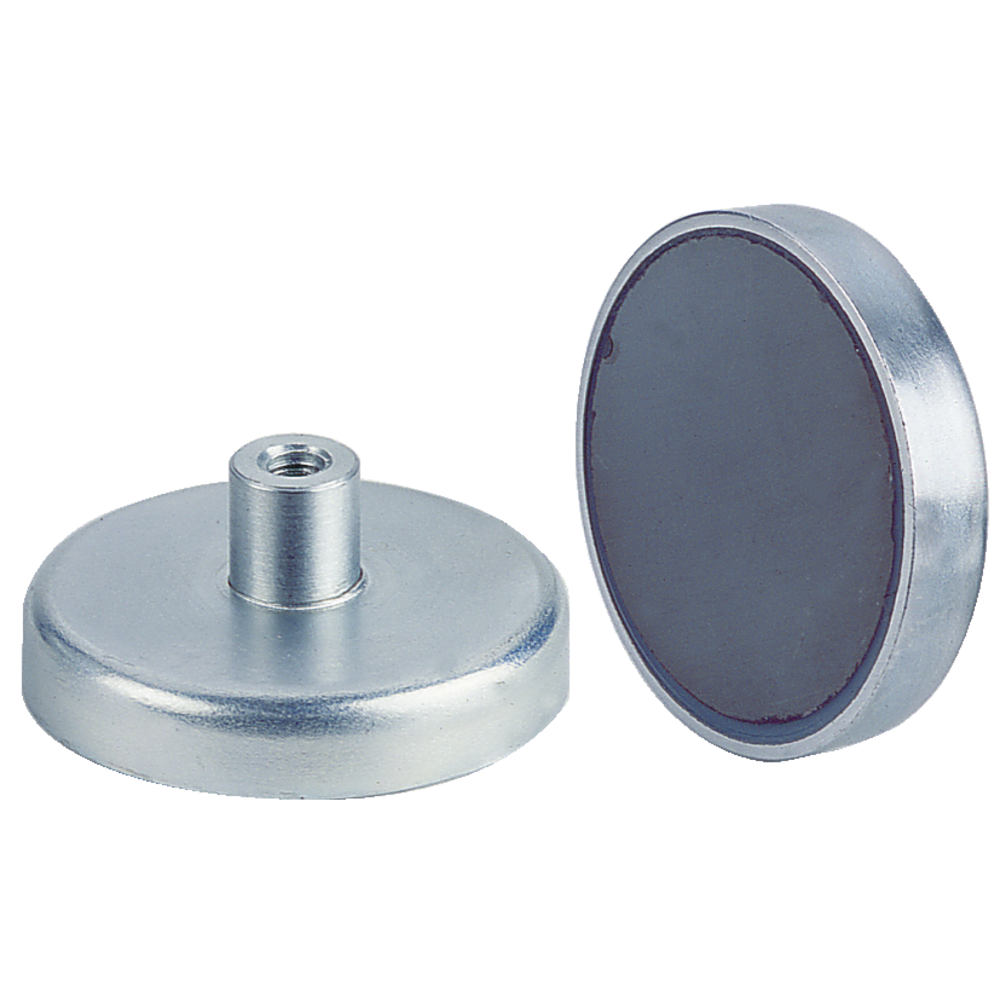

Pan-head pot magnet with internally threaded pin, 10mm M3

Pan-head pot magnet with internally threaded pin, 10mm M3
Pan-head pot magnet with internally threaded pin, 10mm M3 Pan-head pot magnet with internally threaded pin, 10mm M3
Price:
2,05 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Flat pot magnets
  • Galvanised surfaces, shielded system
  • Operating temperature up to 200 ºC
  • Note: Hairline cracks on the holding surface of the built-in magnetic material are unavoidable for production reasons. These do not impair the function of the holding magnets in any way.
  • Other dimensions available on request

Flat with internally threaded pin
Flat pot magnets
  • Galvanised surfaces, shielded system
  • Operating temperature up to 200 ºC
  • Note: Hairline cracks on the holding surface of the built-in magnetic material are unavoidable for production reasons. These do not impair the function of the holding magnets in any way.
  • Other dimensions available on request

Flat with internally threaded pin
Article no./ATORN no.
4710100010
Packaging unit
1
Catalogue page
KS-1321

Technical characteristics

D±0.2 10 mm
D±0.2 10 mm
D1 6 mm
D1 6 mm
D2 M 3 mm
D2 M 3 mm
h±0.2 4,5 mm
h±0.2 4,5 mm
L 11,5 mm
L 11,5 mm
Minimum retention force 4 N
Minimum retention force 4 N
T 7 mm
T 7 mm
