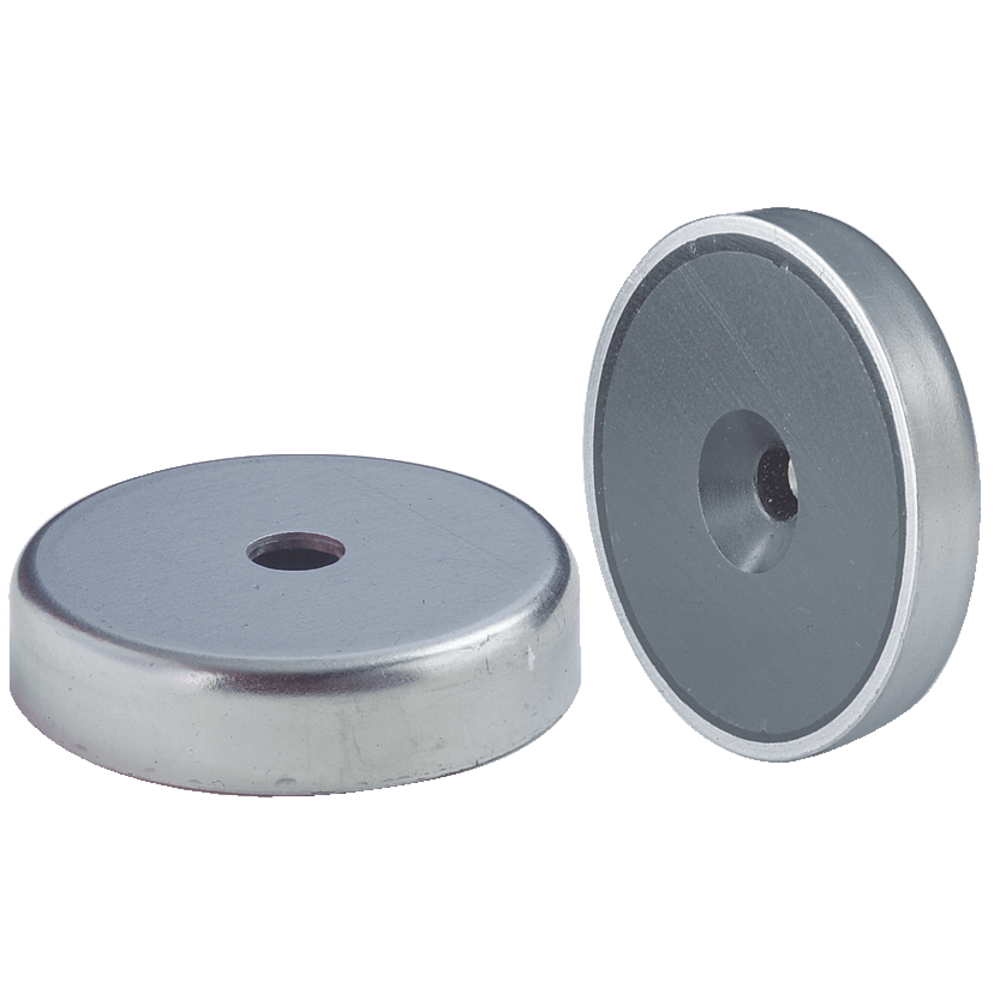

Pan-head pot magnet with bore, 16mm

Pan-head pot magnet with bore, 16mm
Pan-head pot magnet with bore, 16mm Pan-head pot magnet with bore, 16mm
Price:
2,15 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Flat pot magnets
  • Galvanised surfaces, shielded system
  • Operating temperature up to 200 ºC
  • Note: Hairline cracks on the holding surface of the built-in magnetic material are unavoidable for production reasons. These do not impair the function of the holding magnets in any way.
  • Other dimensions available on request

Flat with bore
  • Bore with countersink

Flat pot magnets
  • Galvanised surfaces, shielded system
  • Operating temperature up to 200 ºC
  • Note: Hairline cracks on the holding surface of the built-in magnetic material are unavoidable for production reasons. These do not impair the function of the holding magnets in any way.
  • Other dimensions available on request

Flat with bore
  • Bore with countersink

Article no./ATORN no.
4710050016
Packaging unit
1
Catalogue page
KS-1321

Technical characteristics

D 16 mm
D 16 mm
D1 3,3 mm
D1 3,3 mm
D2 7 mm
D2 7 mm
H Countersink 90º mm
H Countersink 90º mm
L 4,5 mm
L 4,5 mm
Minimum retention force 14 N
Minimum retention force 14 N
T 1,6 mm
T 1,6 mm
