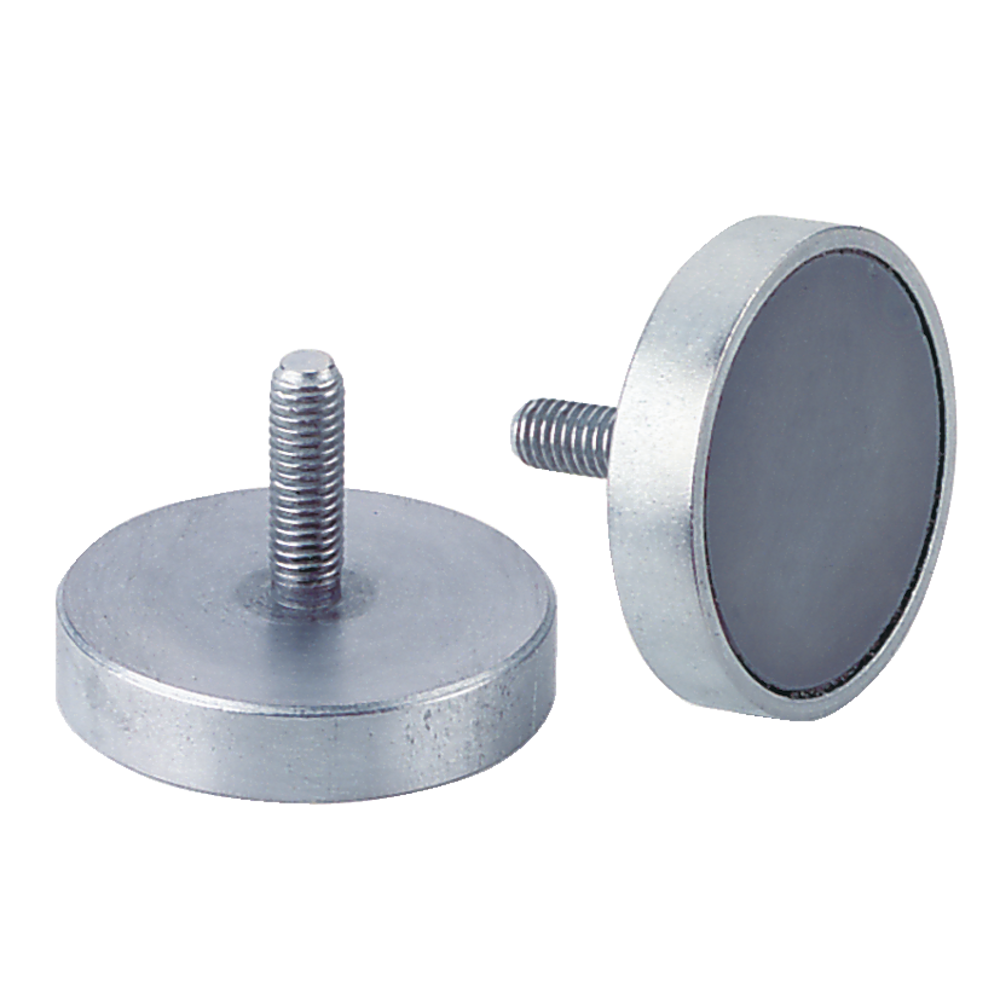

Pan-head pot magnet with externally threaded pin, 16mm M3

Pan-head pot magnet with externally threaded pin, 16mm M3
Pan-head pot magnet with externally threaded pin, 16mm M3 Pan-head pot magnet with externally threaded pin, 16mm M3
Price:
2,60 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Flat pot magnets
  • Galvanised surfaces, shielded system
  • Operating temperature up to 200 ºC
  • Note: Hairline cracks on the holding surface of the built-in magnetic material are unavoidable for production reasons. These do not impair the function of the holding magnets in any way.
  • Other dimensions available on request

Flat with externally threaded pin
  • Plane-ground holding surface

Flat pot magnets
  • Galvanised surfaces, shielded system
  • Operating temperature up to 200 ºC
  • Note: Hairline cracks on the holding surface of the built-in magnetic material are unavoidable for production reasons. These do not impair the function of the holding magnets in any way.
  • Other dimensions available on request

Flat with externally threaded pin
  • Plane-ground holding surface

Article no./ATORN no.
4701500016
Packaging unit
1
Catalogue page
KS-1321

Technical characteristics

D 16 mm
D 16 mm
H 11,5 mm
H 4,5 mm
H 11,5 mm
H 4,5 mm
Minimum retention force 18 N
Minimum retention force 18 N
Thread M 3
Thread M 3
Catalogue page Download
