Basic range

• All parts are made from tempering steel, T-slot screws hardened and tempered
• Rolled thread
• Ideal for tool making, production and use in training facilities

M16 x 18 set, slot width 18 mm

• Clamping force 40 kN
• Clamping heights 205 mm (2 clamping positions), 130 mm (4 clamping positions)

Basic range

• All parts are made from tempering steel, T-slot screws hardened and tempered
• Rolled thread
• Ideal for tool making, production and use in training facilities

M16 x 18 set, slot width 18 mm

• Clamping force 40 kN
• Clamping heights 205 mm (2 clamping positions), 130 mm (4 clamping positions)

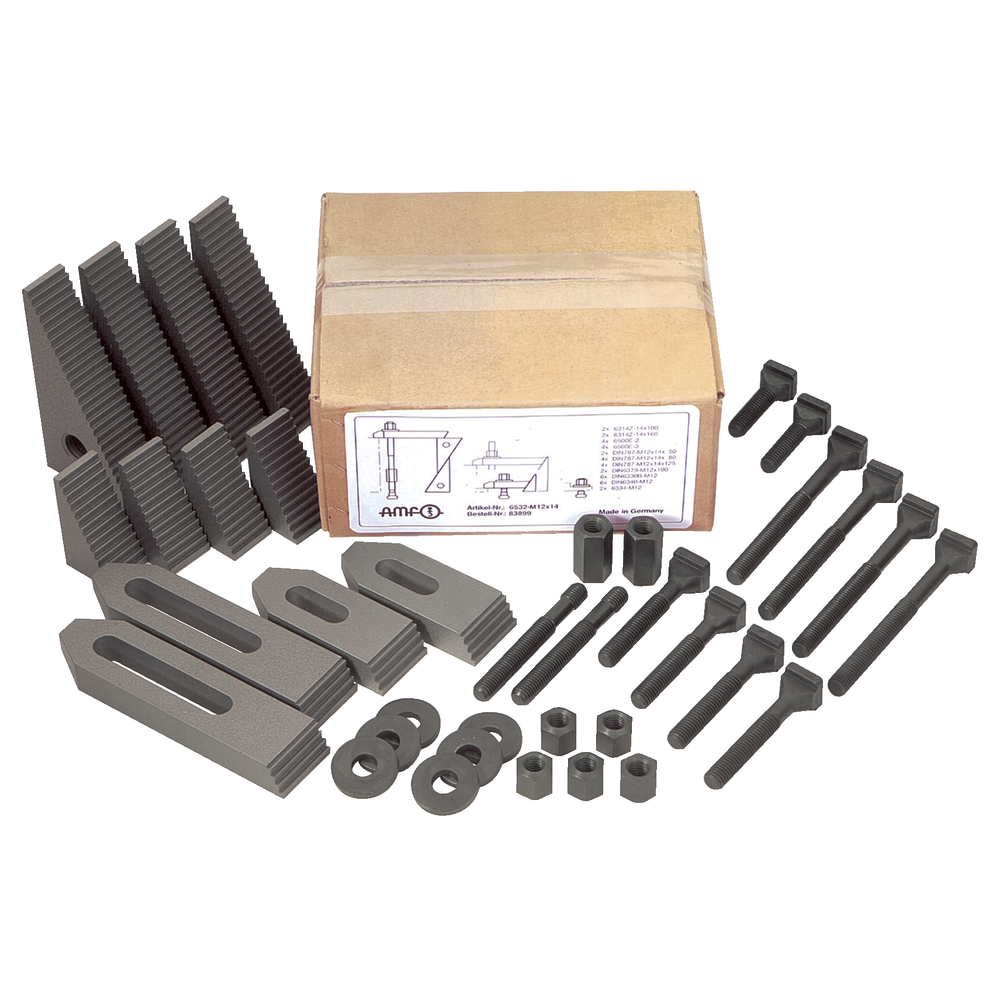

Contents of a tool set

• 2 Clamps with Stair Teeth 18 x 125
• 2 Clamps with Stair Teeth 18 x 200
• 4 Universal Clamping Pad Model 2
• Universal Clamping Pad Model 3
• 2 DIN 787 Bolt for T-slots M16 x 63
• 4 DIN 787 Bolt for T-slots M16 x 100
• 4 DIN 787 Bolt for T-slots M16 x 160
• 4 DIN 6379 stud screw M16 x 160
• 2 DIN 6379 stud screw M16 x 200
• 6 DIN 6330 B Hex Nut M16
• 4 Extension nut M16
• 6 DIN 6340 Washer M16
