Boxed clamping tool set

• Designed for machine tools with T-slot tables
• All the necessary elements for quickly clamping tools, fixtures or workpieces
• All parts are replaceable and extensible
• Tempering steel in accordance with DIN or company standards
• Screw parts strength class 8 or 10
• Wooden box with removable hinged lid

M20 x 22 set with spring type clamp holder, slot width 22 mm
Boxed clamping tool set

• Designed for machine tools with T-slot tables
• All the necessary elements for quickly clamping tools, fixtures or workpieces
• All parts are replaceable and extensible
• Tempering steel in accordance with DIN or company standards
• Screw parts strength class 8 or 10
• Wooden box with removable hinged lid

M20 x 22 set with spring type clamp holder, slot width 22 mm

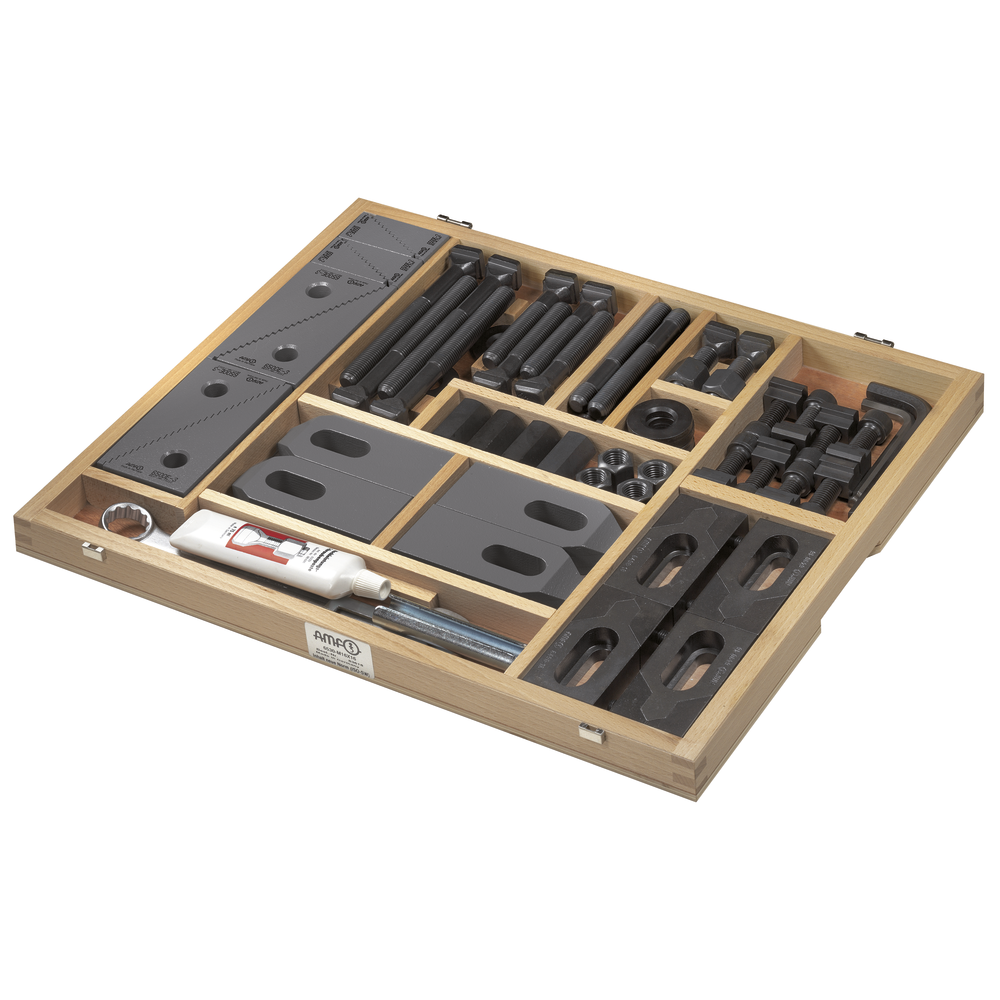

Contents of a tool set

• 4 Universal Clamping Pad Model 2
• 4 Universal Clamping Pad Model 3
• 4 Clamps with Stair Teeth 22 x 160
• 4 DIN 787 Screw for T-slots M20 x 125
• 4 DIN 787 Screw for T-slots M20 x 200
• 4 DIN 6379 stud screw M20 x 125
• 6 DIN 6330 B Hexagon Nut M20
• 6 DIN 6319 G Conical Socket M20
• 4 Extension nut M20
• 1 slot scraper for groove width 14-20
• 1 No. 3113 A combination wrench 30x30
• 4 DIN 6342 Spring Clamp Holder Ø38
• 1 screw paste 75 ml
