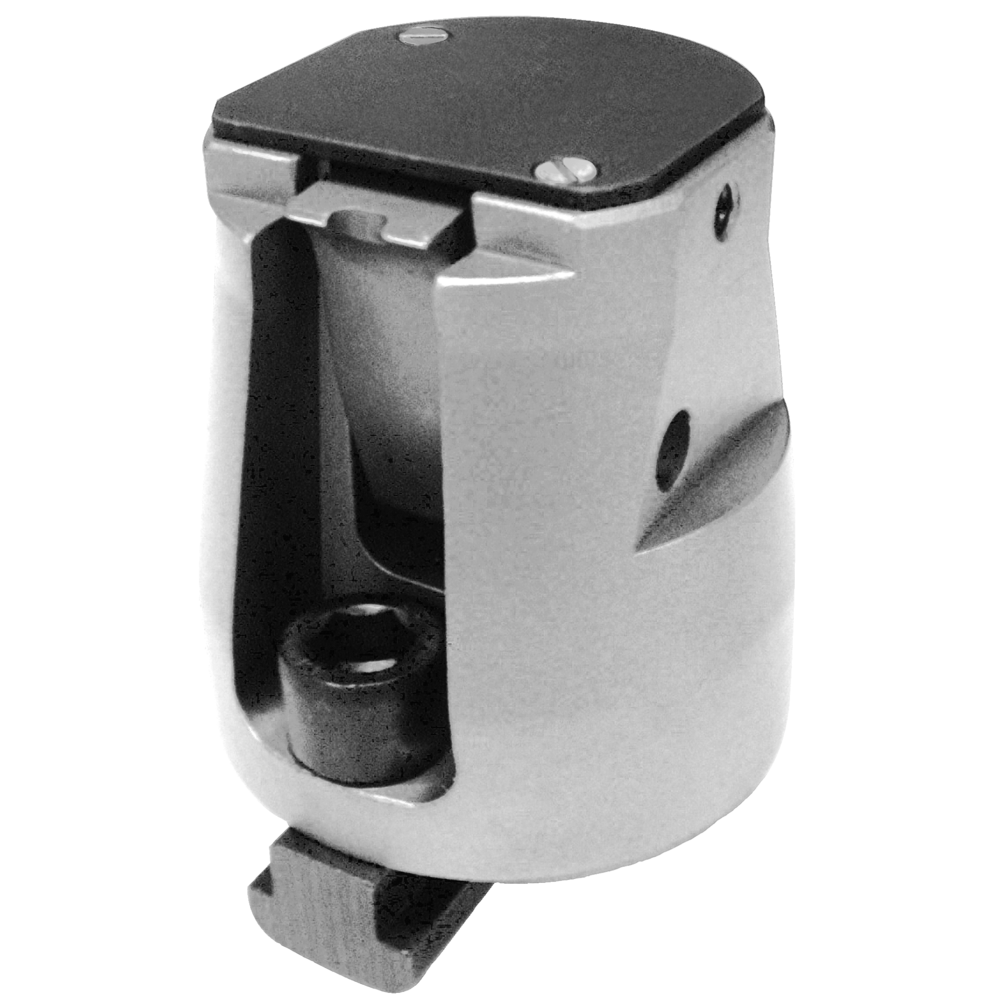

Side clamp

• M12 x 14, complete with slot nut
• Base body made from case-hardened steel, nitrided
• Tensioning hook made from case-hardened steel
• Tightening torque 75 Nm
• Attachment with screws, strength class 10.9
• Compact design
• Pull-down effect ensures that workpieces are securely and safely attached
• Increased plate tension for adding bores and slots
• Clamps plates laterally, allowing the full surface to be machined without any protruding contours
• Lateral thread allows a stop to be attached
• Can be used horizontally and vertically
• Reduced tooling costs
• Diverse and variable applications
• Can be used as a clamping element and as a fixed stop
• Moving the adjustment screw causes tensioning hooks to clamp the workpiece. At the same time, a pull-down effect is created on the supporting surface.
• Attaching a lateral stop enables the workpiece to be clamped repeatedly in the same position.
