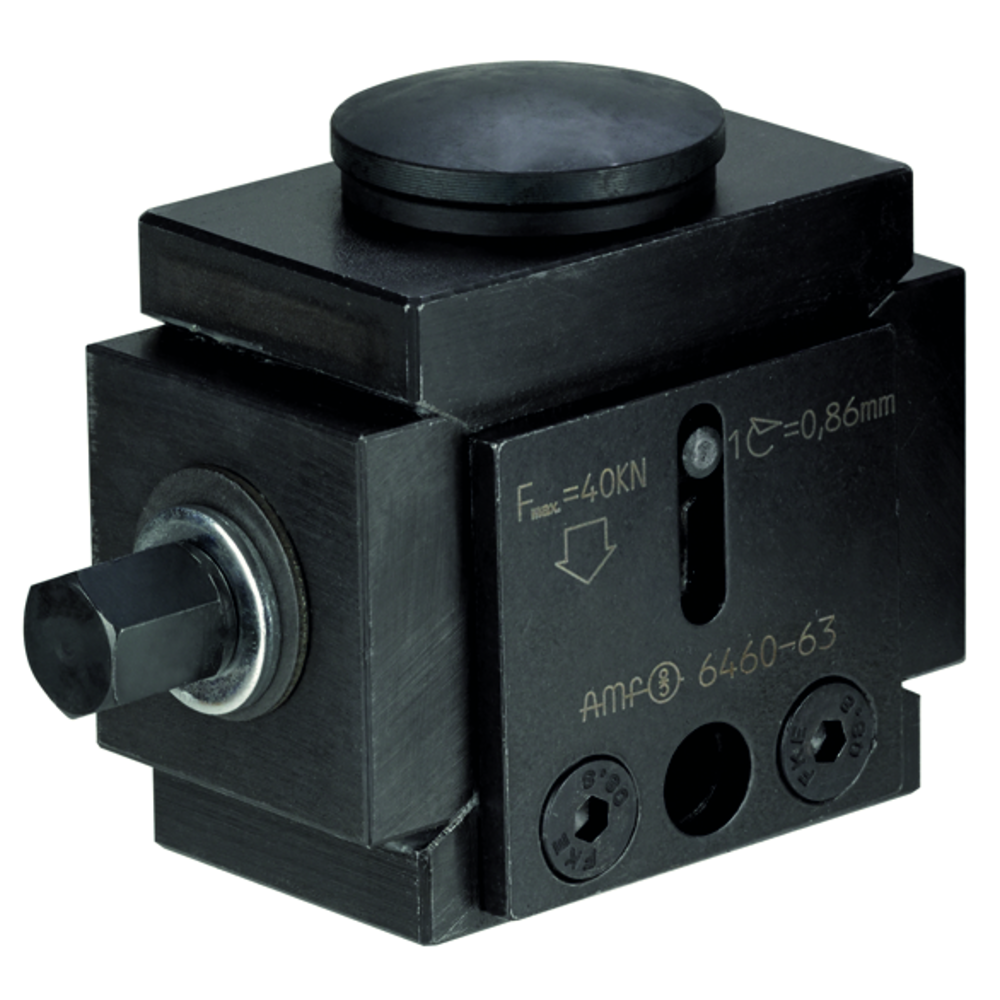

Correcting wedge HERKULES

• Height wedge
• Centring hole Ø 12 mm
• Ductile iron and steel hardened and tempered to a burnished shade, incl. ball attachment 466019 0001
• Correcting wedge can still be adjusted slightly at a load equal to one third of the maximum load capacity
• Precision-machined wedge surfaces enable smooth, sensitive adjustments (< 1/10 mm) using either a knurled-head screw or hexagonal screwdriver
• Double wedge effect, produces considerable lift and precise vertical movement without lateral displacement
• Height wedge tried and tested with heavy cast iron or forged parts on large machine tools
