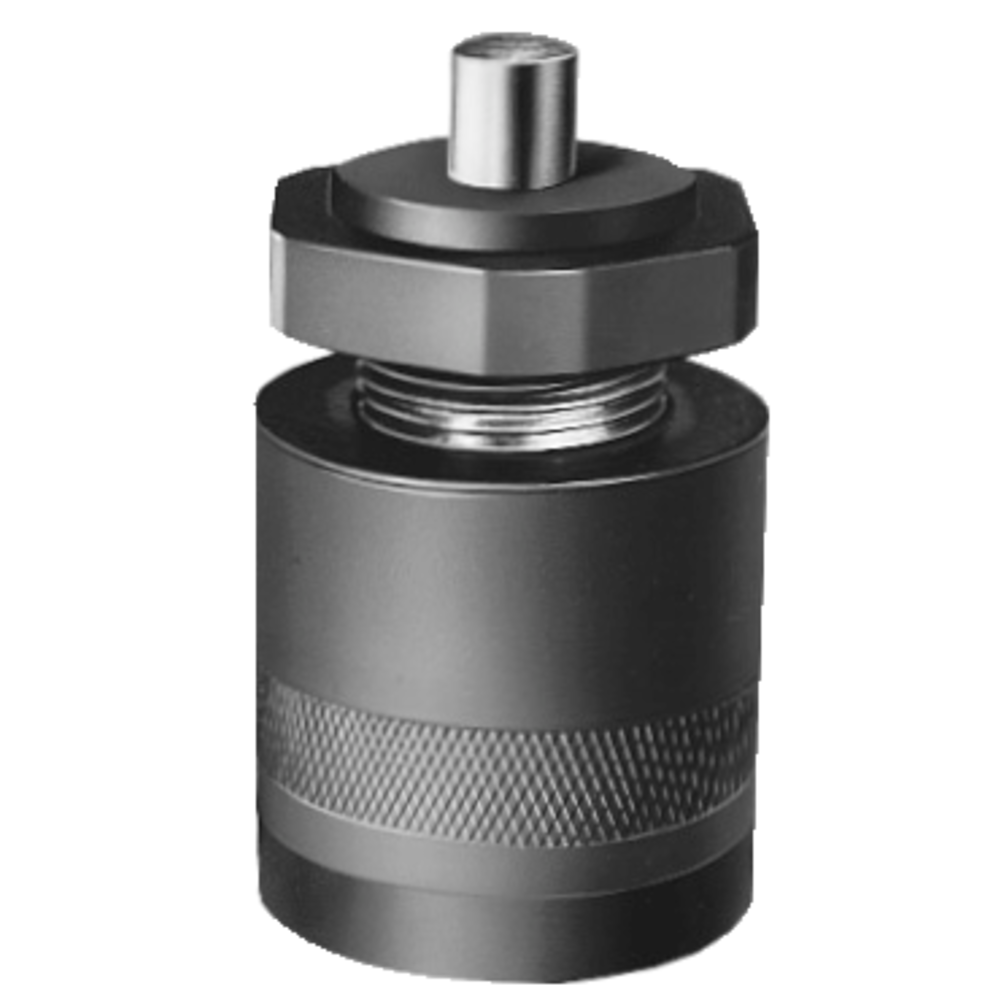

Height-adjustable threaded pedestal 55-75mm (load capacity 30kN)

Height-adjustable threaded pedestal 55-75mm (load capacity 30kN)
Height-adjustable threaded pedestal 55-75mm (load capacity 30kN) Height-adjustable threaded pedestal 55-75mm (load capacity 30kN)
Price:
154,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Height-adjustable threaded pedestal
  • With DIN 6325 cylindrical pins, 12 x 50 and 12 x 80 (1 of each)
  • Centring hole Ø 12 mm
  • Tempering steel, burnished
  • Spindle: metric fine thread, M30 x 1.5, with end stop body
  • Sliding insert runs on pressed-in plain bearing bush

Height-adjustable threaded pedestal
  • With DIN 6325 cylindrical pins, 12 x 50 and 12 x 80 (1 of each)
  • Centring hole Ø 12 mm
  • Tempering steel, burnished
  • Spindle: metric fine thread, M30 x 1.5, with end stop body
  • Sliding insert runs on pressed-in plain bearing bush

Article no./ATORN no.
4660500075
Vendor Article no.
86504
Packaging unit
1
Catalogue page
KS-1304

Technical characteristics

A 25 mm
A 25 mm
D 12 mm
D 36 mm
D 12 mm
D 36 mm
D1 50 mm
D1 50 mm
h - H 55 - 75 mm
h - H 55 - 75 mm
Load capacity 30 kN
Load capacity 30 kN
with straight shank 12 x 50 83 - 103 mm
with straight shank 12 x 50 83 - 103 mm
with straight shank 12 x 80 113 - 133 mm
with straight shank 12 x 80 113 - 133 mm
