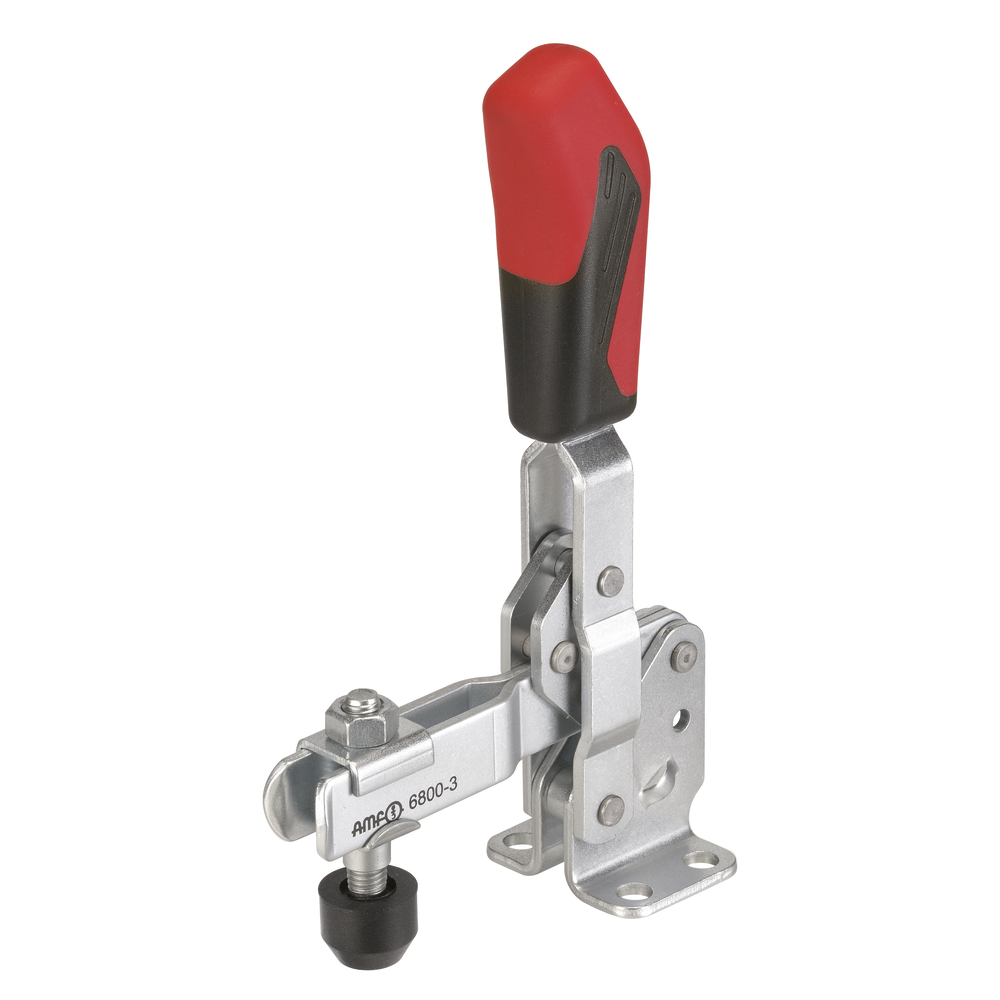

Vertical clamp

• Quick-action clamp with toggle mechanism
• Wide and quick clamp opening, complete workpiece exposure
• High final transmission with low force application, large clamping forces
• Self-locking mechanism prevents the clamp from opening due to machining forces
• Use: Drilling, welding, bending, grinding, testing and assembling
• Galvanised and passivated, case-hardened with greased bearing bushes
• Rivet made of stainless steel
• Complete with hardened, tempered and galvanised clamping screw
• Stainless steel version available on request

With open supporting arm and horizontal base
