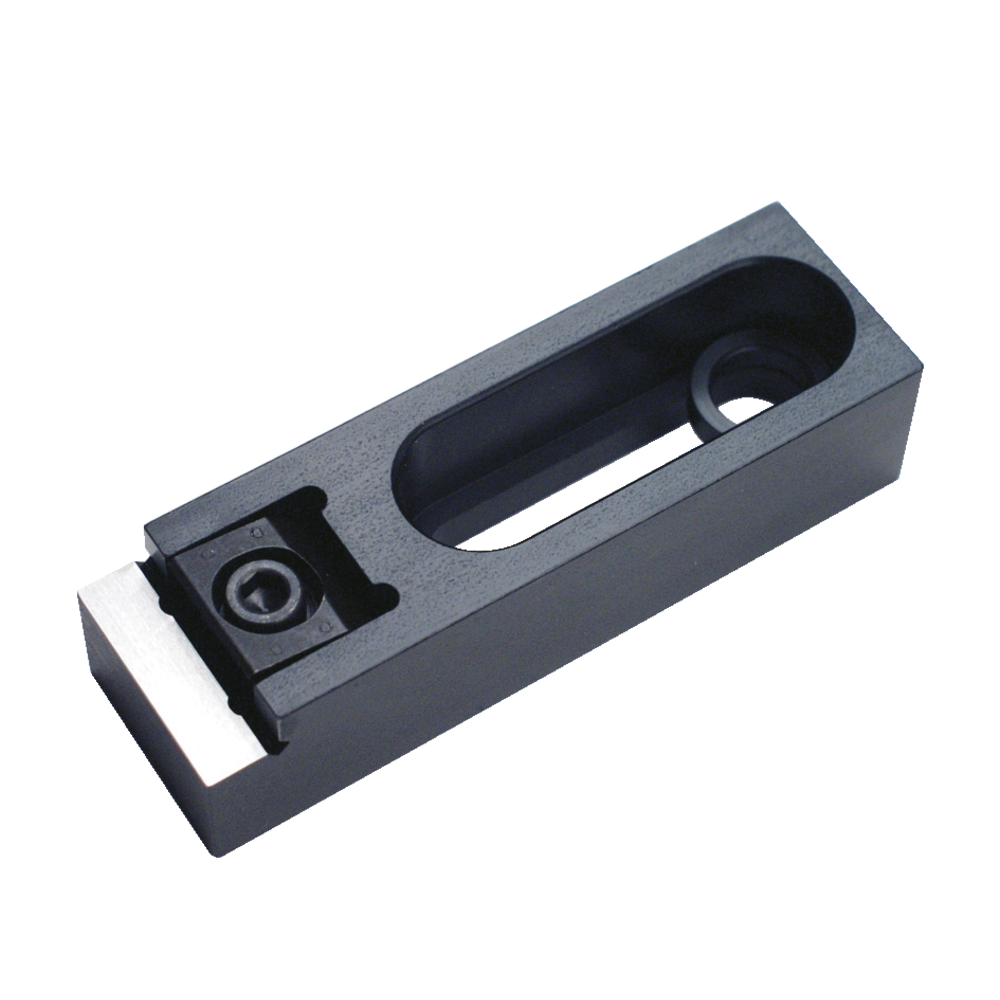

Universal anchor clamp M12

Price:
159,00 €
prices excl. vat plus shipping costs

Stock status
in stock

Ordered by 19:30 - delivered tomorrow.

Pitbull universal anchor clamps
  • For T-slots
  • Can be used on fixture plates, T-slot work tables, grid plates, clamping cubes, etc.
  • Base body hardened, supporting surfaces ground
  • Supplied without fastening screw or T-slot nut

Pitbull universal anchor clamps
  • For T-slots
  • Can be used on fixture plates, T-slot work tables, grid plates, clamping cubes, etc.
  • Base body hardened, supporting surfaces ground
  • Supplied without fastening screw or T-slot nut

Article no./ATORN no.
4750380120
Vendor Article no.
X56240
Packaging unit
1
Catalogue page

Technical characteristics

A 104 mm
A 104 mm
B 31,7 mm
B 31,7 mm
C 25 mm
C 25 mm
Clamping force 1600 N·m
Clamping force 1600 N·m
Clamping width 19,1 mm
Clamping width 19,1 mm
D H6 18,54 mm
D H6 18,54 mm
E 9,1 mm
E 9,1 mm
F 43,2 mm
F 43,2 mm
for T-slot 14, 16, 18 mm
for T-slot 14, 16, 18 mm
G 12,7 mm
G 12,7 mm
H 0,6 mm
H 0,6 mm
Screw M 12
Screw M 12
