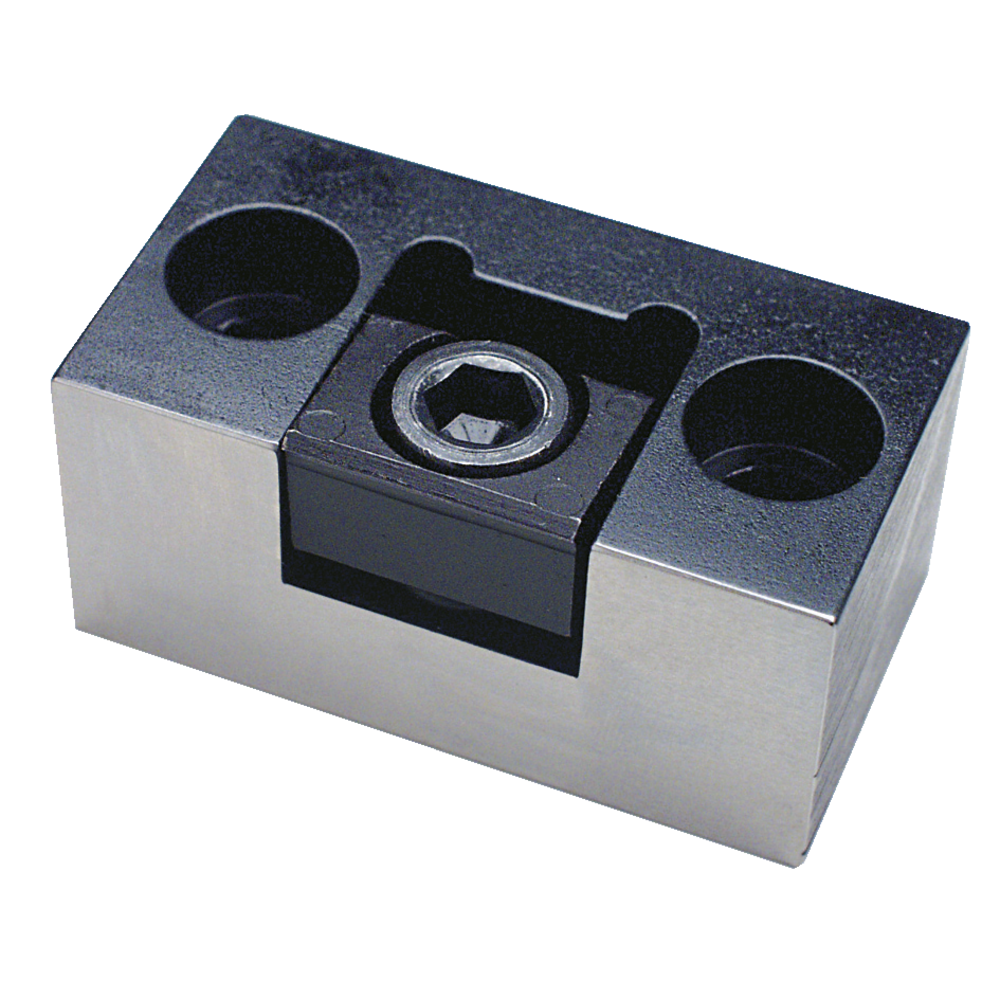

Combination anchor clamp M8

Combination anchor clamp M8
Combination anchor clamp M8 Combination anchor clamp M8
Price:
139,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Pitbull combi-anchor clamps
  • High clamping force of up to 26 kN
  • With rectangular ground rear side to simultaneously serve as a workpiece stop during multi-clamping
  • The engagement height of the clamping washer can be changed by the depth of an assembly slot

Pitbull combi-anchor clamps
  • High clamping force of up to 26 kN
  • With rectangular ground rear side to simultaneously serve as a workpiece stop during multi-clamping
  • The engagement height of the clamping washer can be changed by the depth of an assembly slot

Article no./ATORN no.
4750370080
Vendor Article no.
X56220
Packaging unit
1
Catalogue page

Technical characteristics

A 57,1 mm
A 57,1 mm
B 31,3 mm
B 31,3 mm
C 25,1 mm
C 25,1 mm
Clamping force 16 N·m
Clamping force 16 N·m
Clamping route 0,6 mm
Clamping route 0,6 mm
Clamping width 19,1 mm
Clamping width 19,1 mm
E 15,7 mm
E 15,7 mm
F 38,1 mm
F 38,1 mm
Thread M 8
Thread M 8
Tightening torque 22,5 N·m
Tightening torque 22,5 N·m
