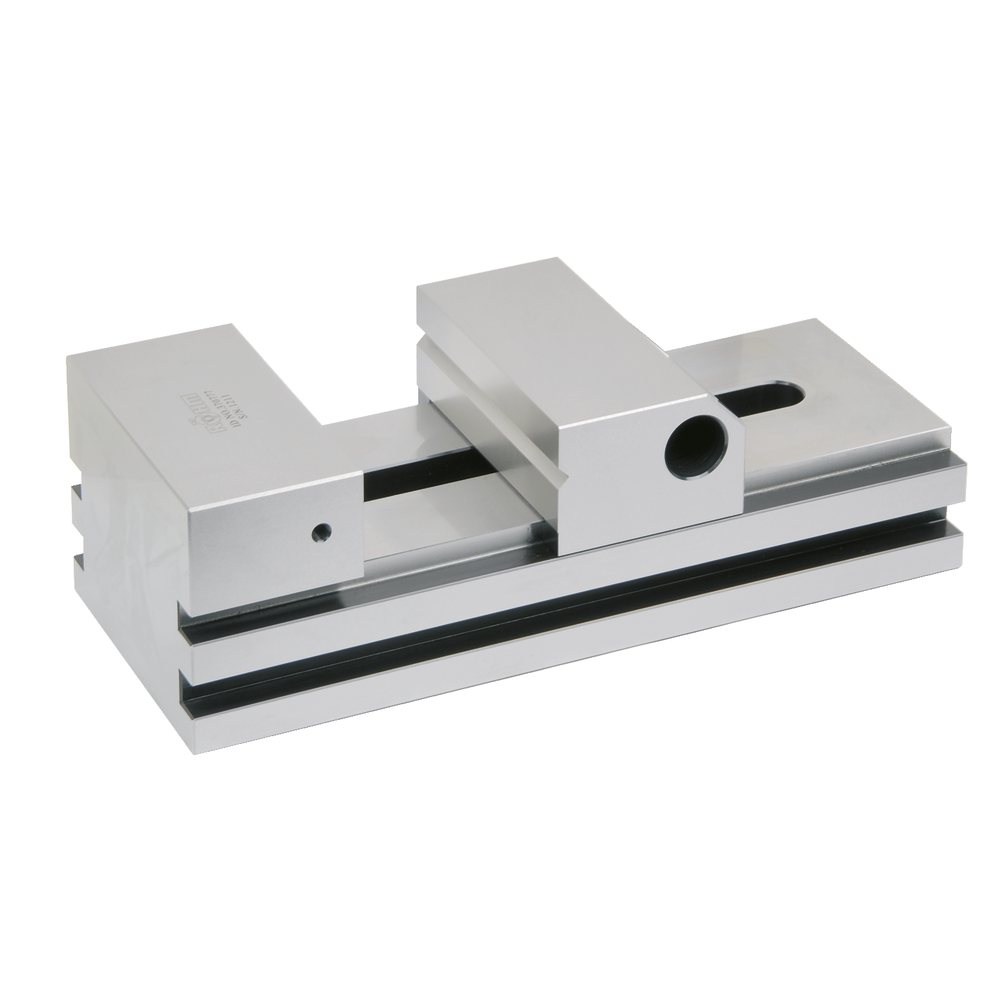

Precision clamp BB70mm, horizontal and vertical V-block

Precision clamp BB70mm, horizontal and vertical V-block
Precision clamp BB70mm, horizontal and vertical V-block Precision clamp BB70mm, horizontal and vertical V-block
Price:
325,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Precision clamp with quick adjustment
  • Quick adjustment
  • Maximum accuracy
  • Made from alloyed tool steel, hardened and finely ground on all sides
  • Easy to clamp and release with a hex key
  • Clamping jaw can be adjusted in steps; engages automatically
  • Pull-down effect
  • Suitable for grinding, milling and engraving machines, jig boring machines, measuring and inspection work, and any production processes that demand the highest clamping accuracy

Horizontal and vertical V-block
  • Size 0120 only horizontal V-block

Precision clamp with quick adjustment
  • Quick adjustment
  • Maximum accuracy
  • Made from alloyed tool steel, hardened and finely ground on all sides
  • Easy to clamp and release with a hex key
  • Clamping jaw can be adjusted in steps; engages automatically
  • Pull-down effect
  • Suitable for grinding, milling and engraving machines, jig boring machines, measuring and inspection work, and any production processes that demand the highest clamping accuracy

Horizontal and vertical V-block
  • Size 0120 only horizontal V-block

Article no./ATORN no.
4630060070
Vendor Article no.
1179516
Packaging unit
1
Catalogue page
KS-1250

Technical characteristics

Clamping width 80 mm
Clamping width 80 mm
Jaw height 30 mm
Jaw height 30 mm
Jaw width 70 mm
Jaw width 70 mm
Parallelism 0,002 µm
Parallelism 0,002 µm
Perpendicularity 0,005 mm
Perpendicularity 0,005 mm
Total height 62 mm
Total height 62 mm
Total length 160 mm
Total length 160 mm
Catalogue page Download
