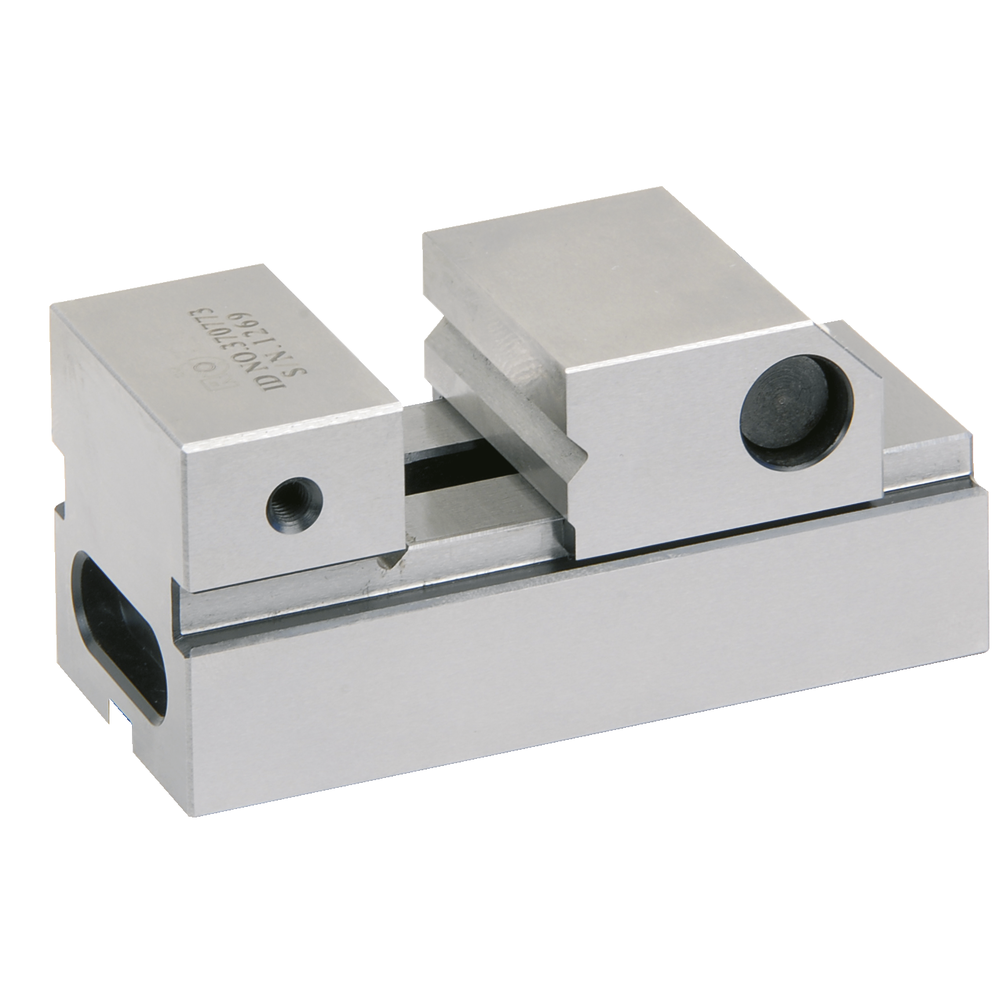

Precision clamp BB34mm, horizontal V-block

Precision clamp BB34mm, horizontal V-block
Precision clamp BB34mm, horizontal V-block Precision clamp BB34mm, horizontal V-block
Price:
160,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Precision clamp with quick adjustment
  • Quick adjustment
  • Maximum accuracy
  • Made from alloyed tool steel, hardened and finely ground on all sides
  • Easy to clamp and release with a hex key
  • Clamping jaw can be adjusted in steps; engages automatically
  • Pull-down effect
  • Suitable for grinding, milling and engraving machines, jig boring machines, measuring and inspection work, and any production processes that demand the highest clamping accuracy

Horizontal V-block
Precision clamp with quick adjustment
  • Quick adjustment
  • Maximum accuracy
  • Made from alloyed tool steel, hardened and finely ground on all sides
  • Easy to clamp and release with a hex key
  • Clamping jaw can be adjusted in steps; engages automatically
  • Pull-down effect
  • Suitable for grinding, milling and engraving machines, jig boring machines, measuring and inspection work, and any production processes that demand the highest clamping accuracy

Horizontal V-block
Article no./ATORN no.
4630040030
Vendor Article no.
1179514
Packaging unit
1
Catalogue page
KS-1250

Technical characteristics

Clamping width 25 mm
Clamping width 25 mm
Jaw height 15 mm
Jaw height 15 mm
Jaw width 34 mm
Jaw width 34 mm
Parallelism 0,002 µm
Parallelism 0,002 µm
Perpendicularity 0,005 mm
Perpendicularity 0,005 mm
Total height 35 mm
Total height 35 mm
Total length 75 mm
Total length 75 mm
