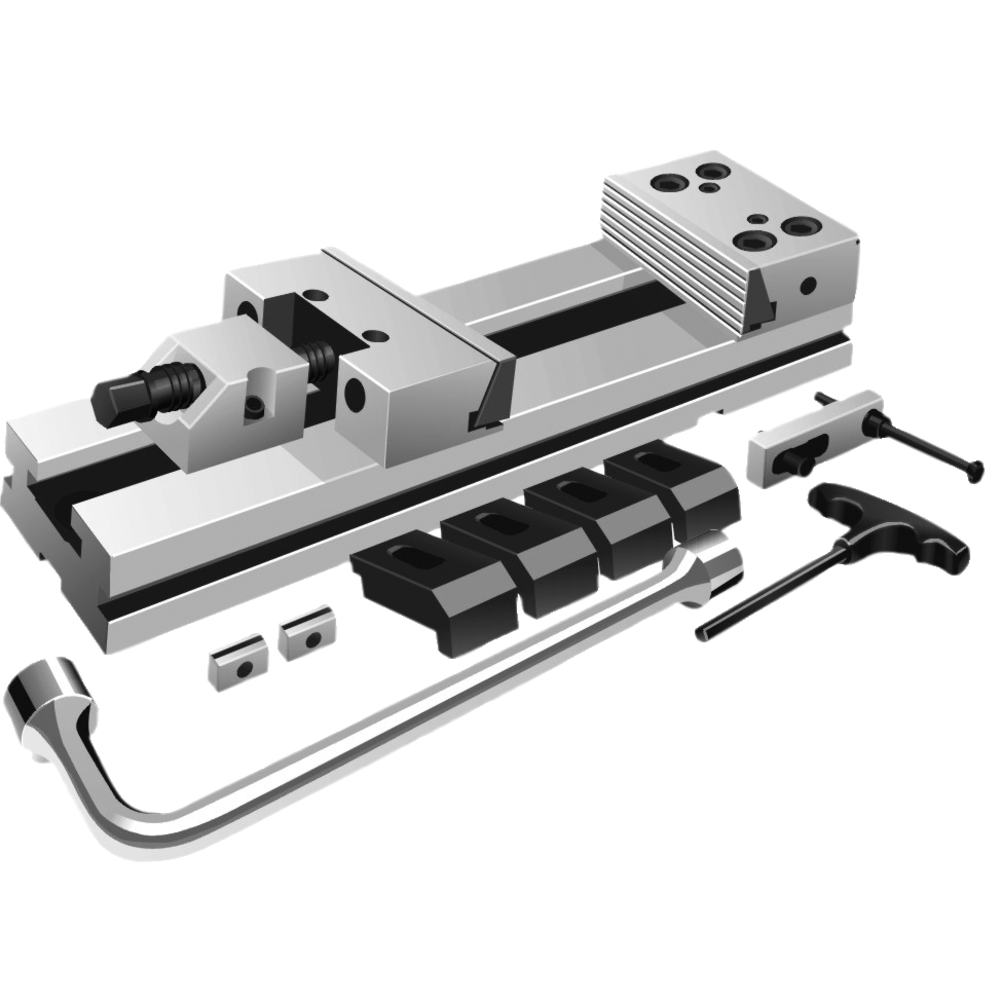

Precision vice BB-125mm (150mm opening)

Price
839,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Mechanical precision machine vice
  • Mechanical precision vice
  • Accuracy: within 0.02 mm
  • Base body made from hardened steel, 60 HRC
  • Fixed jaw can be rotated 180°; equipped with a jaw step on the reverse side
  • Supplied with stop, clamping claws, 16 x 16 mm slot nuts and chuck key

Mechanical precision machine vice
  • Mechanical precision vice
  • Accuracy: within 0.02 mm
  • Base body made from hardened steel, 60 HRC
  • Fixed jaw can be rotated 180°; equipped with a jaw step on the reverse side
  • Supplied with stop, clamping claws, 16 x 16 mm slot nuts and chuck key

Article no./ATORN no.
4602000125
Packaging unit
1
Catalogue page

Technical characteristics

Base body dimension 345 x 95 x 40 mm
Base body dimension 345 x 95 x 40 mm
Clamping width 150 mm
Clamping width 150 mm
Groove width 16 mm
Groove width 16 mm
Jaw height 40 mm
Jaw height 40 mm
Jaw width 125 mm
Jaw width 125 mm
Length, open 410 mm
Length, open 410 mm
Weight 12,9 kg
Weight 12,9 kg
