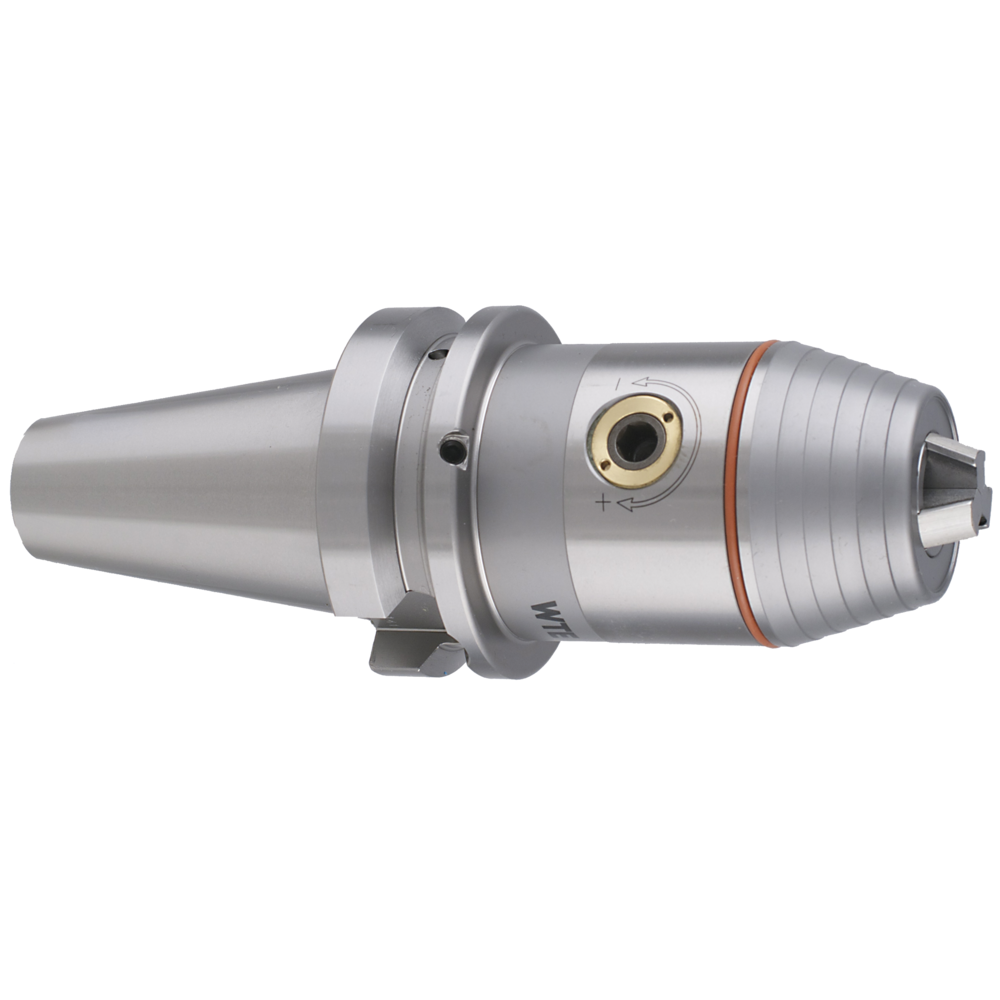

NC short drill chuck MAS403ADB BT40, 0,5-13mm with spur gear system

NC short drill chuck MAS403ADB BT40, 0,5-13mm with spur gear system
NC short drill chuck MAS403ADB BT40, 0,5-13mm with spur gear system NC short drill chuck MAS403ADB BT40, 0,5-13mm with spur gear system
Price:
360,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
NC short drill chuck with spur gear system
  • Clamping via spur gear system
  • True running accuracy 0.02 mm
  • High clamping force
  • Short clamping and retrofitting times
  • Very short design
  • Suitable for clockwise and anti-clockwise rotation
  • Further DIN versions available on request
  • Pre-balanced to G 6.3 / 25,000 rpm
  • Max. permitted rotational speed with balanced tool 35,000 rpm

MAS 403 BT - type AD/AF
NC short drill chuck with spur gear system
  • Clamping via spur gear system
  • True running accuracy 0.02 mm
  • High clamping force
  • Short clamping and retrofitting times
  • Very short design
  • Suitable for clockwise and anti-clockwise rotation
  • Further DIN versions available on request
  • Pre-balanced to G 6.3 / 25,000 rpm
  • Max. permitted rotational speed with balanced tool 35,000 rpm

MAS 403 BT - type AD/AF
Article no./ATORN no.
4410074013
Vendor Article no.
30336064
Packaging unit
1
Catalogue page
KS-1175

Technical characteristics

A 98 mm
A 98 mm
Clamping range 0,5 - 13 mm
Clamping range 0,5 - 13 mm
D 50 mm
D 50 mm
Max. tightening torque 20 N·m
Max. tightening torque 20 N·m
Retaining force 80 N
Retaining force 80 N
Shank BT 40
Shank BT 40
True running accuracy 0,02 mm
True running accuracy 0,02 mm
Wr. width 6 mm
Wr. width 6 mm
