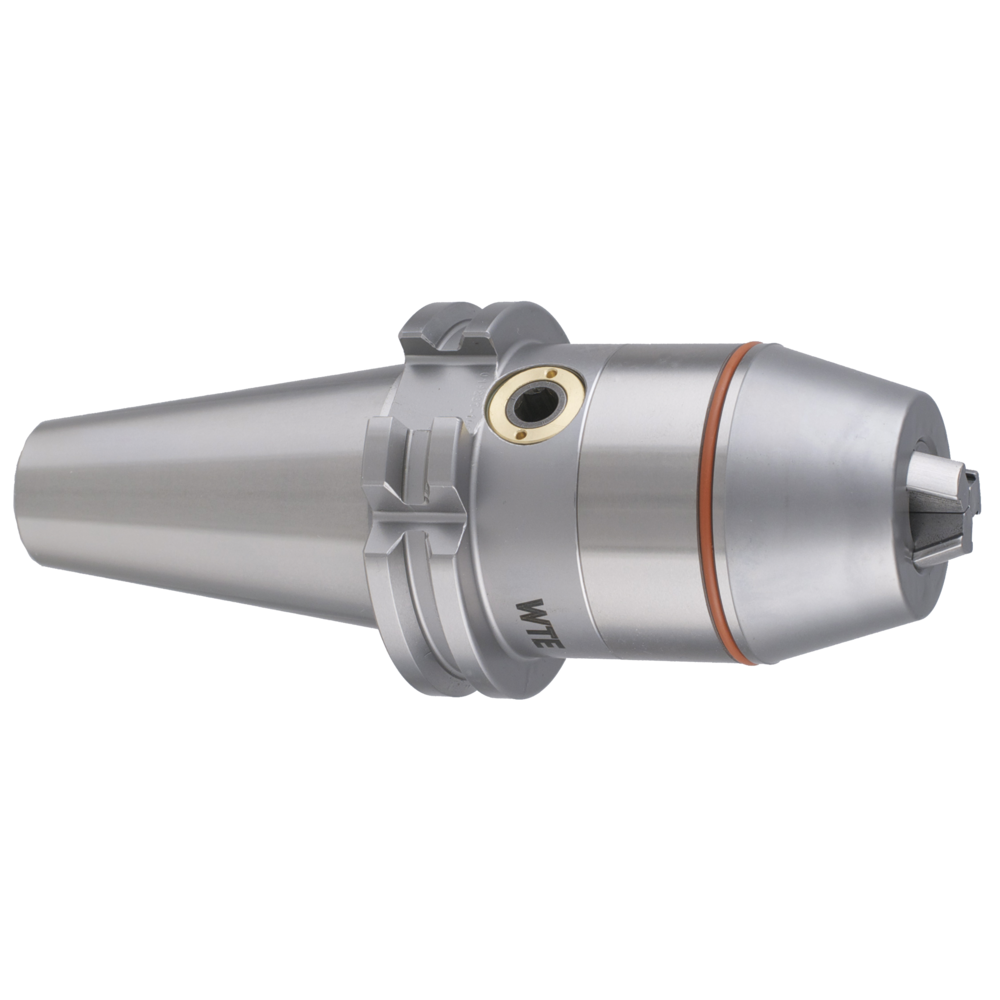

NC short drill chuck DIN69871A SK40, 0,5-13mm with spur gear system

NC short drill chuck DIN69871A SK40, 0,5-13mm with spur gear system
NC short drill chuck DIN69871A SK40, 0,5-13mm with spur gear system NC short drill chuck DIN69871A SK40, 0,5-13mm with spur gear system
Price:
318,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

NC short drill chuck with spur gear system
  • Clamping via spur gear system
  • True running accuracy 0.02 mm
  • High clamping force
  • Short clamping and retrofitting times
  • Very short design
  • Suitable for clockwise and anti-clockwise rotation
  • Further DIN versions available on request
  • Pre-balanced to G 6.3 / 25,000 rpm
  • Max. permitted rotational speed with balanced tool 35,000 rpm

DIN ISO 7388-1 / DIN 69871
NC short drill chuck with spur gear system
  • Clamping via spur gear system
  • True running accuracy 0.02 mm
  • High clamping force
  • Short clamping and retrofitting times
  • Very short design
  • Suitable for clockwise and anti-clockwise rotation
  • Further DIN versions available on request
  • Pre-balanced to G 6.3 / 25,000 rpm
  • Max. permitted rotational speed with balanced tool 35,000 rpm

DIN ISO 7388-1 / DIN 69871
Article no./ATORN no.
4410034013
Vendor Article no.
30335953
Packaging unit
1
Catalogue page
KS-1175

Technical characteristics

A 90 mm
A 90 mm
Clamping range 0,5 - 13 mm
Clamping range 0,5 - 13 mm
D 50 mm
D 50 mm
Design Type A
Design Type A
Max. tightening torque 20 N·m
Max. tightening torque 20 N·m
Retaining force 80 N
Retaining force 80 N
Shank SK 40
Shank SK 40
True running accuracy 0,02 mm
True running accuracy 0,02 mm
Wr. width 6 mm
Wr. width 6 mm
Catalogue page Download
