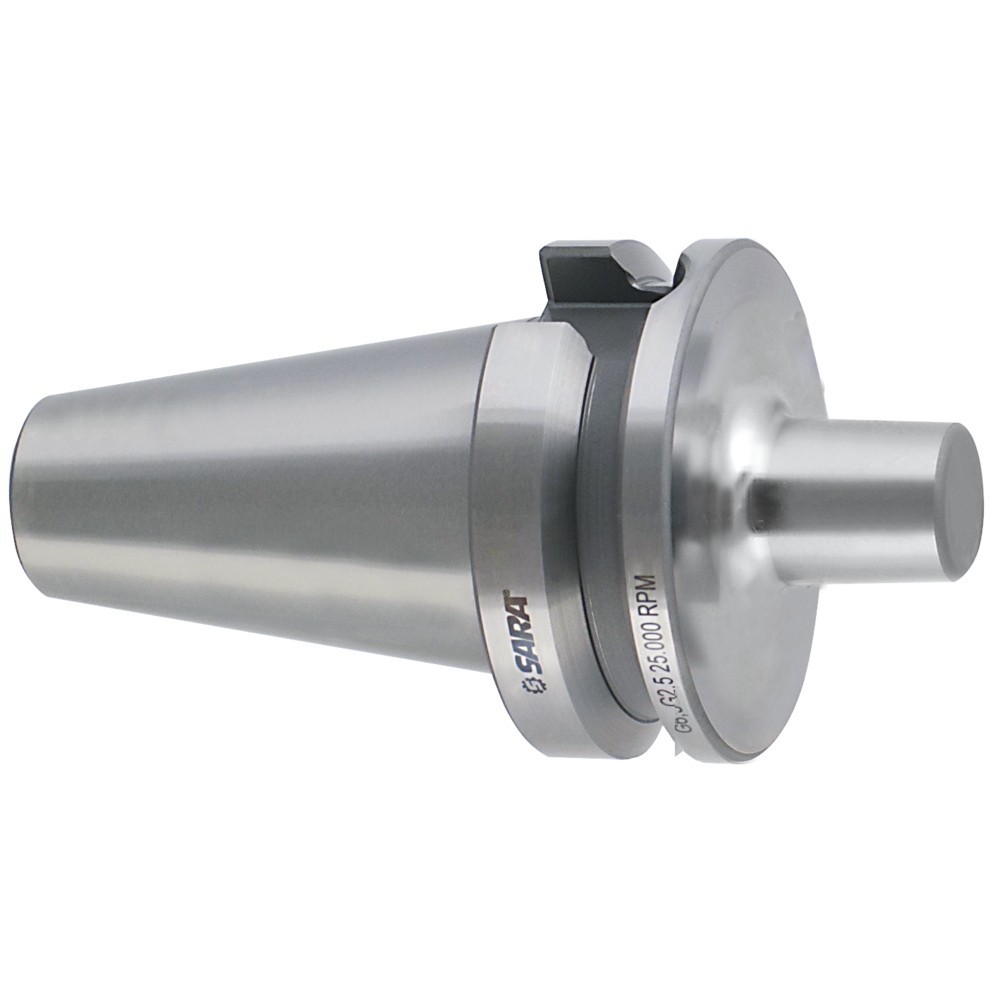

Drill chuck holding fixture MAS403 BT40, B12 DIN238 JIS B 6339 A=32mm

Drill chuck holding fixture MAS403 BT40, B12 DIN238 JIS B 6339 A=32mm
Drill chuck holding fixture MAS403 BT40, B12 DIN238 JIS B 6339 A=32mm Drill chuck holding fixture MAS403 BT40, B12 DIN238 JIS B 6339 A=32mm
Price
50,80 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

Drill chuck holding fixtures
  • Without drill chuck
  • Alloyed case-hardened steel with a core tensile strength of min. 800 N/mm2
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
  • Pre-balanced to G 6.3 / 15,000 rpm
  • Accuracy: Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • SK 30 holding fixtures available on request

JIS B 6339 (MAS 403 BT) A
Drill chuck holding fixtures
  • Without drill chuck
  • Alloyed case-hardened steel with a core tensile strength of min. 800 N/mm2
  • Case-hardened to HRC 60 ± 2 (HV 700 ± 50), case depth 0.8 mm ± 0.2 mm, burnished
  • Pre-balanced to G 6.3 / 15,000 rpm
  • Accuracy: Taper angle tolerance quality < AT3 in accordance with DIN 7187 and DIN 2080
  • Max. true running accuracy < 0.005 mm
  • SK 30 holding fixtures available on request

JIS B 6339 (MAS 403 BT) A
Article no./ATORN no.
4361074012 / 22661327
Packaging unit
1
Catalogue page
KS-1178

Technical characteristics

A 32 mm
A 32 mm
DIN DIN 238
DIN DIN 238
L 18,5 mm
L 18 mm
Shank BT 40
Shank BT 40
Standard constructional dimensions DIN DIN 238
Standard constructional dimensions DIN DIN 238
Taper support B 12
Taper support B 12
