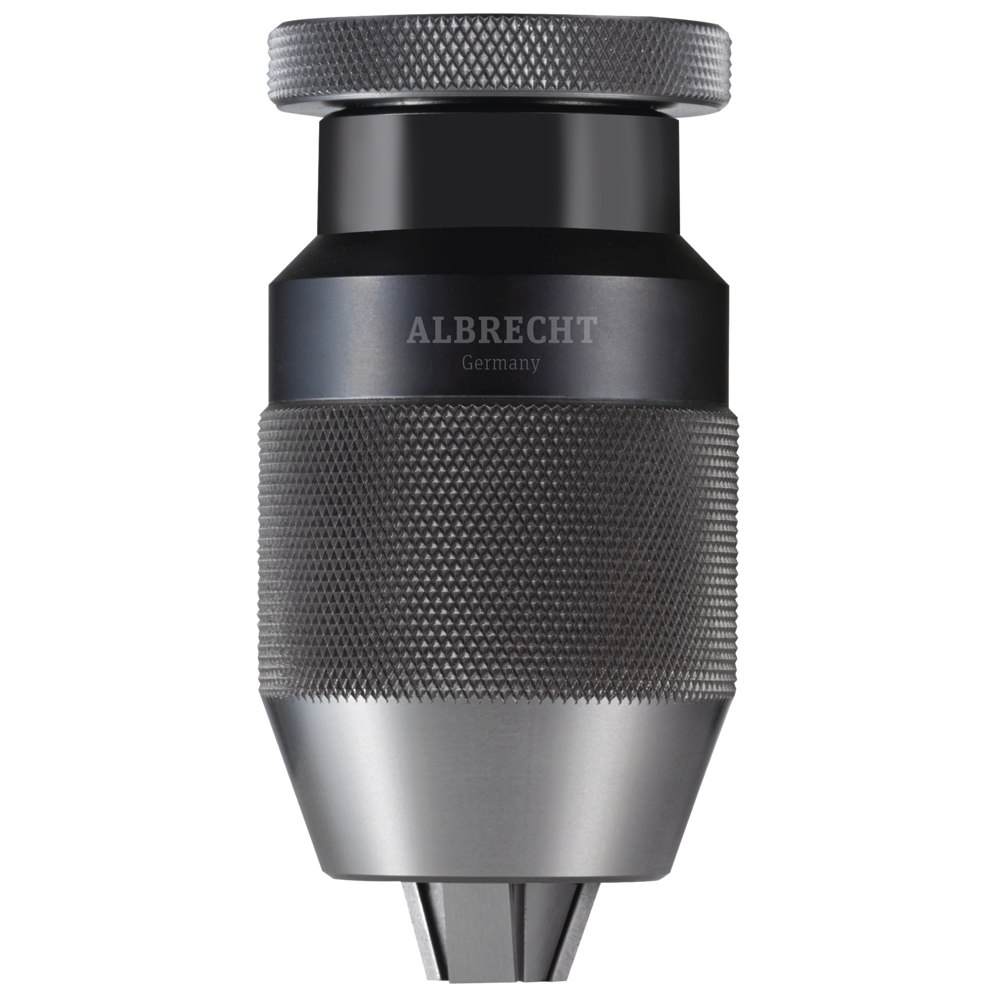

Drill chuck SBF, 0,2-1,5mm B06

Drill chuck SBF, 0,2-1,5mm B06
Drill chuck SBF, 0,2-1,5mm B06 Drill chuck SBF, 0,2-1,5mm B06 Drill chuck SBF, 0,2-1,5mm B06
Price:
252,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Precision drill chuck SBF
  • Self-clamping allows for simple and quick operation
  • Easy to clamp and open by hand (no key required)
  • All wearing parts case-hardened, ground and replaceable
  • For clockwise rotation
  • Internal taper DIN ISO 239-B
  • Further sizes, versions with fastening screw thread UNF and with diamond-coated clamping jaws available on request

DIN 239 B..
  • * = DIN 239 B18 with short taper support

Precision drill chuck SBF
  • Self-clamping allows for simple and quick operation
  • Easy to clamp and open by hand (no key required)
  • All wearing parts case-hardened, ground and replaceable
  • For clockwise rotation
  • Internal taper DIN ISO 239-B
  • Further sizes, versions with fastening screw thread UNF and with diamond-coated clamping jaws available on request

DIN 239 B..
  • * = DIN 239 B18 with short taper support

Article no./ATORN no.
4001050000
Vendor Article no.
100 0015 B06 0
Packaging unit
1
Catalogue page
KS-1171

Technical characteristics

Clamping range 0,2 - 1,5 mm
Clamping range 0,2 - 1,5 mm
D 19 mm
D 19 mm
L1 35 mm
L1 35 mm
L2 37 mm
L2 37 mm
Taper support B 06
Taper support B 06
