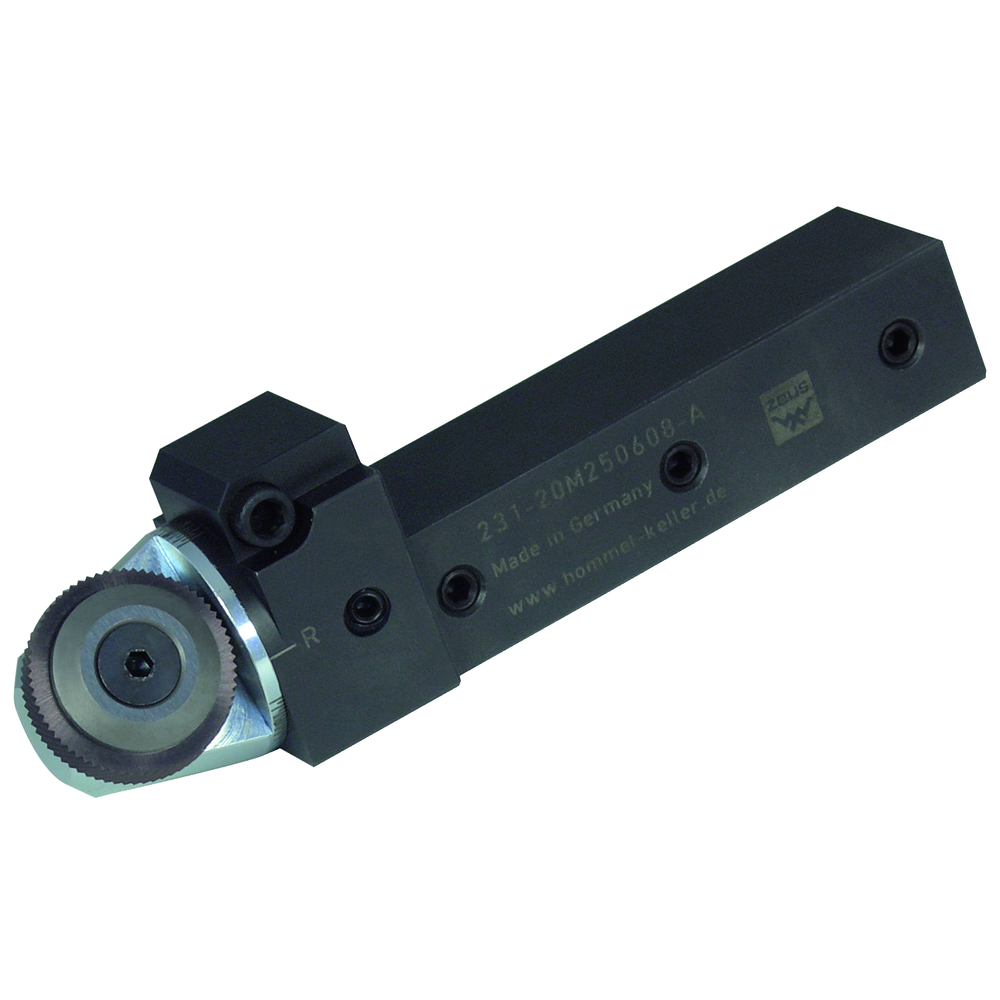

Knurl cutting tool for 1 knurling wheel, 25 x 6 x 8 mm

• Use: Knurl cutting, workpiece knurl profile according to DIN 82: RAA
• Knurling wheels: RAA = 1 x BR 30° for right-hand use, RAA = 1 x BL 30° for left-hand use
• Machine type: conventional and CNC automated lathes, centre height integrated in the tool
• Modular design, tool can be used universally as a right-hand or left-hand version
• Quick retooling by simply removing and turning the knurling head, precise axis position after every reassembly thanks to 3-point support
• With position indicator for optimum initial positioning
• Fine adjustment of the knurling head via threaded spindle with scale
• Precise control for axially parallel knurling thanks to adjustable knurling head
• Clearance angle set using grub screws in the shank
• Special surface hardening for increased wear resistance
• Supplied without knurling wheel
