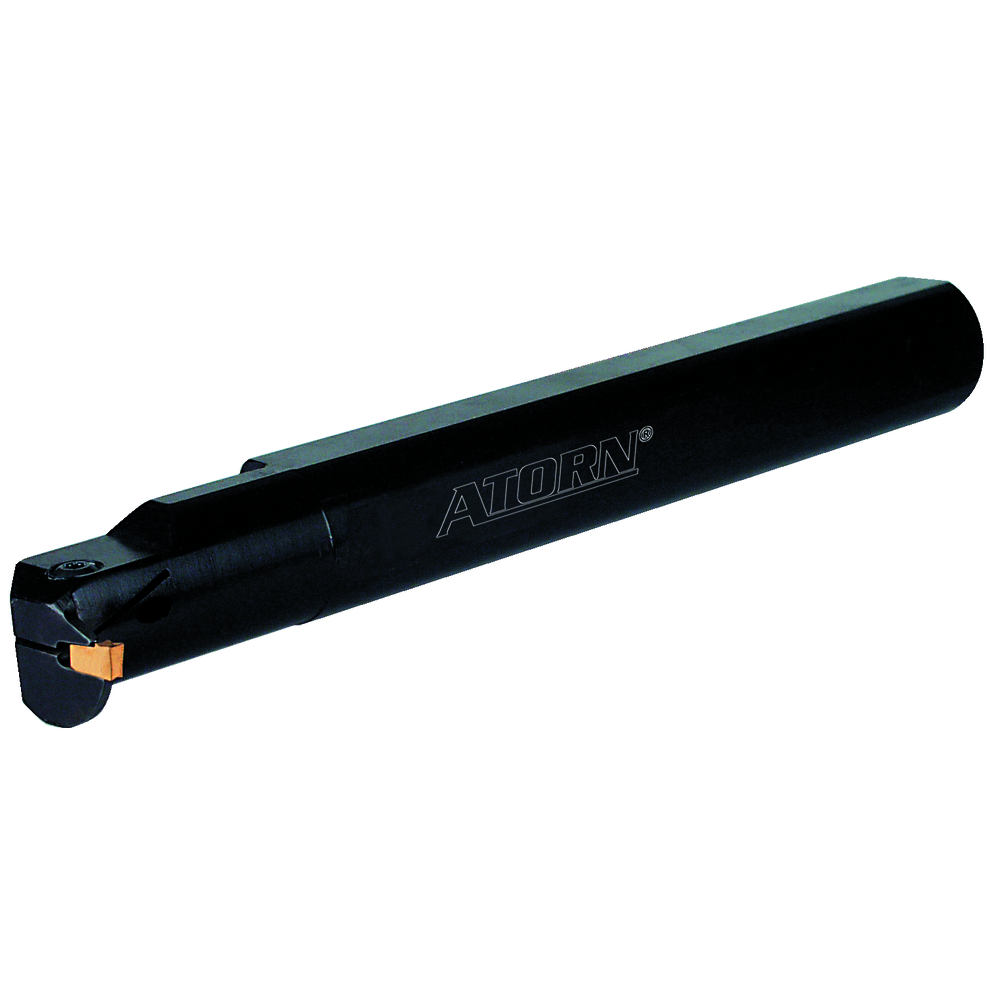

Boring bar AHR 619 25C 2 (internal turning and grooving) W=2,2mm, with IC

Boring bar AHR 619 25C 2 (internal turning and grooving) W=2,2mm, with IC
Boring bar AHR 619 25C 2 (internal turning and grooving) W=2,2mm, with IC Boring bar AHR 619 25C 2 (internal turning and grooving) W=2,2mm, with IC Boring bar AHR 619 25C 2 (internal turning and grooving) W=2,2mm, with IC
Price:
259,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Boring bars A-CUT
  • AHR/L 619
  • Internal turning and grooving
  • With internal coolant supply
  • For use with type AIMC, AIMJ and AIPV recessing inserts
  • Note: Type AIMC and AIMJ recessing inserts should only be used for grooving.
  • Sealing thread: R 1/8”
  • When using the seal, the boring bar can be shortened by max. 100 mm.
  • Supplied with clamping screw, T20 Torx key and seal, without recessing inserts

AHR/L 619
Article no./ATORN no.
3540082502 / 11280090
Packaging unit
5
Catalogue page

Technical characteristics

Bohrungsdurchmesser min. 35 mm
C 0,3 mm
Coolant design Internal axial
D 25 mm
Design Right-hand AHR 619
Designation AHR/L 619 25C 2
Einstechtiefe 6,5 mm
Eintauchtiefe 51 mm
F 20 mm
Geeignet für Schneideinsatzbreite 2,2 mm
H 11,5 mm
ISO-Bezeichnung 25C 2,2
Klemmschraubenbezeichnung SR 76-1021
L1 200 mm
L2 51 mm
Länge 200 mm
Min. hole Ø 35,0 mm
Programmiermaß 20 mm
Schaftdurchmesser 25 mm
Spannflächenhöhe 11,5 mm
suitable clamping screw SR 76-1021
t max. 6,5 mm
Verstellmaß über Mitte 0,3 mm
W 1.85 to 2.50 mm
