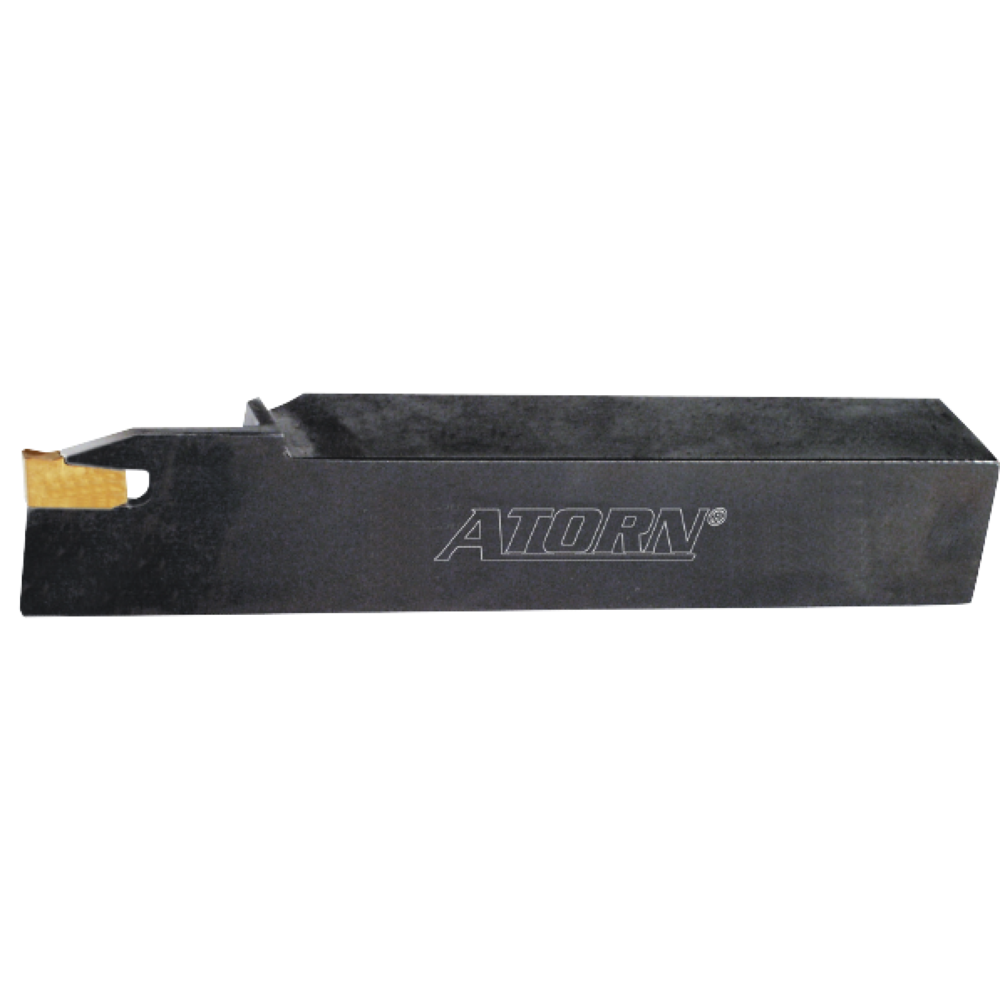

Tool holder AHR 201 2525 3 (parting-off and grooving) W=3,1mm, max. 56mm

Tool holder AHR 201 2525 3 (parting-off and grooving) W=3,1mm, max. 56mm
Tool holder AHR 201 2525 3 (parting-off and grooving) W=3,1mm, max. 56mm Tool holder AHR 201 2525 3 (parting-off and grooving) W=3,1mm, max. 56mm Tool holder AHR 201 2525 3 (parting-off and grooving) W=3,1mm, max. 56mm

We charge a material cost surcharge of 6,90% on this product.

Price
170,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder

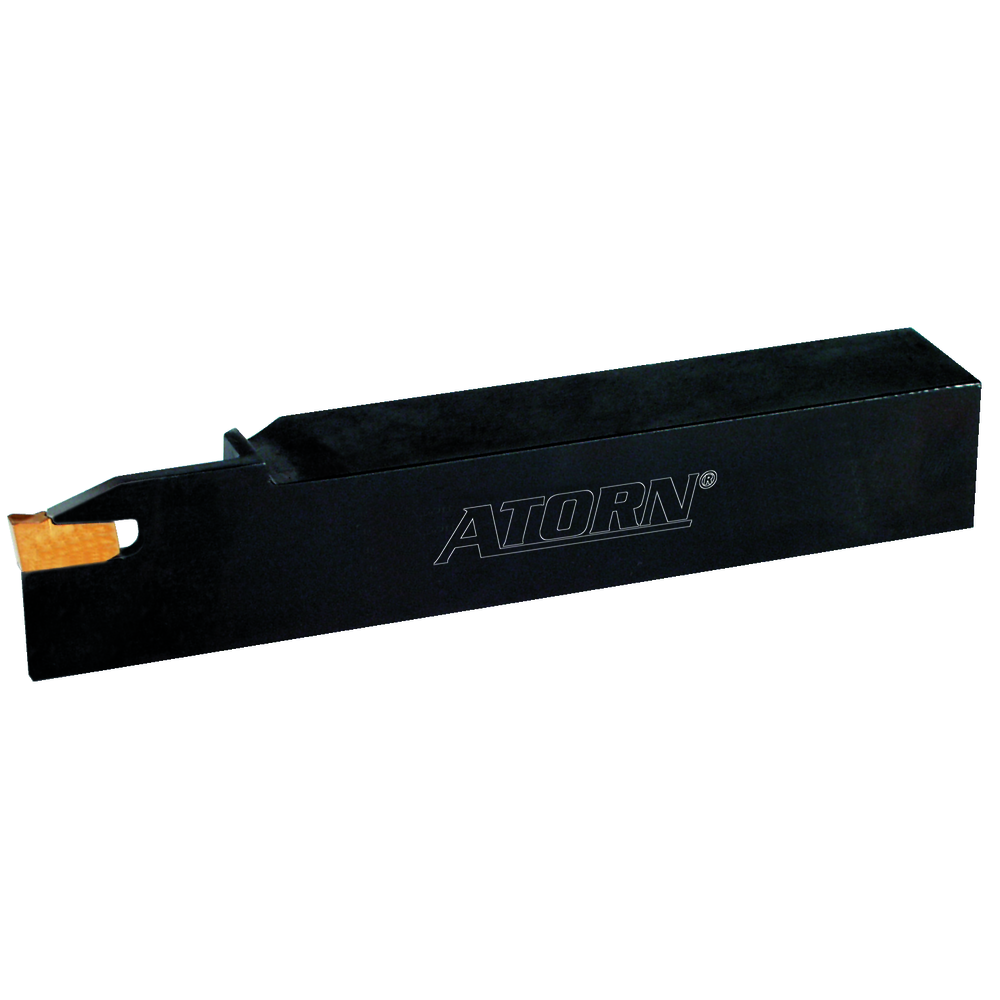

A-CUT parting-off and grooving tool holder
  • AHR/L 201
  • Parting-off and grooving
  • For use with type AIMC, AIMJ and AIPV recessing inserts
  • Note: These tool holders should not be used for turning operations (for this purpose, select tool holder type AHR/L 211),
  • Supplied with ejector, without recessing inserts

AHR/L 201
Article no./ATORN no.
3540022503 / 11280047
Packaging unit
1
Catalogue page

Technical characteristics

B 25 mm
Design Right-hand AHR 201
Designation AHR/L 201 2525 3
F 23,8 mm
Geeignet für Schneideinsatzbreite 3,1 mm
H 25 mm
ISO-Bezeichnung AH R/L 201 2525 3,1
L 150 mm
Länge 150 mm
max. workpiece Ø D max. 56,0 mm
Programmiermaß 23,8 mm
Schaftbreite 25 mm
Schafthöhe 25 mm
W 2.70 to 3.90 mm
Werkstückdurchmesser max. 56 mm
