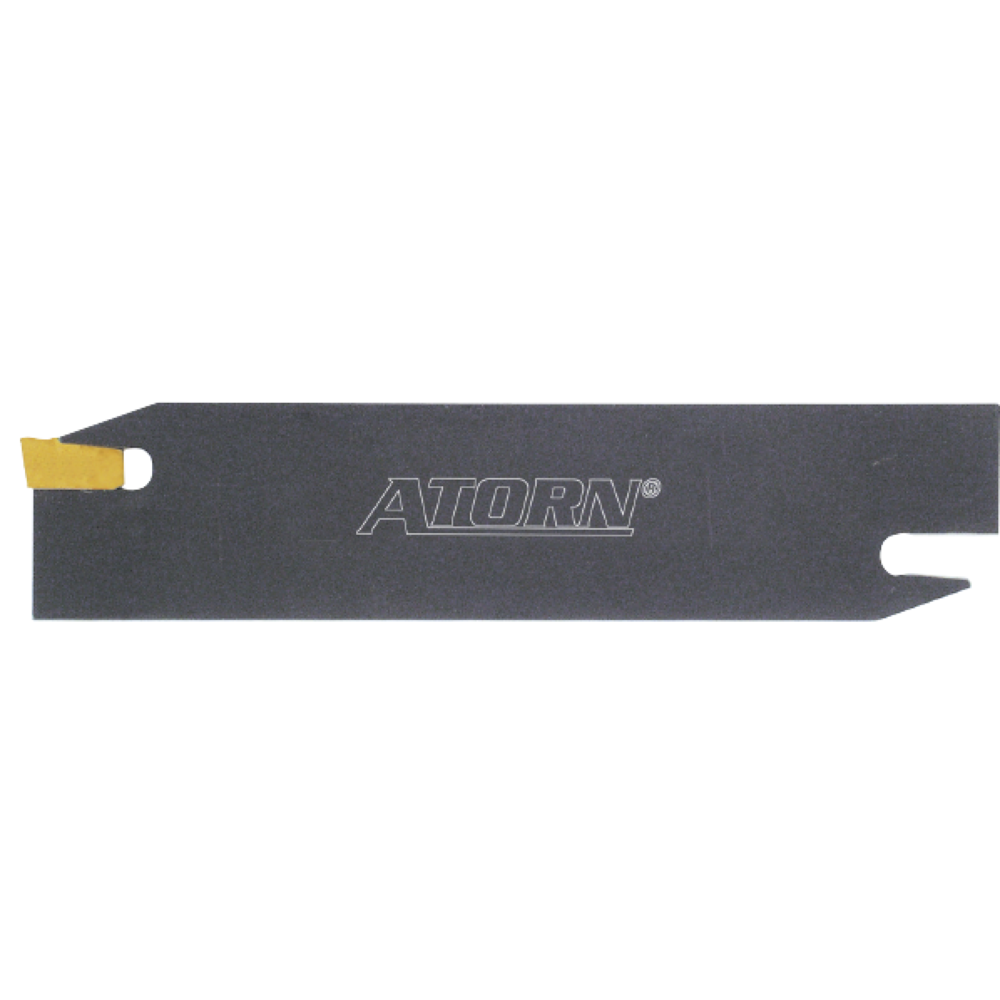

A-CUT recessing blade
  • AH 101
  • Parting-off and deep grooving
  • For use with recessing inserts of type AIMC, AIMJ and AIPV
  • Note: Tool holders should not be used for turning or copy turning operations.
  • Supplied with ejector, without recessing inserts
  • *) A = 1.2 mm only in relation to the recess depth. The total thickness is 1.6 mm
  • **) A = 1.6 mm only in relation to the recess depth. The total thickness is 2.4 mm

AH 101
Article no./ATORN no.
3540012603 / 11280024
Packaging unit
1
Catalogue page

Technical characteristics

A 2,4 mm
B 26 mm
Designation AH 101 26 3
Geeignet für Schneideinsatzbreite 3,1 mm
Geeignet für Spannschäfte ATBR 25-6 | ATBN 16-5 | ATBN 19-5 | ATBN 20-5
H 21,4 mm
ISO-Bezeichnung 26 3,1
L 110 mm
Länge 110 mm
max. workpiece Ø D max. 75,0 mm
Schafthöhe 26 mm
Schneidenhöhe 21,4 mm
Stechhalterbreite 2,4 mm
suitable clamping shanks AGTBN 16-5/AGTBN 19-5/AGTBN 20-5
W 2.70 to 3.90 mm
Werkstückdurchmesser max. 75 mm
