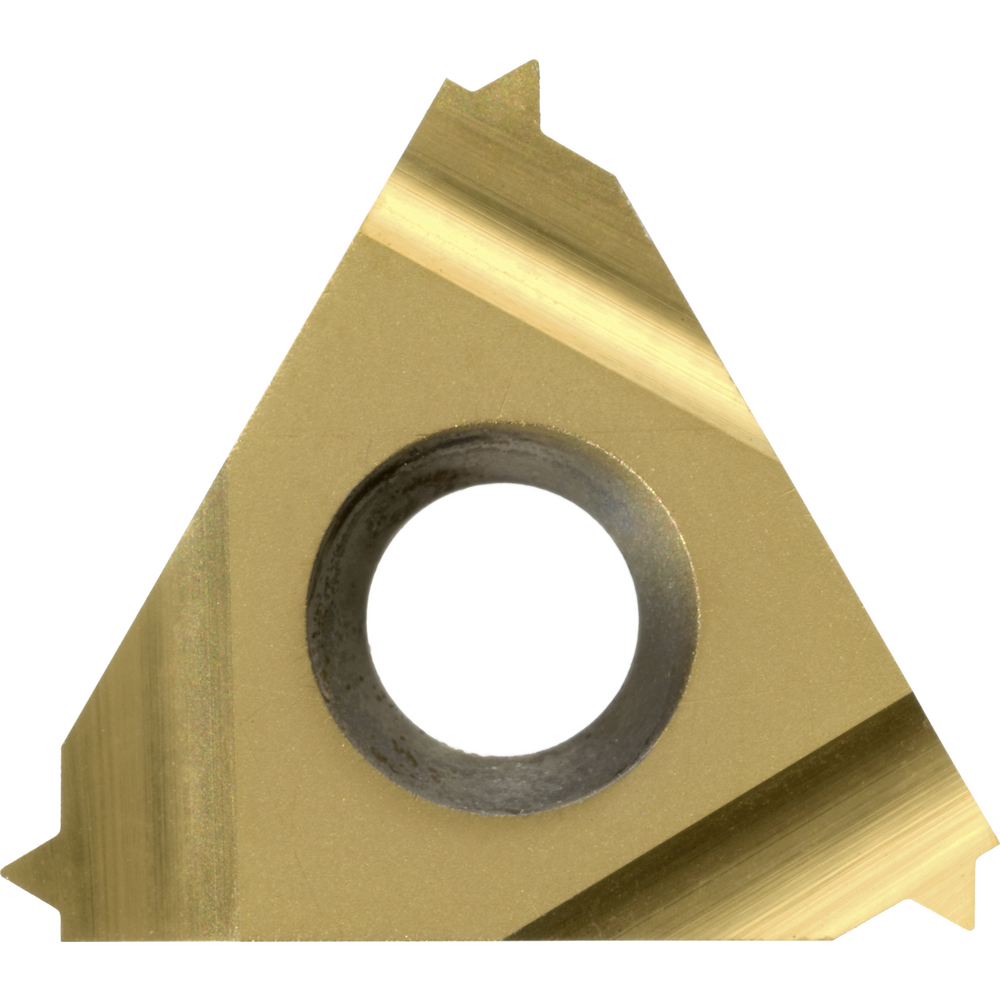

Threading insert full profile 60° 11IL 0,35 ISO HC5615

Threading insert full profile 60° 11IL 0,35 ISO HC5615
Threading insert full profile 60° 11IL 0,35 ISO HC5615 Threading insert full profile 60° 11IL 0,35 ISO HC5615 Threading insert full profile 60° 11IL 0,35 ISO HC5615
Price
22,10 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Thread cutting inserts, full profile, ISO, IL
  • Metric, ISO full profile
  • Note: Insert types 22 U and 27 U in pitches of 5.5-8.0 mm are identical to the right-hand version (see full profile ISO, IR)

Full profile, ISO internal left-hand, ground
Article no./ATORN no.
3430100135 / 11941240
Packaging unit
10
Catalogue page
KS-0974
Cutting values
SW-1102

Technical characteristics

Carbide type HC5615
Cutting data Cutting angle Information - yes
Design HC5615
Designation 11 IL 0,35ISO
ISO designation 11 (IR/IL) 0,35 ISO
ISO H 3
ISO K 1
ISO M 1
ISO N 1
ISO P 1
ISO S 3
L 11 mm
Min./max. Vc in cast iron 70-80 m/min
Min./max. Vc in non-ferrous metals 200-600 m/min
Min./max. Vc in stainless steel 70-75 m/min
Min./max. Vc in steel 75-110 m/min
Pitch 0,35 mm
Vc in Edelstahl max. 75 m/min
Vc in Edelstahl min. 70 m/min
Vc in Guss max. 80 m/min
Vc in Guss min. 70 m/min
Vc in NE-Metalle max. 600 m/min
Vc in NE-Metalle min. 200 m/min
Vc in Stahl max. 110 m/min
Vc in Stahl min. 75 m/min
