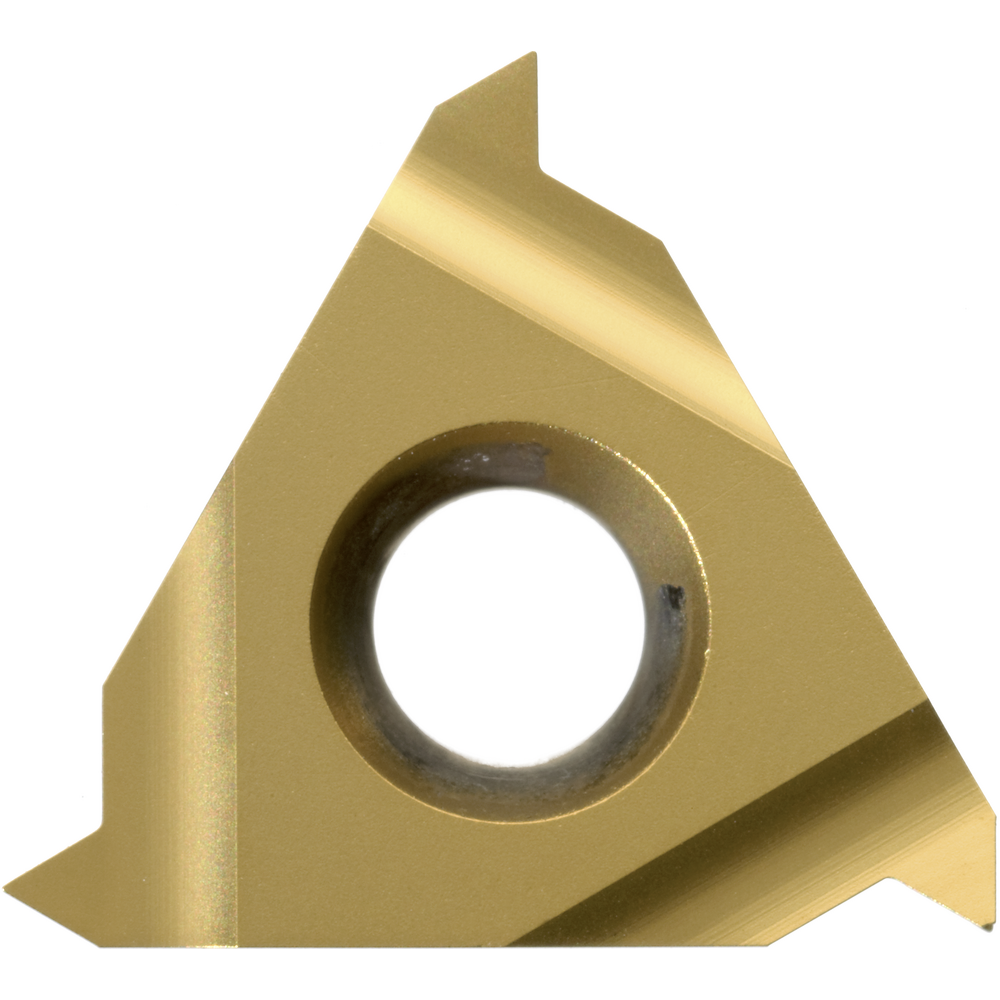

Threading insert partial profile 55° 11ER A55 HC5615 (48-16 thread/inch)

Threading insert partial profile 55° 11ER A55 HC5615 (48-16 thread/inch)
Threading insert partial profile 55° 11ER A55 HC5615 (48-16 thread/inch) Threading insert partial profile 55° 11ER A55 HC5615 (48-16 thread/inch) Threading insert partial profile 55° 11ER A55 HC5615 (48-16 thread/inch)
Price
22,80 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Thread cutting inserts, partial profile, 55°
  • Partial profile, 55°
  • Inserts available in left-hand version on request

Partial profile, 55° external right-hand, ground
Article no./ATORN no.
3424010135 / 11940952
Packaging unit
10
Catalogue page
KS-0970
Cutting values
SW-1100

Technical characteristics

Carbide type HC5615
Design HC 5615
Designation 11 ER A55
Gangzahl pro Zoll max. 16
Gangzahl pro Zoll min. 48
ISO designation 11 (ER/EL) A55
ISO H 3
ISO K 1
ISO M 1
ISO N 1
ISO P 1
ISO S 3
L 11 mm
Min./max. number of thread starts per inch 48-16
Min./max. Vc in cast iron 70-80 m/min
Min./max. Vc in non-ferrous metals 200-600 m/min
Min./max. Vc in stainless steel 70-75 m/min
Min./max. Vc in steel 75-110 m/min
Vc in Edelstahl max. 75 m/min
Vc in Edelstahl min. 70 m/min
Vc in Guss max. 80 m/min
Vc in Guss min. 70 m/min
Vc in NE-Metalle max. 600 m/min
Vc in NE-Metalle min. 200 m/min
Vc in Stahl max. 110 m/min
Vc in Stahl min. 75 m/min
