Threading insert partial profile 60° 11IR A60 HC5615 (pitch 0,5-1,5)

Threading insert partial profile 60° 11IR A60 HC5615 (pitch 0,5-1,5)
Threading insert partial profile 60° 11IR A60 HC5615 (pitch 0,5-1,5) Threading insert partial profile 60° 11IR A60 HC5615 (pitch 0,5-1,5) Threading insert partial profile 60° 11IR A60 HC5615 (pitch 0,5-1,5)
Price
19,60 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 18:00 - delivered tomorrow.

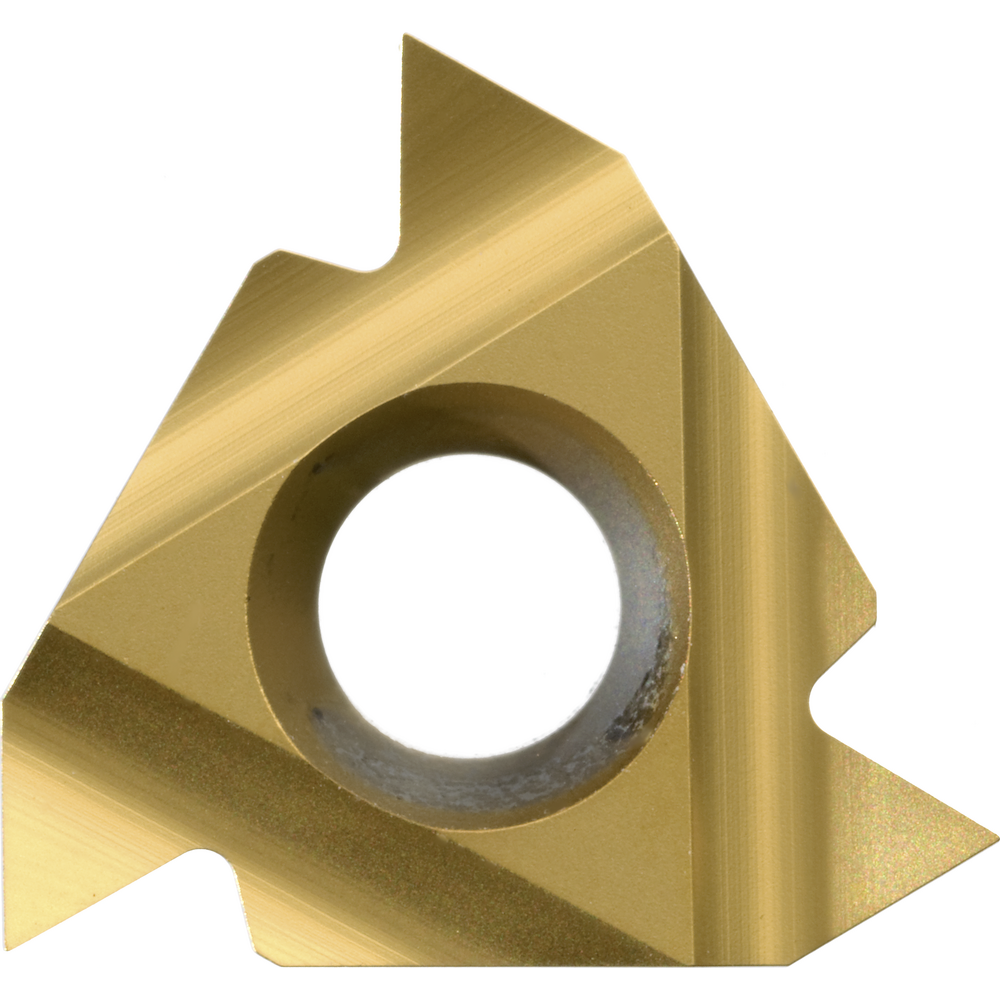

Thread cutting inserts, partial profile, 60°
  • Partial profile, 60°
  • Inserts available in left-hand version on request

Partial profile, 60º internal right-hand, ground
Article no./ATORN no.
3422010135 / 11940767
Packaging unit
2
Catalogue page
KS-0968
Cutting values
SW-1100

Technical characteristics

Carbide type HC5615
Cutting data Cutting angle Information - yes
Design HC 5615
Designation 11 IR A60
ISO designation 11 (IR/IL) A60
ISO H 3
ISO K 1
ISO M 1
ISO N 1
ISO P 1
ISO S 3
L 11 mm
Min./max. pitch 0,5-1,5 mm
Min./max. Vc in cast iron 70-80 m/min
Min./max. Vc in non-ferrous metals 200-600 m/min
Min./max. Vc in stainless steel 70-75 m/min
Min./max. Vc in steel 75-110 m/min
Steigung max. 1,5 mm
Steigung min. 0,5 mm
Vc in Edelstahl max. 75 m/min
Vc in Edelstahl min. 70 m/min
Vc in Guss max. 80 m/min
Vc in Guss min. 70 m/min
Vc in NE-Metalle max. 600 m/min
Vc in NE-Metalle min. 200 m/min
Vc in Stahl max. 110 m/min
Vc in Stahl min. 75 m/min
