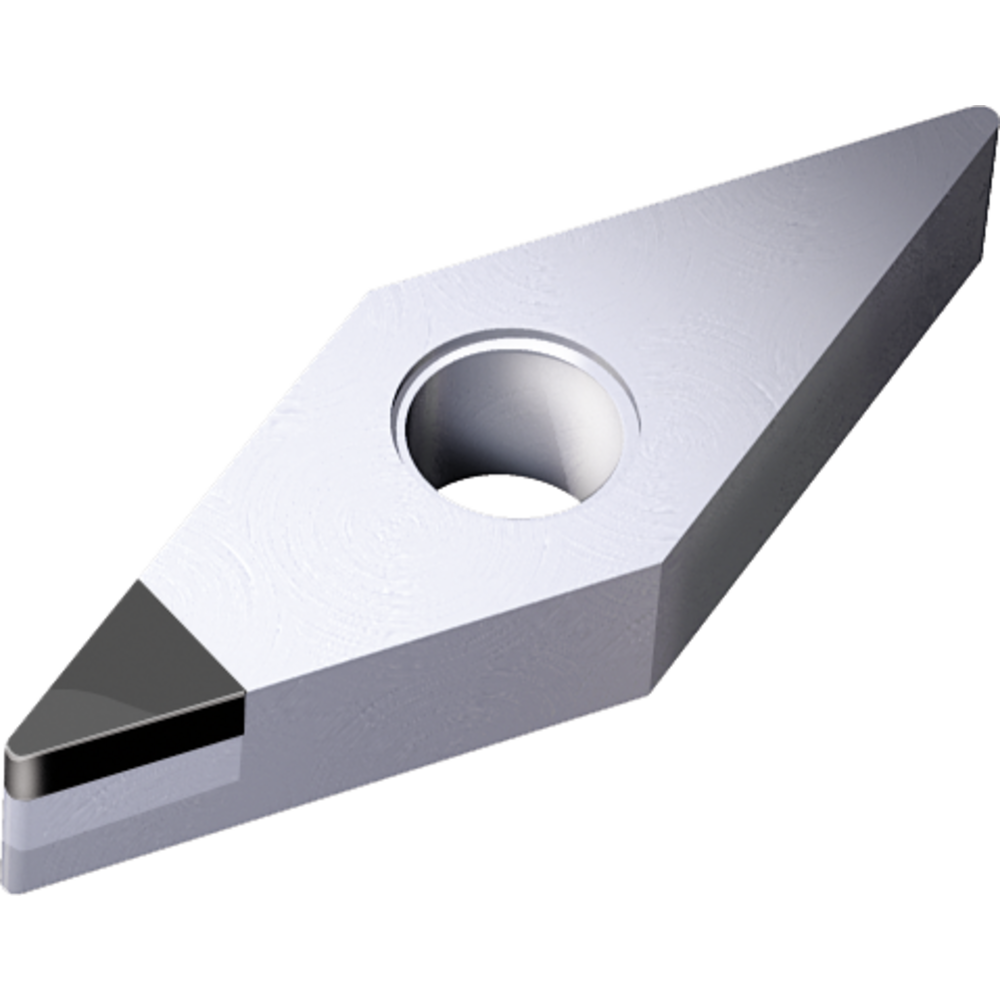

CBN turning insert VNGA 160404 ABC10/F sharp-edged

Price
60,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
PKD and CBN ISO indexable cutting inserts
  • Ultra-hard cutting materials, single tip
  • CBN, cubic boron nitride,quality ABC10 (ISO K01-K25, S01-S15)Polycrystalline CBN type with a high CBN content and carbide base, fine grain, very high wear resistance in the HSC range with GG25 (super-finish), long service life in the case of superalloys
    Material: Grey cast iron (GG25), superalloys.
    Note: For the chamfered version, the type ABC10 includes the protective chamfer "G" as standard
  • CBN, cubic boron nitride, quality ABC15 (ISO K01-K25, S01-S20)Polycrystalline CBN grade with high CBN content and a superfine grain carbide base, very high wear resistance in HSC applications with GGG-40 (super-finish), long service life with superalloys and sintered steel
    Material: Spheroidal graphite cast iron (GGG-40), sintered steels, superalloys
    Note: For the chamfered version, the type ABC15 includes the protective chamfer "C" as standard
  • CBN, cubic boron nitride, quality ABC25 (ISO K05-K20, S05-S25, H01-H25)Polycrystalline CBN type with a low CBN content and carbide base, fine grain, very high wear resistance, pressure resistance and toughness in hard turning (HRC 52-65) in the smooth to medium interrupted vertical section.
    Material: Hard turning, dry, HRC 52 - 65
    Note: For the chamfered version, the type ABC25 includes the protective chamfer "F" as standard
  • PCD, polycrystalline diamond, quality ADC (ISO N05-N40)Polycrystalline diamond with carbide base, fine grain, good cutting edge sharpness and low cutting pressure with narrow tolerances. High degree of wear resistance and toughness.
    Material: Finishing and fine finishing of all non-ferrous metals and non-ferrous materials with a low percentage of abrasive fillers
  • Cutting edge length "m" depends on the cutting radius

VNGA, sharp-edged (A)
Article no./ATORN no.
3968106232 / 11430083
Packaging unit
1
Catalogue page

Technical characteristics

Anzahl Stück pro Paket 2 pc.
ap max. 0,25 mm
ap min. 0,02 mm
ap min./max. 0,02-0,25 mm
Cutting data Cutting angle Information - yes
Design ABC 10/A
Eckenradius 0,4 mm
Eckenradius Wendeschneidplatte ISO 04
F max. 0,25 mm/rev
F min. 0,02 mm/rev
f min./max. 0,02-0,25 mm/U
Freiwinkel 0 °
Freiwinkel Wendeschneidplatte ISO N
Geeignet für Werkstoffgruppe H 3
Geeignet für Werkstoffgruppe K 1
Geeignet für Werkstoffgruppe M 3
Geeignet für Werkstoffgruppe N 3
Geeignet für Werkstoffgruppe P 3
Geeignet für Werkstoffgruppe S 1
ISO designation VNGA 160404
ISO-Code Drehen VNGA 160404
ISO-Norm VNGA
Schneidstoff CBN
Schneidstoffsorte ABC10/A
Spitzenwinkel 35 °
Toleranzklasse Wendeschneidplatte ISO G
Vc in Guss max. 1000 m/min
Vc in Guss min. 800 m/min
Vc in Guss min./max. 800-1000 m/min
Vc in Sonderlegierungen max. 700 m/min
Vc in Sonderlegierungen min. 250 m/min
Vc in Sonderlegierungen min./max. 250-700 m/min
Wendeschneidplattendicke 4,76 mm
Wendeschneidplattendicke ISO 04
Wendeschneidplattenform ISO V
Wendeschneidplattengröße ISO 16
Wendeschneidplattentyp ISO A
