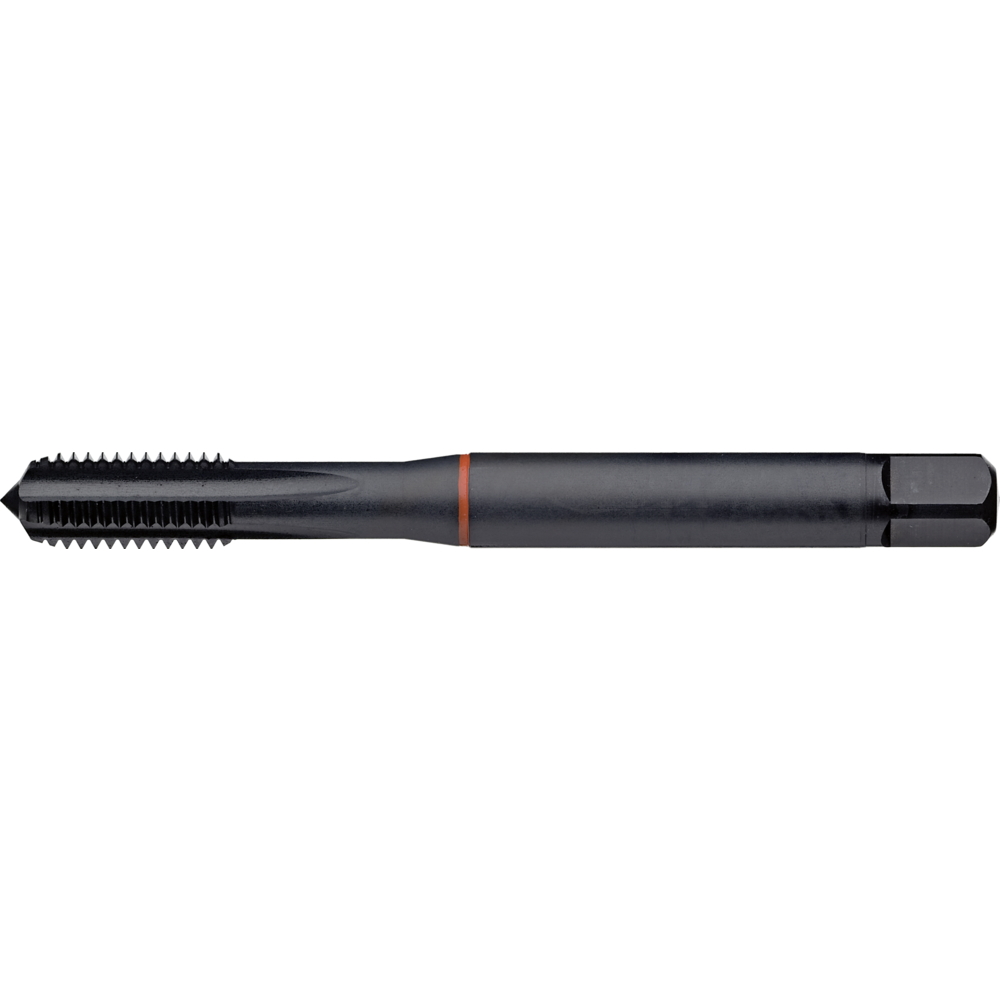

Machine tap HSS-E DIN371C M3 blind/through-hole, nitrided

Machine tap HSS-E DIN371C M3 blind/through-hole, nitrided
Machine tap HSS-E DIN371C M3 blind/through-hole, nitrided Machine tap HSS-E DIN371C M3 blind/through-hole, nitrided
Price:
18,40 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

For cast iron

Machine tap
  • Metric ISO 6HX thread
  • Straight-fluted, without spiral point
  • Form C, 2-3 thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, nitrided
  • For blind-hole and through-hole threads
  • Possible thread depth 3 x D

For cast iron

Machine tap
  • Metric ISO 6HX thread
  • Straight-fluted, without spiral point
  • Form C, 2-3 thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E, nitrided
  • For blind-hole and through-hole threads
  • Possible thread depth 3 x D

Article no./ATORN no.
1351550030 / 10479406
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
C 2,7 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 3 mm
D M3
D M 3 mm
D M3
D1 3,5 mm
D1 3,5 mm
DIN 371
DIN 371
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 2
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
L 56 mm
L 56 mm
L1 10 mm
L1 10 mm
L2 18 mm
L2 18 mm
Max. thread depth 3xD
Max. thread depth 3xD
Nenndurchmesser 3 mm
Passend für Gewinde M2-M24
Pitch 0,5 mm
Pitch 0,5 mm
Surface Nitrided
Surface Nitrided
Tapping hole Ø 2,5 mm
Tapping hole Ø 2,5 mm
Thread M
Thread M
Thread angle 60 °
Thread angle 60 °
Threaded hole type Clearance/blind hole ≤ 3xD
Threaded hole type Clearance/blind hole ≤ 3xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Twist angle 0°
Typ K MAX Control

Usage characteristics

aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass short
brass short
bronze short
bronze short
cast iron GG/GTS
cast iron GG/GTS
cast iron GGG
cast iron GGG
graphite
graphite
plastic
plastic

very suitable
suitable
