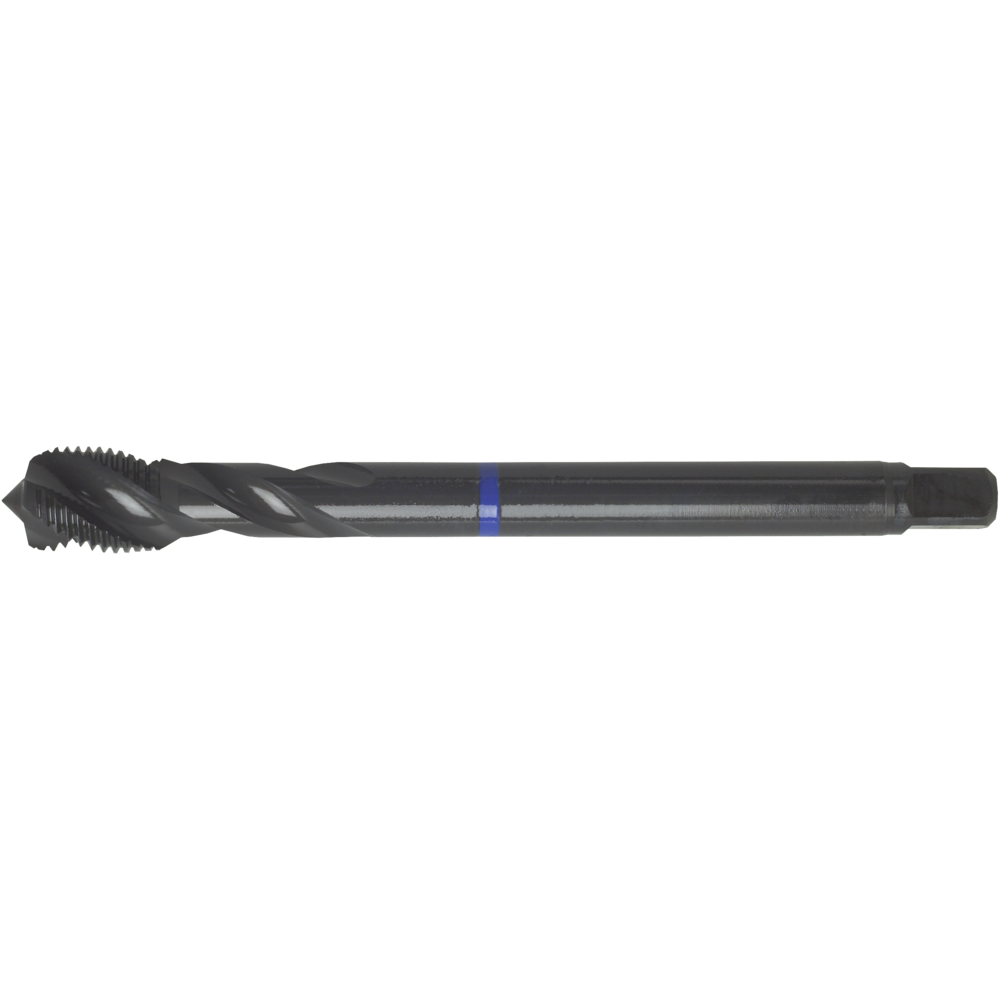

Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread

Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread
Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread Machine tap HSS-E DIN374C 40°, M6x0,75 blind-hole thread
Price:
46,40 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Up to 1000 N/mm²

Machine tap
  • ISO 6H fine-pitch metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated; HSS-E, TiN-coated
  • For blind-hole threads
  • Strong chip removal to the rear
  • Minimal thread relief grinding
  • Possible thread depth 3 x D

Up to 1000 N/mm²

Machine tap
  • ISO 6H fine-pitch metric thread
  • 40°, spiral-fluted
  • Type C, 2-3 thread chamfer
  • Cutting material: HSS-E, vapour-treated; HSS-E, TiN-coated
  • For blind-hole threads
  • Strong chip removal to the rear
  • Minimal thread relief grinding
  • Possible thread depth 3 x D

Article no./ATORN no.
1352850607 / 10471014
Packaging unit
1
Catalogue page
KS-0269
Cutting values
SW-0398

Technical characteristics

C 3,4 mm
C 3,4 mm
Coating uncoated
Coating uncoated
Coolant supply External
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE
Cutting material HSSE
D M 6 mm
D MF6
D MF 6
D1 4,5 mm
D1 4,5 mm
Design Vaporised
Design Vaporised
DIN 374
DIN 374
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 1
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer C
Form/Chamfer C
L 80 mm
L 80 mm
L1 8 mm
L1 8 mm
Max. thread depth 2,5xD
Max. thread depth 2,5xD
Nenndurchmesser 6 mm
Passend für Gewinde MF4-MF30
Pitch 0,75 mm
Pitch 0,75 mm
Surface Vaporised
Surface Vaporised
Tapping hole Ø 5,2 mm
Tapping hole Ø 5,2 mm
Thread MF
Thread MF
Thread angle 60 °
Thread angle 60 °
Threaded hole type Stud hole
Threaded hole type Stud hole
Tolerance of screw taps ISO 2 (6H)
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 40°
Twist angle 40°
Typ P MAX 1000

Usage characteristics

aluminium < 8 % Si
aluminium < 8 % Si
aluminium ≥ 8 % Si
aluminium ≥ 8 % Si
brass long
brass long
brass short
brass short
bronze long
bronze long
bronze short
bronze short
cast iron GGG
cast iron GGG
graphite
graphite
plastic
plastic
stainless steel austenitic
stainless steel austenitic
stainless steel ferrit./martens.
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1000 N/mm²
steel < 700 N/mm²
steel < 700 N/mm²

very suitable
suitable
