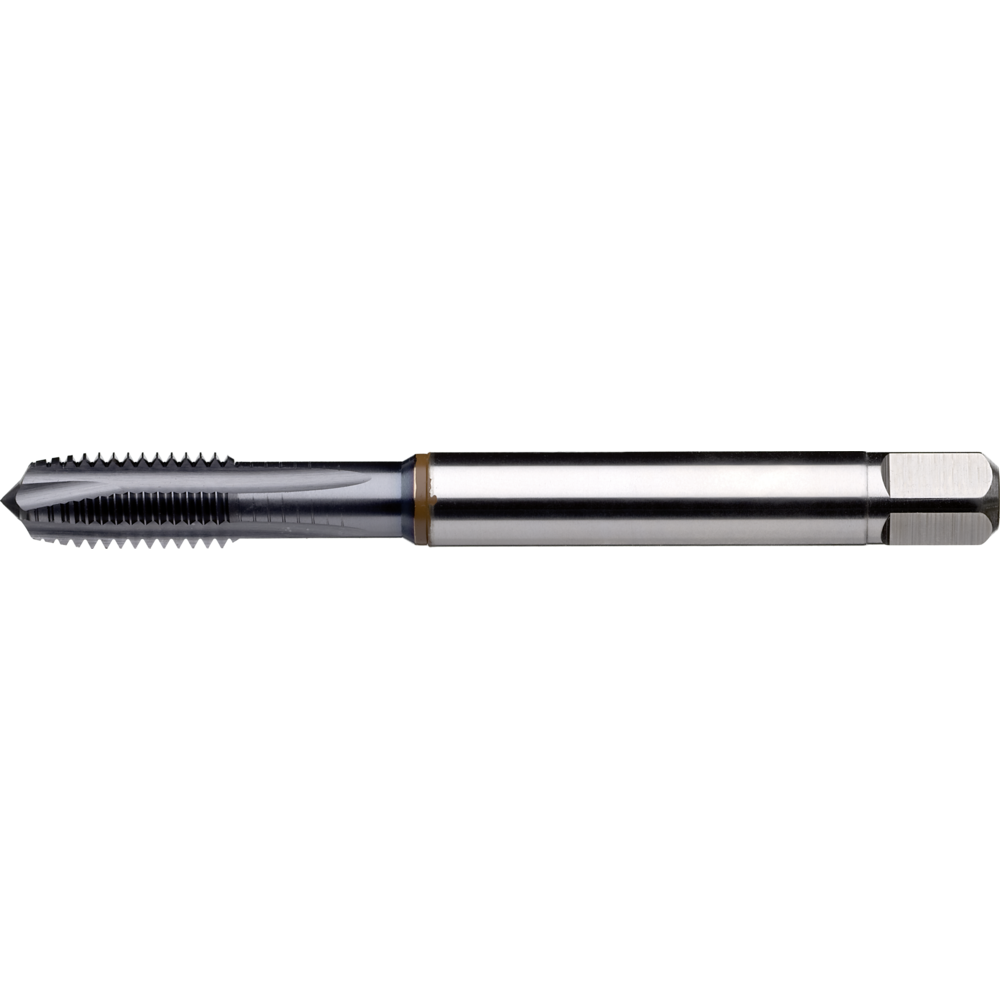

Machine tap HSS-E PM DIN371B, M2 through-hole (super alloy) TiCN

Machine tap HSS-E PM DIN371B, M2 through-hole (super alloy) TiCN
Machine tap HSS-E PM DIN371B, M2 through-hole (super alloy) TiCN Machine tap HSS-E PM DIN371B, M2 through-hole (super alloy) TiCN
Price:
45,30 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

For titanium and superalloys

Machine tap
  • Metric ISO 6HX thread
  • Straight-fluted with spiral point, Form B, 3.5 to 5-thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • For through-hole threads
  • The spiral point ensures strong chip removal to the front
  • Possible thread depths 3 x D

For titanium and superalloys

Machine tap
  • Metric ISO 6HX thread
  • Straight-fluted with spiral point, Form B, 3.5 to 5-thread chamfer
  • DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E-PM
  • For through-hole threads
  • The spiral point ensures strong chip removal to the front
  • Possible thread depths 3 x D

Article no./ATORN no.
1351420020 / 10470764
Packaging unit
1
Catalogue page

Technical characteristics

Anschnittform B
Coating TiCN
Coating TiCN
Cutting data Cutting angle Information - yes
Cutting data Cutting angle Information - yes
Cutting material HSSE-PM
DIN 371
Drallwinkel 0°
Eignung Edelstahl gesamt 3
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 2
fitness hartl total 3
Gewindeart x Nenndurchmesser M2
Gewindetiefe max. 1xD
Kernlochdurchmesser 1,6 mm
Länge 45 mm
Nenndurchmesser 2 mm
Oberfläche TiCN
Passend für Gewinde M2-M16
Schaftdurchmesser 2,8 mm
Schaftvierkant 2,1 mm
Schnittgeschwindigkeit (Bronze kurz) Eignung 3
Schnittgeschwindigkeit (Bronze lang) Eignung 3
Schnittgeschwindigkeit (Kunststoff ) Eignung 3
Schnittgeschwindigkeit (Messing lang) Eignung 3
Steigung 0,40 mm
Thread M
Thread M
Thread angle 60° thread angle °
Thread angle 60° thread angle °
Toleranz Gewindebohrer ISO 2X (6HX)
Toleranz Schaftdurchmesser h9
Toleranz Schaftvierkant h12
Typ S MAX Control

Usage characteristics

superalloys Fe/NiCo based ≥ 30 HRc
titanium alloys

very suitable
suitable
