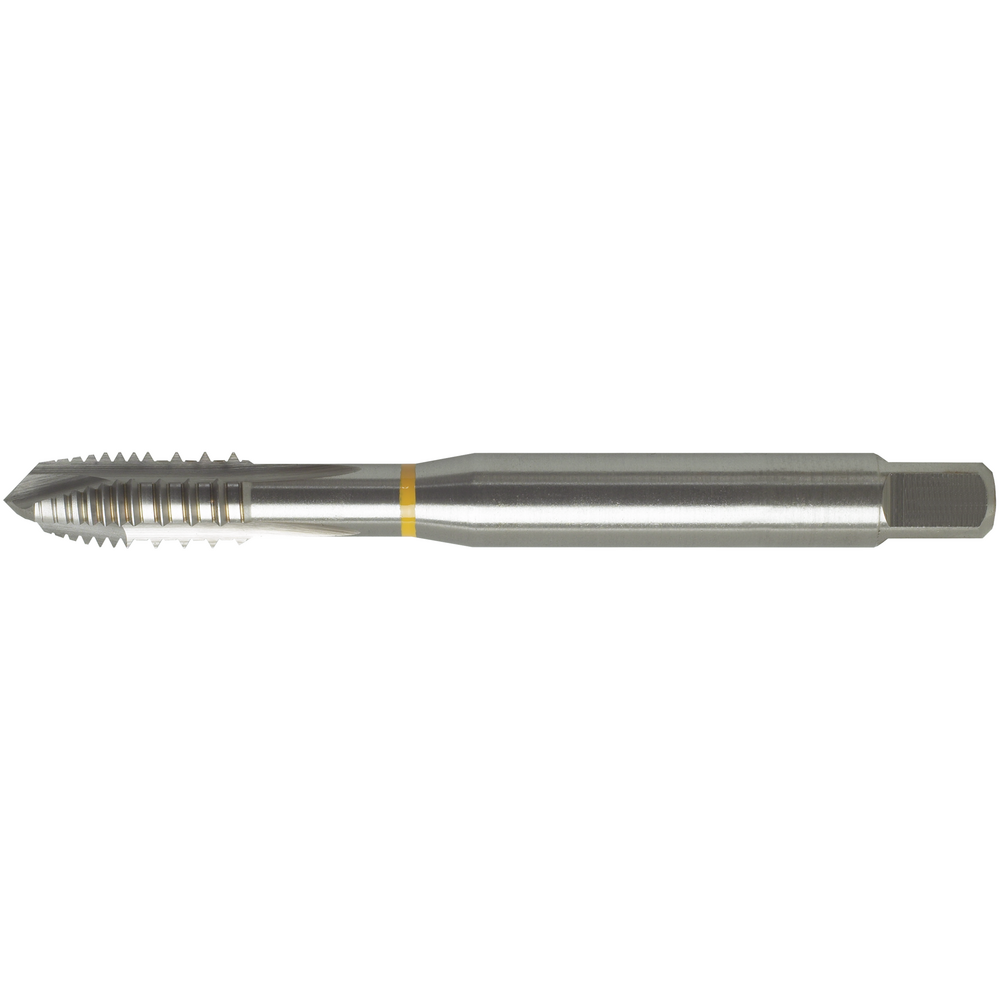

Machine tap HSS-E DIN371B M3 through-hole (stainl. steel) exposed thread ridges

Machine tap HSS-E DIN371B M3 through-hole (stainl. steel) exposed thread ridges
Machine tap HSS-E DIN371B M3 through-hole (stainl. steel) exposed thread ridges Machine tap HSS-E DIN371B M3 through-hole (stainl. steel) exposed thread ridges
Price
48,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Exposed thread ridges

Machine tap
  • ISO 6H metric thread
  • Straight-fluted, with exposed thread ridges
  • Type B, 3.5-5 thread chamfer
  • Constructional dimensions DIN 371 = up to M10, DIN 376 = from M12
  • Cutting material: HSS-E
  • For through-hole threads in materials that tend to jam, thin-walled parts and pipes
  • Possible thread depth 3 x D

Article no./ATORN no.
1351400030 / 10470659
Packaging unit
1
Catalogue page

Technical characteristics

C 2,7 mm
Coating uncoated
Coolant supply External
Cutting data Cutting angle Information - yes
Cutting material HSSE
D M3
D1 3,5 mm
DIN 371
Eignung Edelstahl gesamt 1
Eignung nicht Eisen gesamt 3
Eignung Titan/Nickel/Super gesamt 3
fitness hartl total 3
Form/Chamfer B
L 56 mm
L1 10 mm
L2 18 mm
Max. thread depth 3xD
Nenndurchmesser 3 mm
Passend für Gewinde M3-M10
Pitch 0,5 mm
Surface Uncoated
Tapping hole Ø 2,5 mm
Thread M
Thread angle 60 °
Threaded hole type Durchgangsloch ≤ 3xD
Tolerance of screw taps ISO 2 (6H)
Tolerance of shank diameter h9
Toleranz Schaftvierkant h12
Twist angle 0°
Typ M MAX Control

Usage characteristics

stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 700 N/mm²

very suitable
suitable
