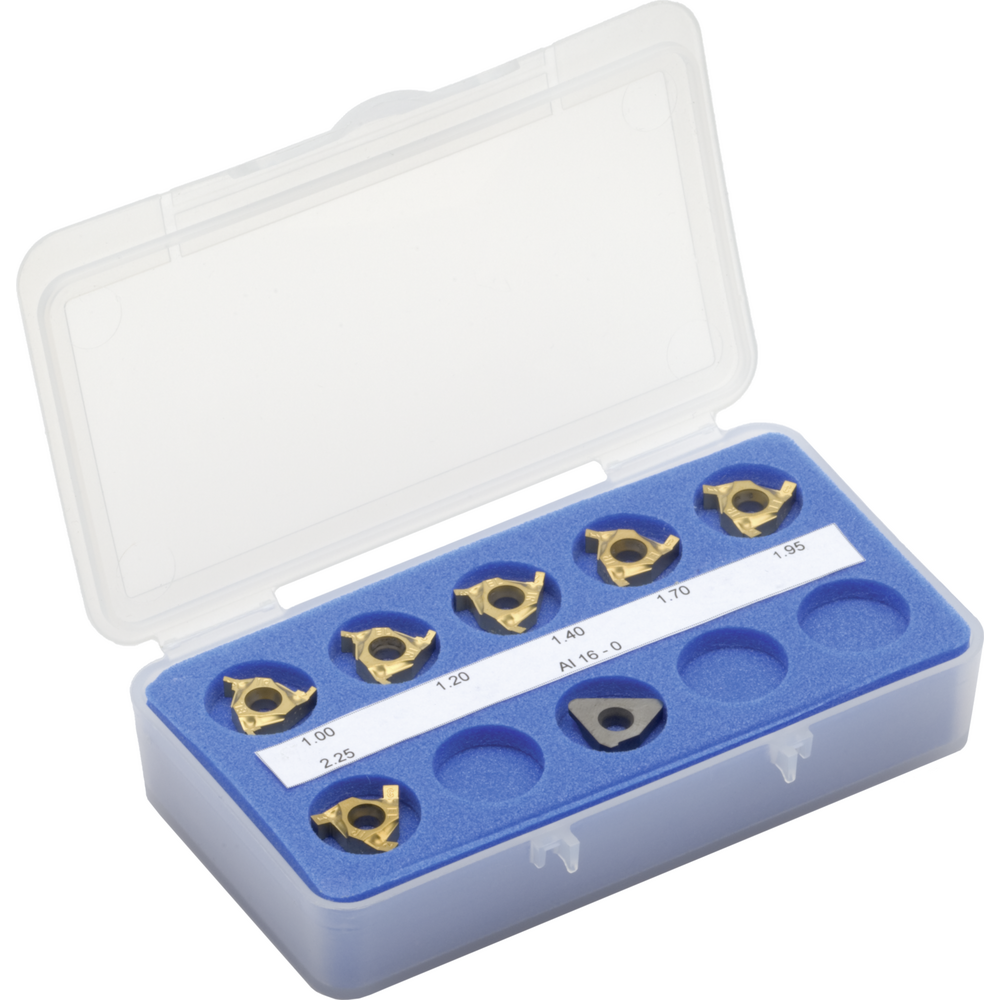

Grooving insert set 16IR/EL HC5640 7-piece (for holder SIR..16 and SEL..16)

Grooving insert set 16IR/EL HC5640 7-piece (for holder SIR..16 and SEL..16)
Grooving insert set 16IR/EL HC5640 7-piece (for holder SIR..16 and SEL..16) Grooving insert set 16IR/EL HC5640 7-piece (for holder SIR..16 and SEL..16) Grooving insert set 16IR/EL HC5640 7-piece (for holder SIR..16 and SEL..16) Grooving insert set 16IR/EL HC5640 7-piece (for holder SIR..16 and SEL..16) Grooving insert set 16IR/EL HC5640 7-piece (for holder SIR..16 and SEL..16)
Price
165,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Grooving inserts
  • For use on thread cutting holders
  • Low tool costs, since existing holders can be used
  • One tool holder for grooving and thread cutting
  • Three cutting edges, precision-ground
  • HC 5640 coated
  • Supplied without spacer (spacer set), please order separately!
  • Boring bars with insert size 16 without spacer cannot be used.

Insert sets suitable for holder types SIR..16 and SEL..16
Article no./ATORN no.
3490561601 / 11945620
Packaging unit
1
Catalogue page
KS-0985
Cutting values
SW-1100

Technical characteristics

Carbide type HC5640
Contents 16 IR/EL 1.0 | 16 IR/EL 1.20 | 16 IR/EL 1.40 | 16 IR/EL 1.70 | 16 IR/EL 1.95 | 1
Cutting data Cutting angle Information - yes
Depth 1,4 | 1,6 | 1,8 | 2,0 | 2,0 | 2,25 mm
Design HC 5640
ISO designation 16 (IR/EL) 1,00-2,25 SET
ISO H 3
ISO K 1
ISO M 1
ISO N 1
ISO P 1
ISO S 3
