Wedge clamp f. multi-clamping slide rail Bxh1 22x15 mm incl. slot nut, w/ allow.

Price
120,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Accessories for ATORN modular multi-clamping fixture

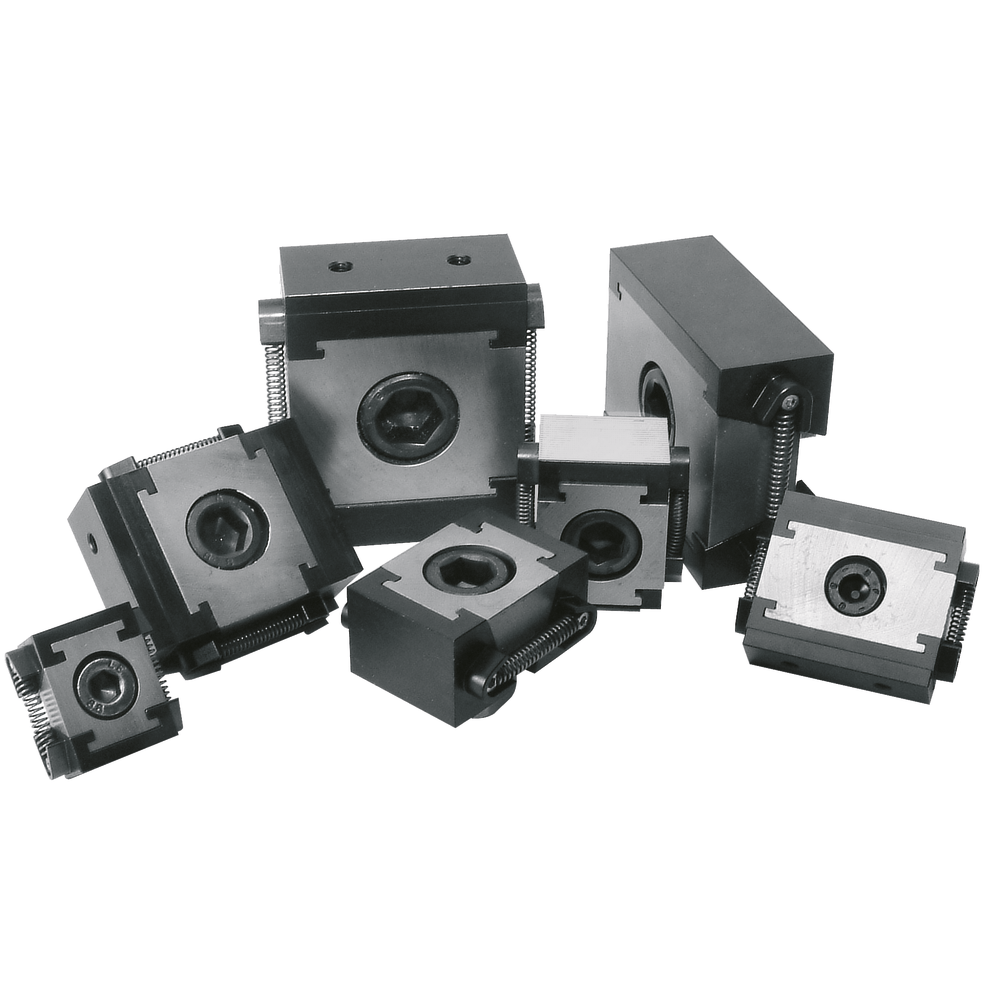

Wedge clamp
  • Includes slot nut and screw
  • 464008.... with M8 thread = 3 mm allowance per side
  • 464008.... with M12 thread = 5 mm allowance per side
  • except 464007 all jaws are including thread in the clamping surface
  • Jaw width refers to the clamping surface

Article no./ATORN no.
4640093015 / 22940055
Packaging unit
1
Catalogue page

Technical characteristics

Clamp force 15 kN
Design With claw fasteners
for thread M8
Jaw height 15 mm
Jaw width 22 mm
Lift height 5 mm
Max. length 33 mm
Min. length 27,5 mm
