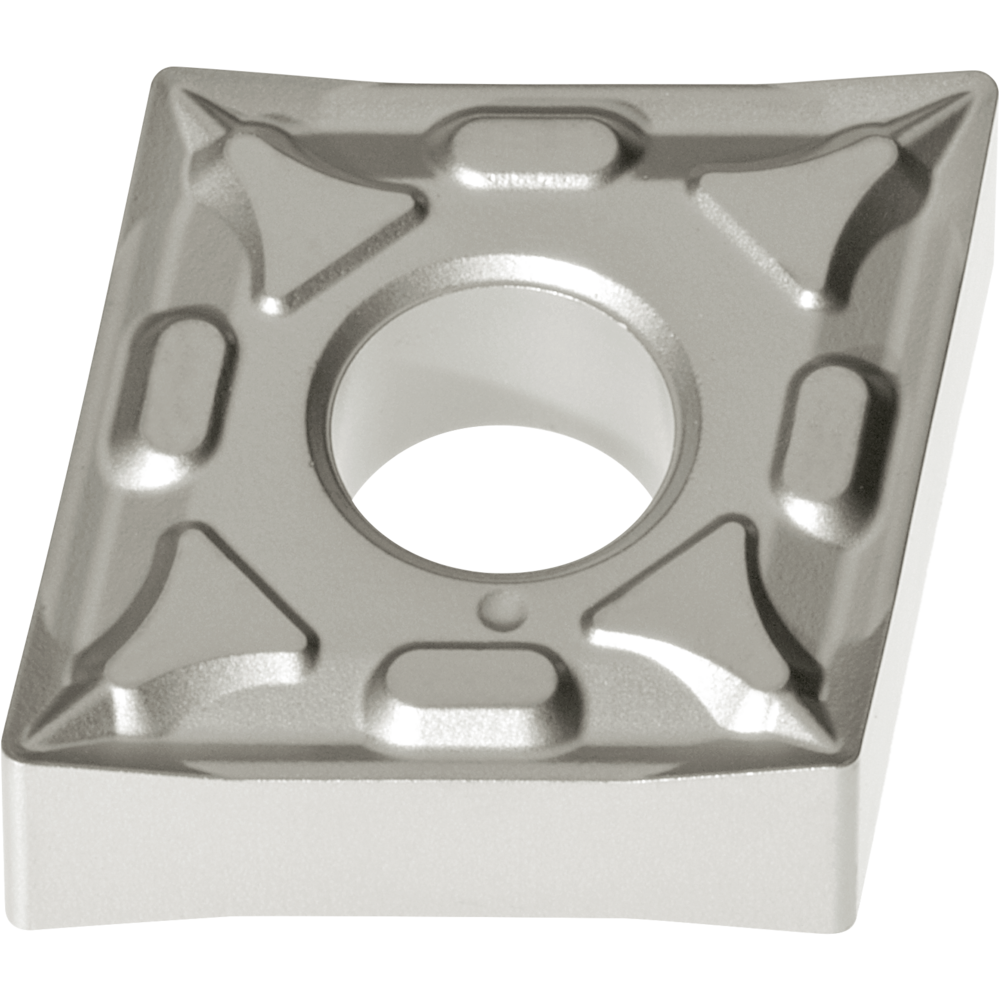

Turning insert CNMG 120404-FM HC7510

Turning insert CNMG 120404-FM HC7510
Turning insert CNMG 120404-FM HC7510 Turning insert CNMG 120404-FM HC7510
Price:
10,10 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

ISO M

ISO indexable cutting inserts CN.. ISO M
  • 80° rhombic, negative 0°

Chip breaker FM negative
Article no./ATORN no.
3101532624 / 10870412
Packaging unit
10
Catalogue page
KS-0842

Technical characteristics

Anzahl Stück pro Paket 10 pc.
ap max. 1 mm
ap min. 0,2 mm
Coating CVD
Eckenradius 0,4 mm
Eckenradius Wendeschneidplatte ISO 04
F finishing
F max. 0,12 mm/rev
F min. 0,05 mm/rev
Freiwinkel 0 °
Freiwinkel Wendeschneidplatte ISO N
Hartmetallsorte ISO M10
Hartmetallsortenbereich ISO M
ISO designation CNMG 120404-FM
ISO H 3
ISO K 3
ISO M 1
ISO N 3
ISO P 1
ISO S 3
ISO-Code Drehen CNMG 120404
ISO-Norm CNMG
Machining type Smoothing - Positive chip breaker for low cutting depths
Quality HC7510
Spanbrecherbezeichnung FM
Spitzenwinkel 80 °
Toleranzklasse Wendeschneidplatte ISO M
Vc in Edelstahl max. 270 m/min
Vc in Edelstahl min. 175 m/min
Vc in Stahl max. 320 m/min
Vc in Stahl min. 140 m/min
Wendeschneidplattendicke 4,76 mm
Wendeschneidplattendicke ISO 04
Wendeschneidplattenform ISO C
Wendeschneidplattengröße ISO 12
Wendeschneidplattentyp ISO G
