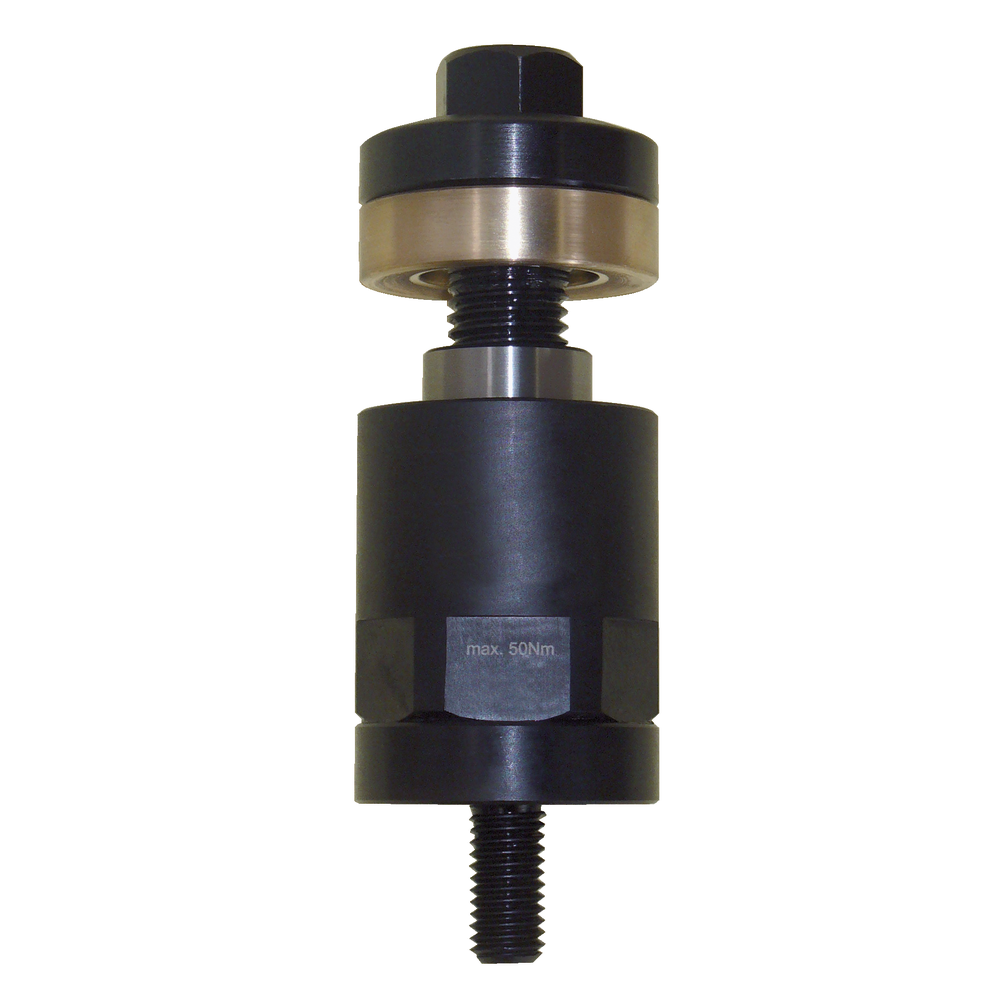

Clamping bolts

• Secure, safe, precise and powerful clamping for practically any workpiece shape
• Also suitable as a clamping support
• Length tolerance class js6, ensures that clamping is parallel to the table
• Standard clamping range 8 - 40 mm, can be extended to a maximum of 87 mm using clamping screws
• Description:
  1. Clamping range
  2. Length (js6)
  3. Wrench size 18
  4. Clamping screw
  5. Clamping ring
  6. Diameter 22 mm
  7. Wrench size 36 mm
  8. Spacer washer

Clamping bolts

• Supplied with M10 threaded bolts, spacer washer, clamping screw, clamping ring
