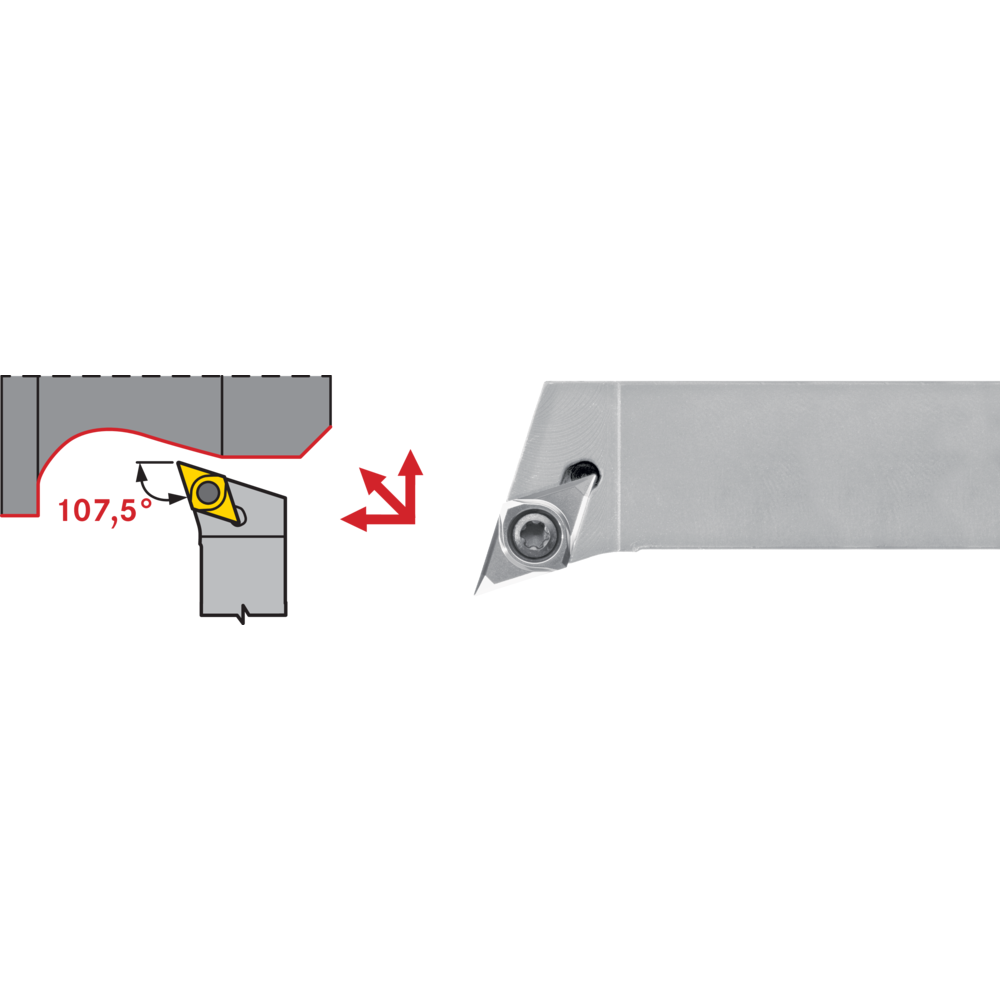

Tool holder SDHC-L 2020 K11, set. angle 107,5°, for turning inserts DC..11T3..

Tool holder SDHC-L 2020 K11, set. angle 107,5°, for turning inserts DC..11T3..
Tool holder SDHC-L 2020 K11, set. angle 107,5°, for turning inserts DC..11T3.. Tool holder SDHC-L 2020 K11, set. angle 107,5°, for turning inserts DC..11T3..
Price
96,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder
Tool holders, positive SDHC
  • SDHC R/L 107.5°
  • Setting angle 107.5°, for positive 7º rhombic indexable inserts, 55º point angle
  • Use: Copy turning

Article no./ATORN no.
3201692020 / 11111334
Packaging unit
1
Catalogue page

Technical characteristics

Anstellwinkel 107,5 °
B 20 mm
Design Left-hand
DIN 4983
F 25 mm
for indexable inserts DC..11T3..
Freiwinkel 7 °
Geeignet für Wendeschneidplatten DC.. 11T3..
h=h1 20 mm
ISO designation SDHC R/L 2020 K11
Klemmsystem S
Kopflänge 14 mm
L1 125 mm
L2 16,7 mm
Länge 125 mm
Programmiermaß 25 mm
Schaftbreite 20 mm
Schafthöhe 20 mm
Schneidenlänge 11 mm
Wendeschneidplattenform ISO D
