Tool holder PTGN-L 1616 H16, setting angle 90°, for turning inserts TNM.1604..

Tool holder PTGN-L 1616 H16, setting angle 90°, for turning inserts TNM.1604..
Tool holder PTGN-L 1616 H16, setting angle 90°, for turning inserts TNM.1604.. Tool holder PTGN-L 1616 H16, setting angle 90°, for turning inserts TNM.1604..
Price
103,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Tool holders, negative PTGN

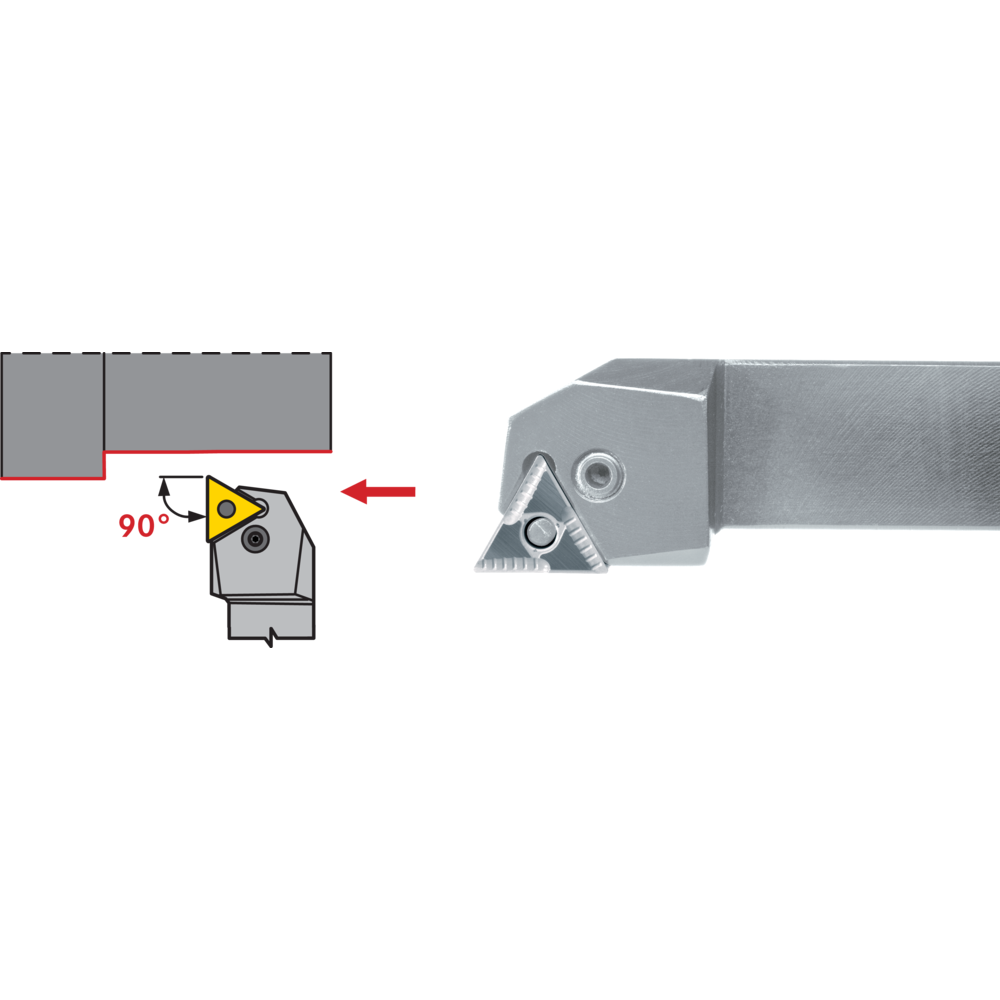

  • PTGN R/L 90°
  • Setting angle 90°, for negative 0º triangular indexable inserts, 60º point angle
  • Use: Longitudinal turning

Article no./ATORN no.
3201020001 / 11220168
Packaging unit
1
Catalogue page
KS-0911

Technical characteristics

Anstellwinkel 90 °
Design Left
DIN 4983
F 20 mm
Freiwinkel 0 °
ISO designation PTGN R/L 1616 H16
Klemmsystem P
L 100 mm
L1 22 mm
Schneidenlänge 16 mm
Shank height 16 mm
Shank width 16 mm
suitable indexable inserts TN.. 1604..
Wendeschneidplattenform ISO T
