Disc milling cutters with collar 100x27mm, ap= 4mm, for 12 II SNHX1102T

Disc milling cutters with collar 100x27mm, ap= 4mm, for 12 II SNHX1102T
Disc milling cutters with collar 100x27mm, ap= 4mm, for 12 II SNHX1102T Disc milling cutters with collar 100x27mm, ap= 4mm, for 12 II SNHX1102T Disc milling cutters with collar 100x27mm, ap= 4mm, for 12 II SNHX1102T
Price:
1.059,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Disc milling cutter with collar
  • Three cutting edges
  • Fixed width
  • Generates a slight roof shape at the base of the groove
  • Screw-in indexable inserts
  • For slotting, cutting and groove milling
  • Supplied with clamping screws

Article no./ATORN no.
2626101004 / 11118104
Packaging unit
1
Catalogue page
KS-0715
Cutting values
SW-0832

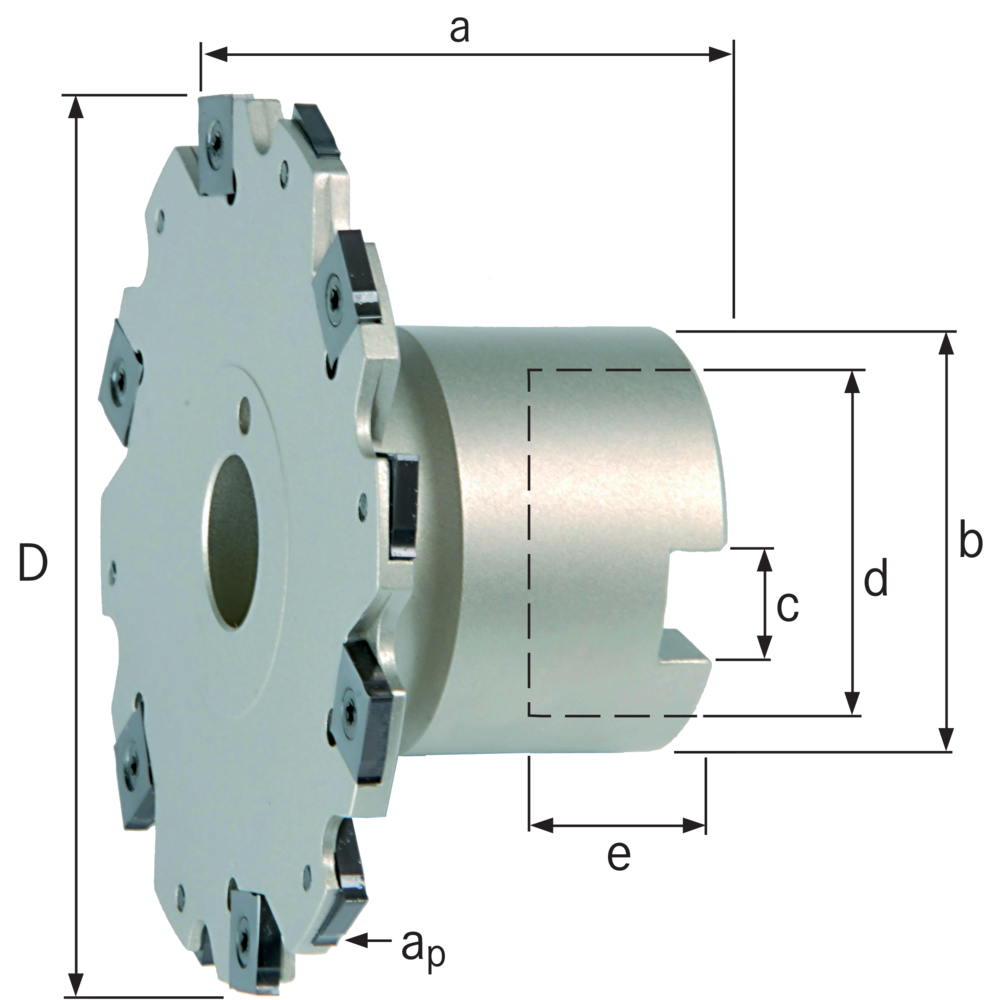

Technical characteristics

A 12,4 mm
A 50 mm
Anzahl Schneiden 6 pc.
Anzahl Wendeplatten 12 pc.
ap 4 mm
Aufnahmebundbreite 50 mm
Aufnahmebunddurchmesser 48 mm
B 48 mm
Bohrungsdurchmesser 27 mm
Cutting data Cutting angle Information - yes
Cutting depth ae max. 24,2 mm
D 100,0 mm
D1 27 mm
E 23 mm
Oberfläche NI
Schneidenbreite 4 mm
Schneidendurchmesser 100 mm
Schnitttiefe 24,2 mm
suitable indexable inserts SNHX 1102T
Z 12
Z eff. 6
