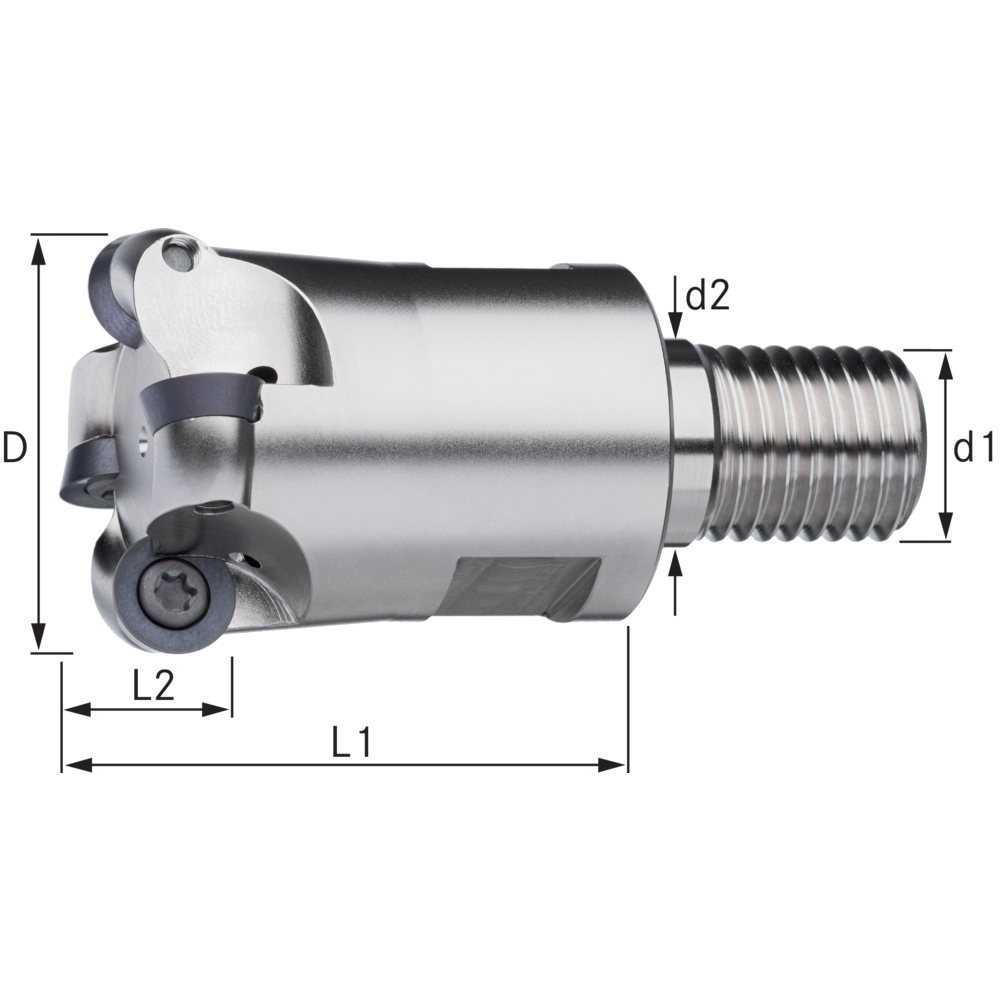

Screw-in milling cutter 10mm/M6, for 2 indexable inserts RD..0501MO.,

Screw-in milling cutter 10mm/M6, for 2 indexable inserts RD..0501MO.,
Screw-in milling cutter 10mm/M6, for 2 indexable inserts RD..0501MO., Screw-in milling cutter 10mm/M6, for 2 indexable inserts RD..0501MO.,
Price:
147,50 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder
Copy milling cutter
  • For copy milling, radius cutting and contour milling in die and mould production
  • Suitable for diagonal or axial plunge milling thanks to the clearance of the round indexable insert
  • Internal coolant supply

Modular screw-in milling cutter
  • Ø 10.0 mm without internal coolant supply

Article no./ATORN no.
2606121000 / 11110410
Packaging unit
1
Catalogue page

Technical characteristics

Anzahl Schneiden 2 pc.
ap max. 1,5 mm
Application Copy milling
Coolant design Internal axial
Cutting data Cutting angle Information - yes
D 10,0 mm
D1 9 mm
Freistellungslänge 18 mm
Geeignet für Wendeschneidplatten RD.. 0501..
Gewindeabmessung M6
L 18 mm
L1 10 mm
Max. tightening torque 0,3 N·m
MD M 6
Oberfläche NI
Passende Wendeschneidplatten-Nr. 30
R 2,5 mm
Schneidendurchmesser max. 10 mm
suitable indexable inserts RD..0501MO.
Z 2
