Index. insert milling counterb. 10-80°, shank-20mm for 1 index. insert TC.. 1102

Index. insert milling counterb. 10-80°, shank-20mm for 1 index. insert TC.. 1102
Index. insert milling counterb. 10-80°, shank-20mm for 1 index. insert TC.. 1102 Index. insert milling counterb. 10-80°, shank-20mm for 1 index. insert TC.. 1102
Price:
319,00 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

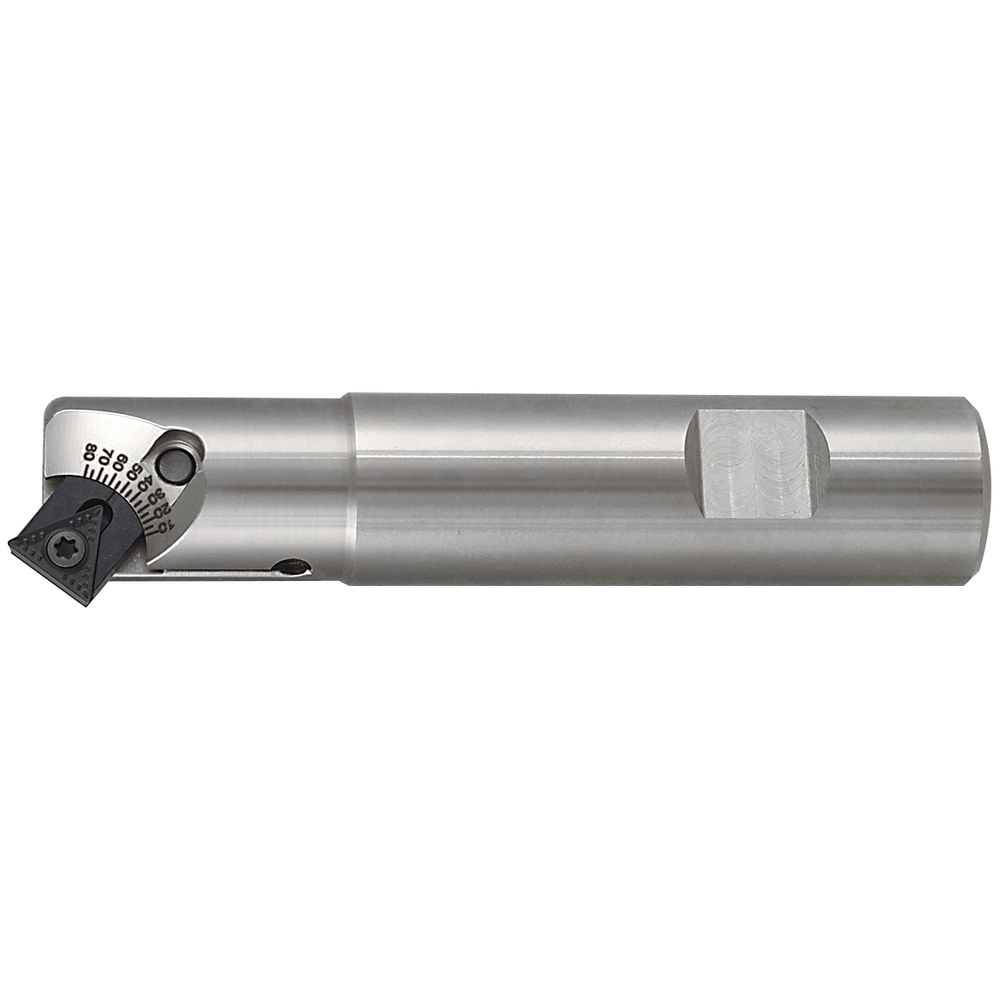

Countersinking mill, adjustable
  • Adjustable from 10° to 80°
  • Universal indexable insert countersinking mill for chamfering, deburring and countersinking in fixed operating conditions. Cannot be used on drilling machines
  • Stable, smooth operation
  • Straight shank with driving planes in accordance with DIN 1835B in tolerance zone h6
  • Scale tolerance ± 2.5°, please use a pre-setting device for precise adjustment
  • Supplied with clamping screws and wrench

For ISO indexable inserts, type TC.. 1102
  • incl. cartridge

Article no./ATORN no.
2601220020 / 11113320
Packaging unit
1
Catalogue page
KS-0697

Technical characteristics

Coolant supply External
D max. 26,0 / 27,0 / 27,0 / 27,0 / 27,0 / 27,0 / 26,0 / 25,0 / 24,0 mm
D min. 5,0 / 8,0 / 10,0 / 13,0 / 14,0 / 15,0 / 17,0 / 19,0 / 20,0 mm
D1 20 mm
L 100 mm
Max. tightening torque 1 N·m
suitable indexable inserts TC.. 1102..
Tolerance of shank diameter h7
Tool holding device HB parallel shank
γ 10° , 20° , 30° , 40° , 45° , 50° , 60° , 70° , 80° °
