Spiral flute chamfer milling cutter 15° 35x27mm, for 6 II AP..1604

Spiral flute chamfer milling cutter 15° 35x27mm, for 6 II AP..1604
Spiral flute chamfer milling cutter 15° 35x27mm, for 6 II AP..1604 Spiral flute chamfer milling cutter 15° 35x27mm, for 6 II AP..1604
Price:
679,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
External stock
available
Add to shopping cart
Tool Finder

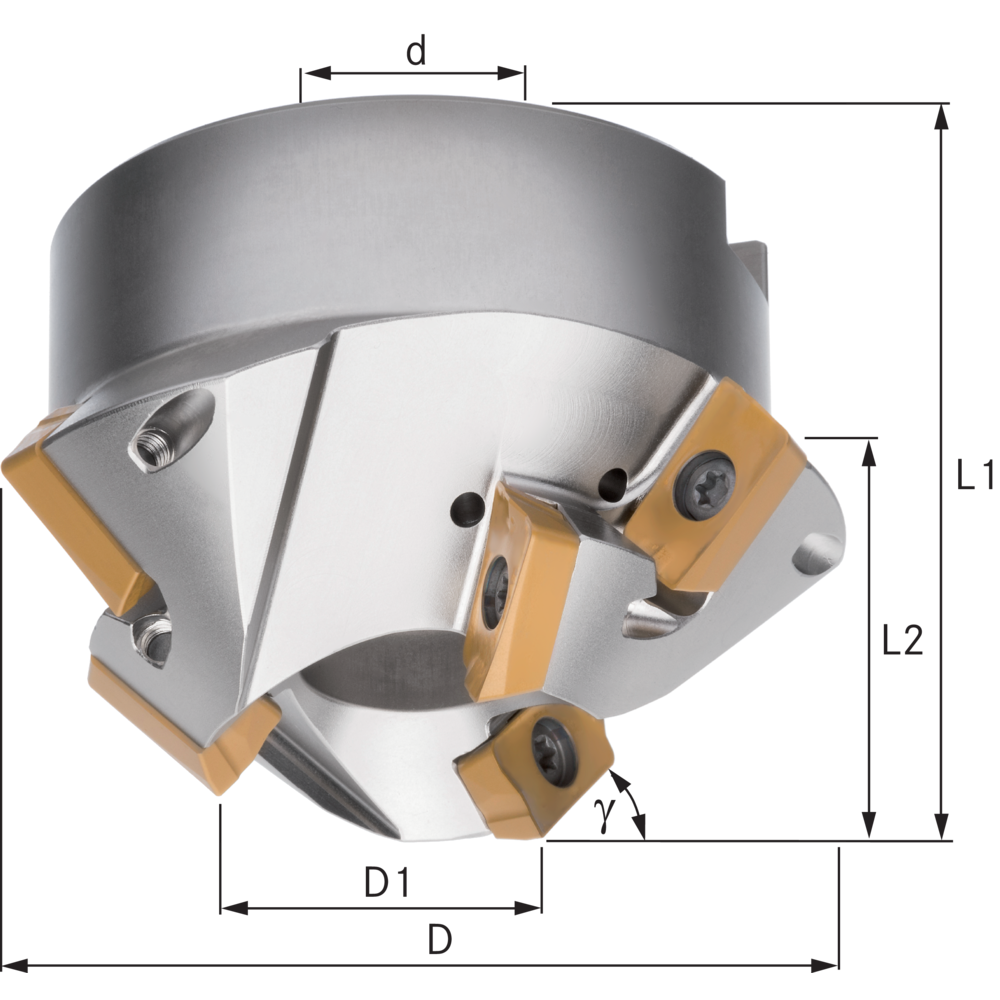

Spiral flute chamfer milling cutter
  • For roughing
  • 15 °, 20°, 30 °, 40 °, 45 °, 60 °, 75 °
  • For ISO milling inserts, type AP.. 1604
  • Ideal for pre-machining welded seams
  • Indexable insert tolerances allow crank formation
  • Supplied with clamping screws and wrench
  • Additional versions with user-defined chamfer angles are manufactured on request (minimum purchase 2 units)

Article no./ATORN no.
2625273515 / 11113504
Packaging unit
1
Catalogue page
KS-0652

Technical characteristics

Application Chamfering
Bohrungsdurchmesser 27 mm
Coolant supply Internal
D 35,0 mm
D max. 94 mm
D1 27 mm
Fasenbreite max. 29,5 mm
Fasenlänge max. 30 mm
Geeignet für Wendeschneidplatten AP.. 1604..
L 50 mm
Max. tightening torque 4,01 N·m
Number of index. inserts 6 pc.
Oberfläche NI
Passende Wendeschneidplatten-Nr. 27
Schneidendurchmesser min. 35 mm
Schneidendurchmesser min./max. 35-94 mm
t max. 8 mm
Z 3 pc.
γ 15 °
STEP Download
DXF Download
Catalogue page Download
ASSET_MatSafetyDataSheet Download
