Shoulder milling cutter 90° 40x16x40mm, Z=4 (APK.1604..)

Shoulder milling cutter 90° 40x16x40mm, Z=4 (APK.1604..)
Shoulder milling cutter 90° 40x16x40mm, Z=4 (APK.1604..) Shoulder milling cutter 90° 40x16x40mm, Z=4 (APK.1604..) Shoulder milling cutter 90° 40x16x40mm, Z=4 (APK.1604..)
Price:
257,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

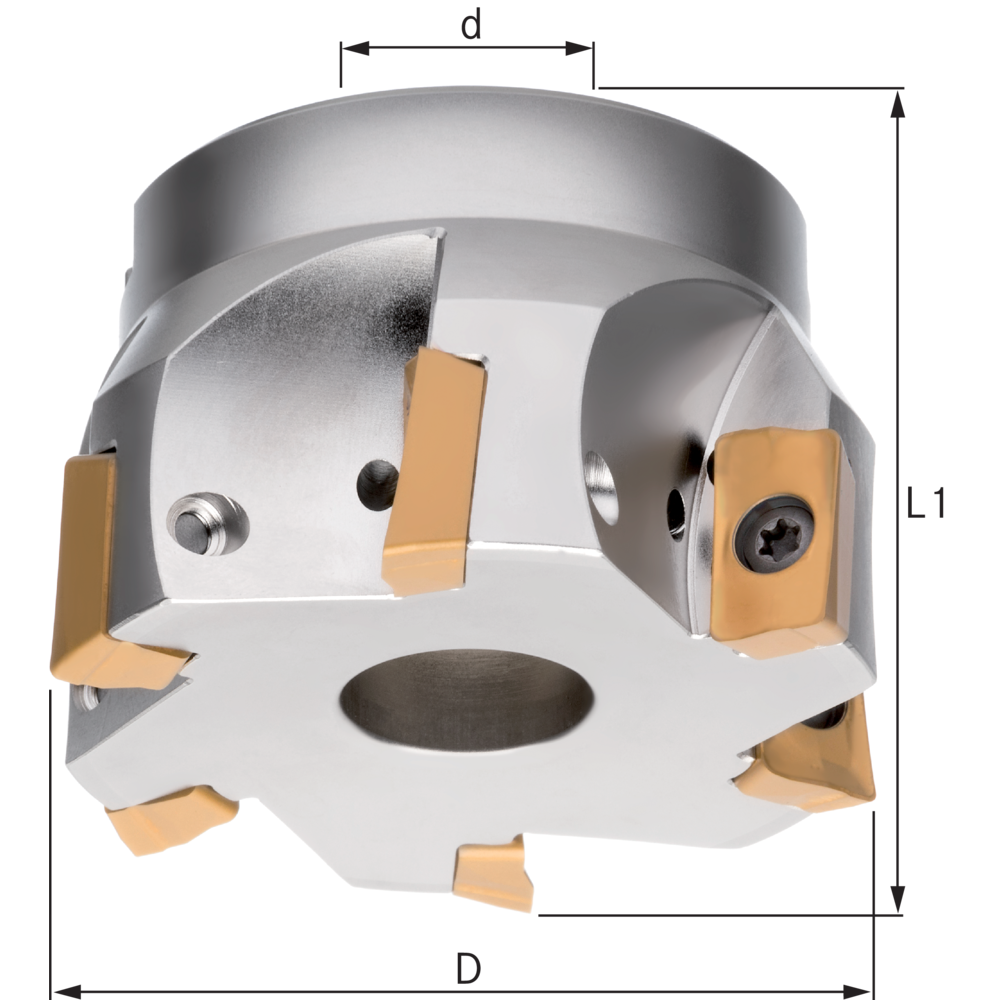

90° shoulder milling cutter
  • For ISO milling inserts, type AP.. 1604
  • Precise 90° shoulder milling
  • Rhombic shape for large cutting depths
  • Internal coolant supply
  • Supplied with clamping screws and wrench
  • Cutting angle: Tool cutting edge angle 90°, axial rake angle 7° + 13°, radial rake angle 20°
  • * Without internal coolant supply

Article no./ATORN no.
2625250040 / 11117341
Packaging unit
1
Catalogue page
KS-0651

Technical characteristics

ap max. 14,9 mm
Application Face milling
Bohrungsdurchmesser 16 mm
Coolant supply Internal
D 40 mm
D1 16 mm
Geeignet für Wendeschneidplatten AP.. 1604..
L 40 mm
Max. tightening torque 4,01 N·m
Oberfläche NI
Passende Wendeschneidplatten-Nr. 27 | 28
Tool holding device Location bore
Type A
Z 4 pc.
DXF Download
Catalogue page Download
ASSET_MatSafetyDataSheet Download
