End milling cutter 90° 32x200mm, shank 32mm, for 3 indexable inserts AP..1604

End milling cutter 90° 32x200mm, shank 32mm, for 3 indexable inserts AP..1604
End milling cutter 90° 32x200mm, shank 32mm, for 3 indexable inserts AP..1604 End milling cutter 90° 32x200mm, shank 32mm, for 3 indexable inserts AP..1604 End milling cutter 90° 32x200mm, shank 32mm, for 3 indexable inserts AP..1604 End milling cutter 90° 32x200mm, shank 32mm, for 3 indexable inserts AP..1604
Price
360,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder
90° end milling cutter
  • For ISO milling inserts, type AP.. 1604
  • Internal coolant supply
  • Easy cutting action due to the positive installation position of the indexable insert
  • Tools deliver smooth milling performance
  • Axial run-out max. 0.03 mm
  • Radial run-out max. 0.03 mm
  • For groove milling and side milling
  • Precise 90° shoulder milling
  • Shank according to DIN 1835B
  • Supplied with clamping screws and wrench

Long
Article no./ATORN no.
2625100032
Packaging unit
1
Catalogue page

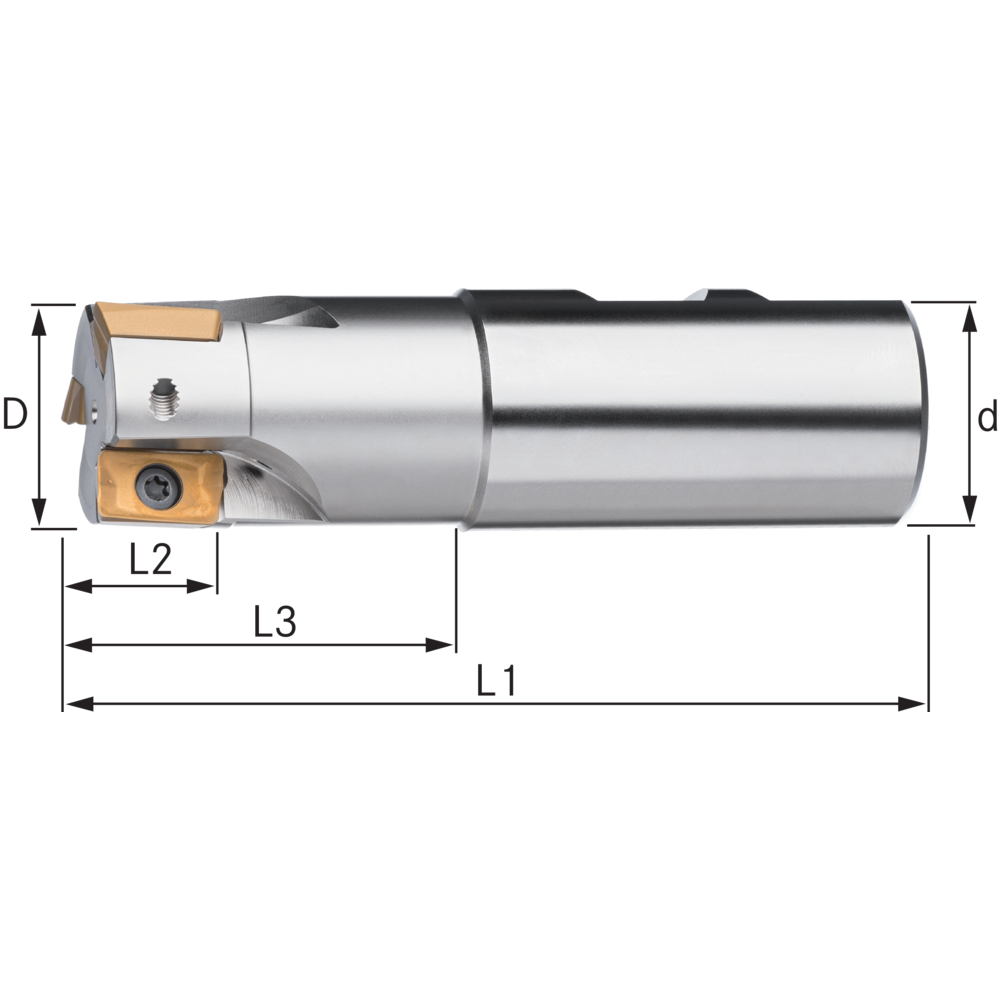

Technical characteristics

ap max. 14,9 mm
Application Face milling
Coolant supply Internal
D 32 mm
D1 32 mm
Freistellungslänge 60 mm
Geeignet für Wendeschneidplatten AP.. 1604..
Jaw height 14,9 mm
L1 140 mm
Max. tightening torque 4,01 N·m
Oberfläche NI
Passende Wendeschneidplatten-Nr. 27 | 28
Tool holding device HB parallel shank
Z 3 pc.
