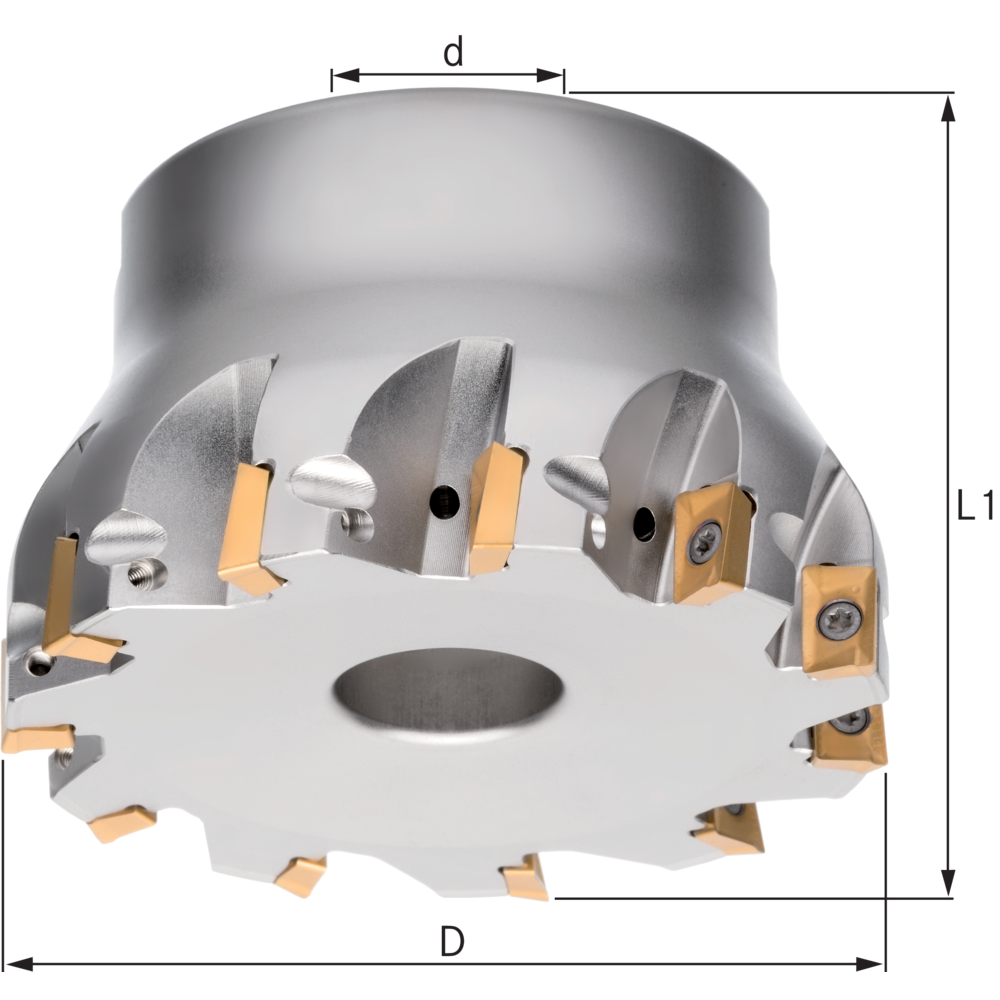

Shoulder milling cutter 90° 40x16x40mm, for 6 indexable inserts AP..1003

Shoulder milling cutter 90° 40x16x40mm, for 6 indexable inserts AP..1003
Shoulder milling cutter 90° 40x16x40mm, for 6 indexable inserts AP..1003 Shoulder milling cutter 90° 40x16x40mm, for 6 indexable inserts AP..1003
Price:
302,00 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

90° shoulder milling cutter
  • For ISO milling inserts, type AP.. 1003
  • Easy cutting action due to the positive installation position of the indexable insert
  • Tools deliver smooth milling performance
  • Internal coolant supply
  • Axial run-out max. 0.03 mm
  • Radial run-out max. 0.03 mm

Article no./ATORN no.
2625460040 / 11117440
Packaging unit
1
Catalogue page
KS-0643

Technical characteristics

ap max. 9,3 mm
Application Face milling
Bore hole Ø 16 mm
Coolant supply Internal
D 40 mm
Geeignet für Wendeschneidplatten AP.. 1003..
L 40 mm
Max. tightening torque 1,0 N·m
Passende Wendeschneidplatten-Nr. 21 | 22
Surface Nitrated
Tool holding device Location bore
Z 6 pc.
