Roughing spiral flute milling cutter 90° 20x86mm shank 20mm, for 4 II AP..1003

Roughing spiral flute milling cutter 90° 20x86mm shank 20mm, for 4 II AP..1003
Roughing spiral flute milling cutter 90° 20x86mm shank 20mm, for 4 II AP..1003 Roughing spiral flute milling cutter 90° 20x86mm shank 20mm, for 4 II AP..1003
Special offer:
158,00 €
(380,00 € catalogue price / 58% saved)
prices excl. vat plus shipping costs

Stock status
Only 2 pieces left!
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

90° roughing spiral flute end mill
  • For ISO milling inserts, type AP.. 1003
  • Easy cutting action due to the positive installation position of the indexable insert
  • Tools deliver smooth milling performance
  • Internal coolant supply
  • Axial run-out max. 0.03 mm
  • Radial run-out max. 0.03 mm
  • Shank according to DIN 1835B

Article no./ATORN no.
2625440020 / 11119020
Packaging unit
1
Catalogue page
KS-0644
Cutting values
SW-0811

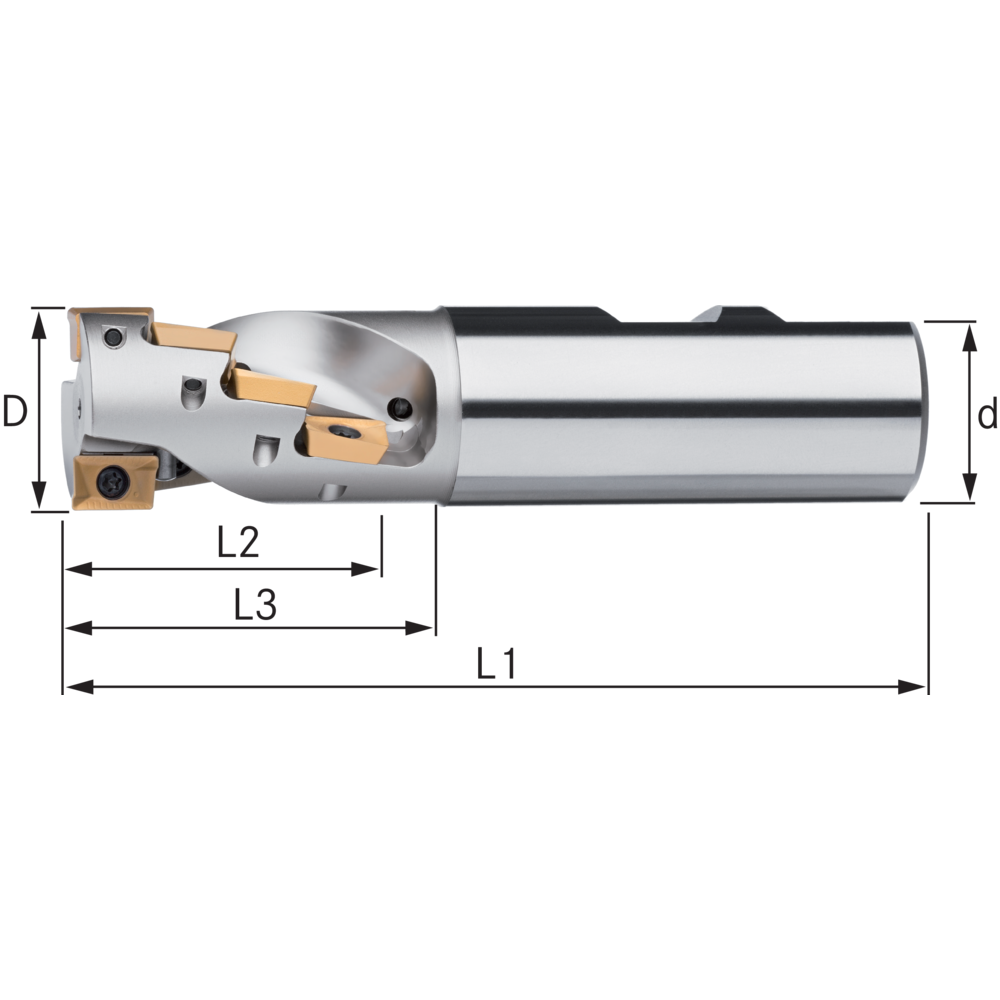

Technical characteristics

ap max. 28 mm
Application Corner milling
Clearance length 28 mm
Coolant supply Internal
Cutting data Cutting angle Information - yes
D 20 mm
D1 20 mm
Geeignet für Wendeschneidplatten AP.. 1003..
L 87 mm
L1 37 mm
Max. tightening torque 1,0 N·m
Number of index. inserts 4 pc.
Passende Wendeschneidplatten-Nr. 21
Surface NI
Tool holding device HB parallel shank
Z 1 pc.
