Further tools for bore diameters 10 to 33 mm available on request

Tool system for machining drill holes MINI-MILL

• Type ZH 22 from bore Ø 22 mm
• Solid carbide inserts, quality grade HC 8620
• Solid carbide milling cutter shank with internal coolant supply
• Steel milling cutter shank with internal coolant supply
• 3-rib toothing
• For machining grooves, circlip grooves, ISO metric threads, Whitworth pipe threads and full radius grooves, as well as for chamfering and deburring

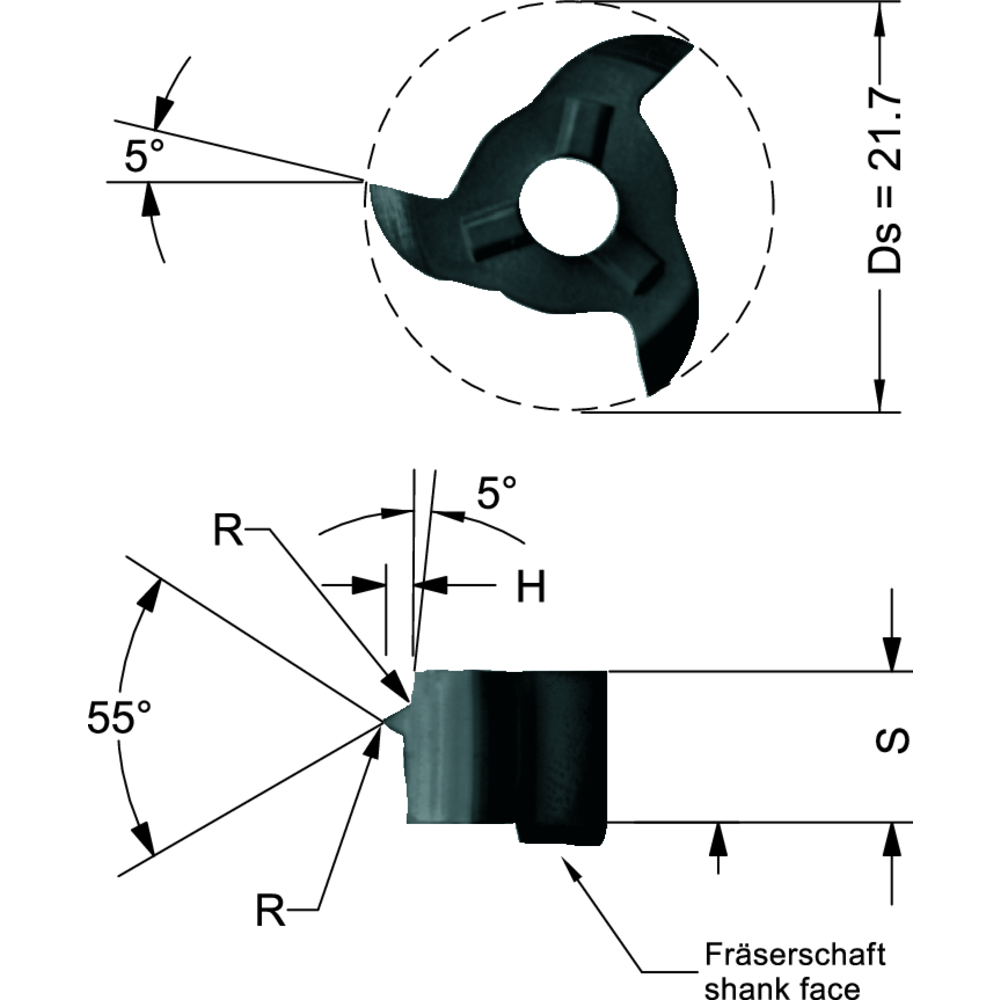

Cutting inserts for Whitworth pipe threads, DIN ISO 228 (259) + 2999 full profile
