Cutting insert Z22.0070.00 circlip slot 0,70mm tmax=1,5mm HC8620

Cutting insert Z22.0070.00 circlip slot 0,70mm tmax=1,5mm HC8620
Cutting insert Z22.0070.00 circlip slot 0,70mm tmax=1,5mm HC8620
Price:
45,60 €
prices excl. vat plus shipping costs

Stock status
in stock
External stock
available
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Further tools for bore diameters 10 to 33 mm available on request

Tool system for machining drill holes MINI-MILL
  • Type ZH 22 from bore Ø 22 mm
  • Solid carbide inserts, quality grade HC 8620
  • Solid carbide milling cutter shank with internal coolant supply
  • Steel milling cutter shank with internal coolant supply
  • 3-rib toothing
  • For machining grooves, circlip grooves, ISO metric threads, Whitworth pipe threads and full radius grooves, as well as for chamfering and deburring

Cutting inserts for DIN 471/472 circlip grooves
Article no./ATORN no.
2631000007
Vendor Article no.
Z22.0070.00/AL41F
Packaging unit
1
Catalogue page
KS-0607
Cutting values
SW-0807

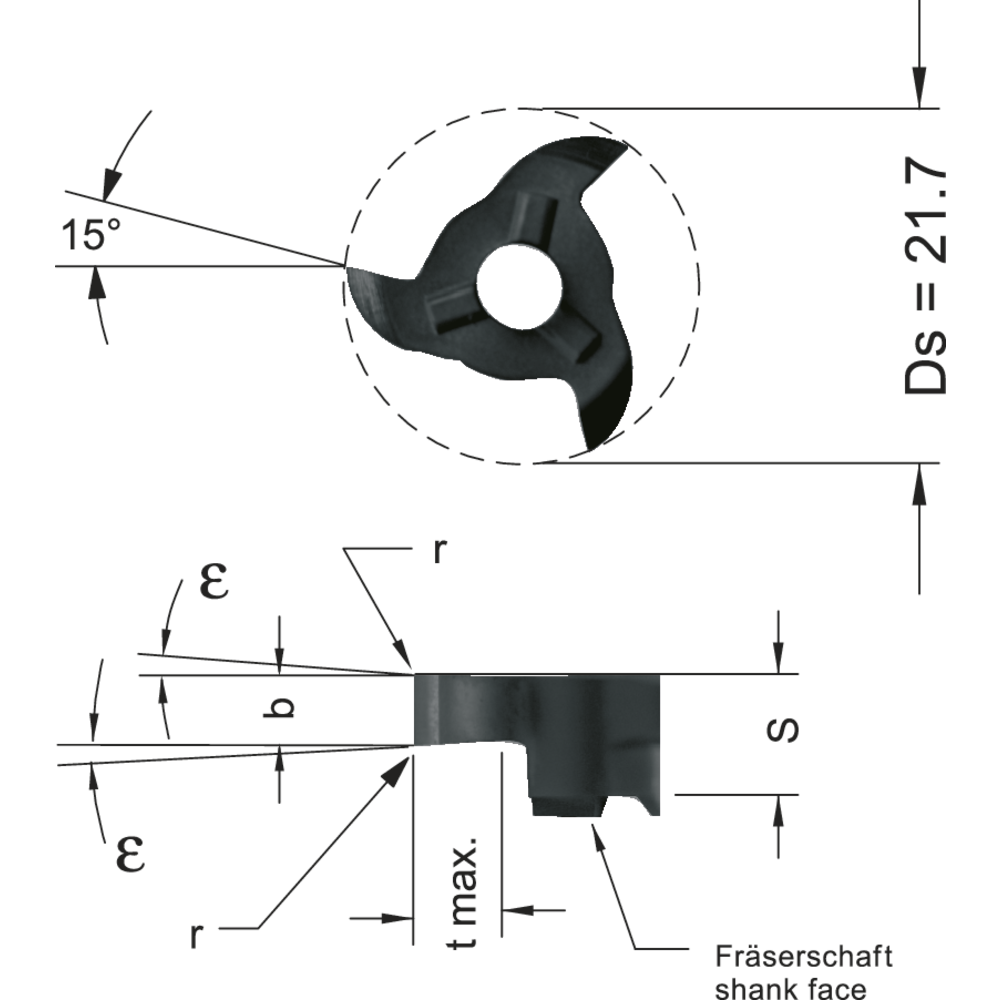

Technical characteristics

b -0.02 0,74 mm
Design HC8620
Designation Z 22.0070.00
R - mm
S 5,7 mm
t max. 1,5 mm
ε 1,0 °

Usage characteristics

aluminium < 8 % Si
aluminium ≥ 8 % Si
brass short
cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
stainless steel austenitic
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²
superalloys Fe/NiCo based < 30 HRC
titanium alloys

very suitable
suitable
