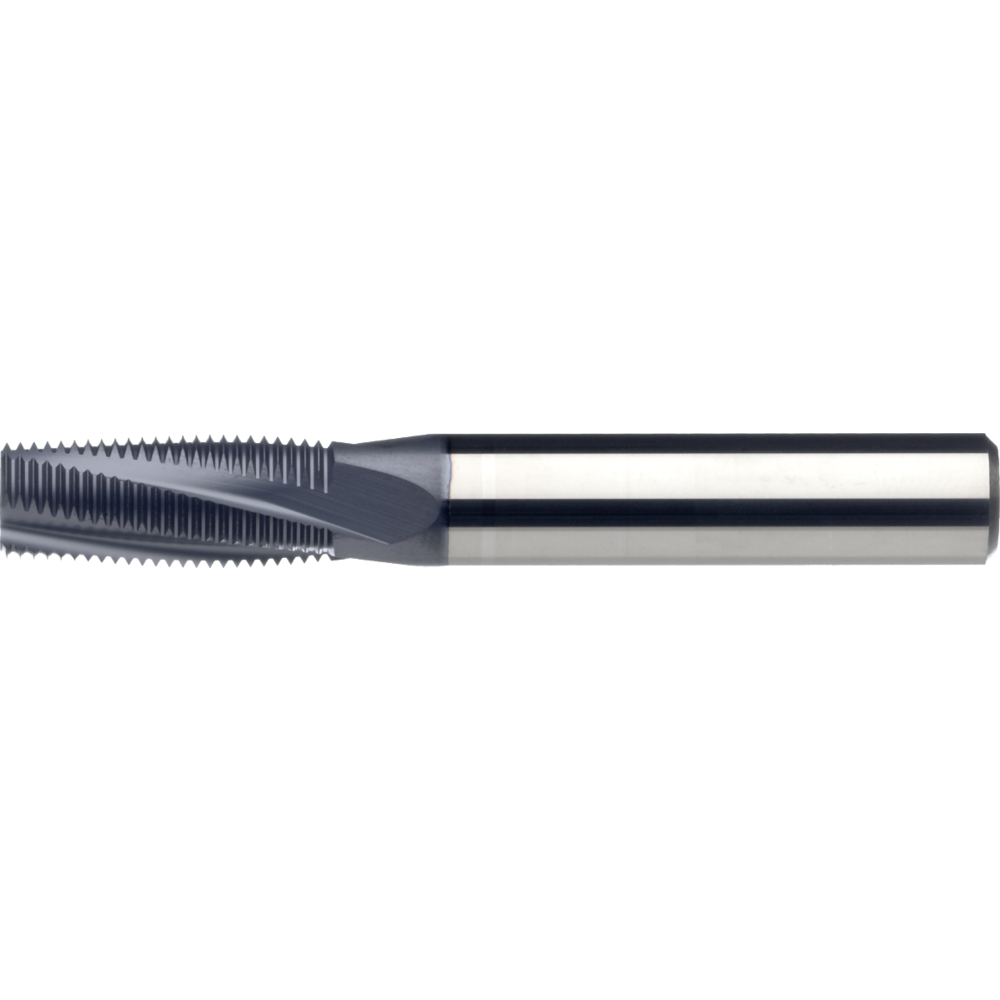

Thread end milling cutter

• The thread is machined in just one operation
• Chip flutes permit an easy cut
• Short machine times thanks to multiple (3-6) cutting edges
• Operating range from dimension D = 2.2 mm
• Allows thread cutting in blind bores up to the shoulder
• One tool for right-hand and left-hand threads
• One tool for material groups P, M, K, S and H
• Excellent surface finish quality
• Long service life due to special multi-layer coating
• Low cutting pressure makes it possible to machine thin-walled workpieces
• Cutting material: AMT7 solid carbide, multi-layer TiAlN coating for universal applications
• Through-hole version (internal cooling outlet in flute) available on request!


  Solid carbide thread end milling cutter for the following thread types available on request:
  -UN
  -BSPT
  -NPT
  -NPS
  -NPTF
  -NPSF
  -external threads, metr. full profile
  -external threads, UN

Metric, full profile, ISO 60°, internal, with internal coolant supply
