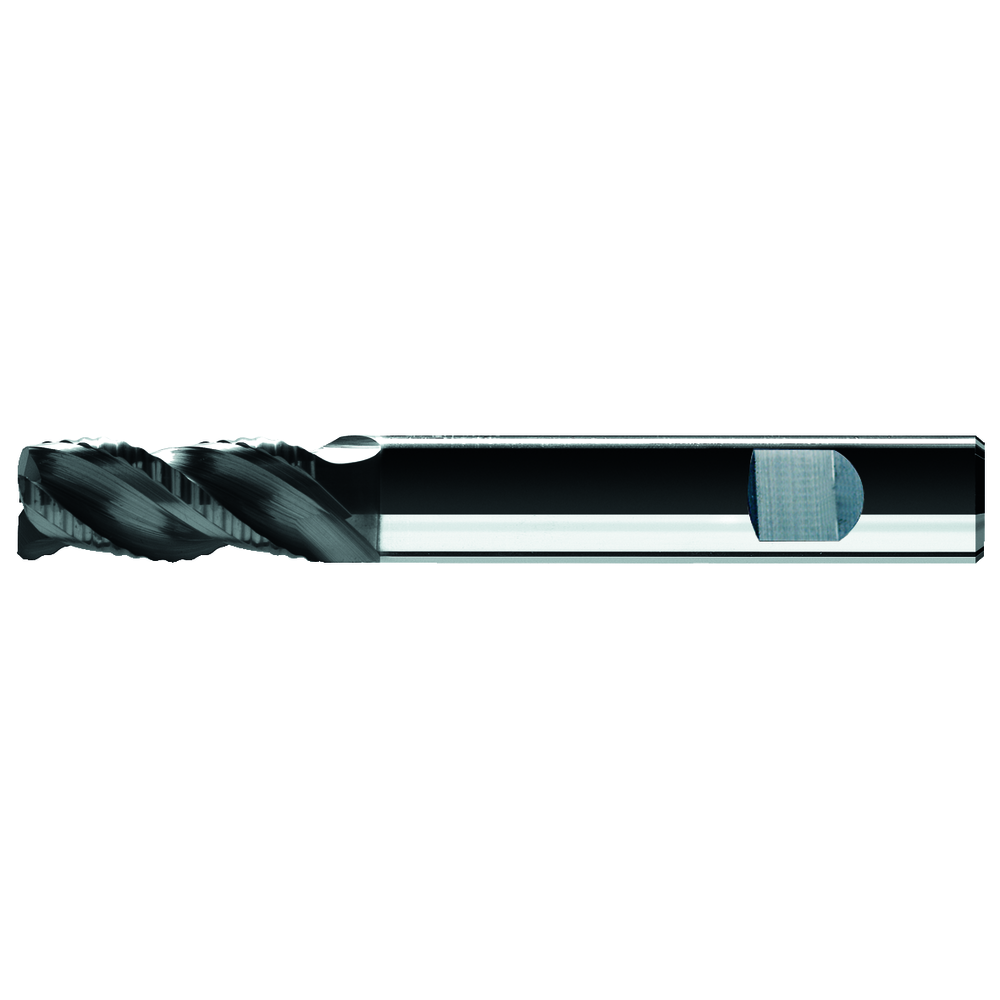

Solid carbide roughing cutter 40° 6mm Z=3 HB, TiAlN

Solid carbide roughing cutter 40° 6mm Z=3 HB, TiAlN
Solid carbide roughing cutter 40° 6mm Z=3 HB, TiAlN Solid carbide roughing cutter 40° 6mm Z=3 HB, TiAlN
Price:
66,25 €
prices excl. vat plus shipping costs

Stock status
in stock
Add to shopping cart
Tool Finder

Ordered by 19:30 - delivered tomorrow.

Feed rate up to 3 m/min.

VHRFFW roughing cutter
  • Cutting material: ultra-fine grain solid carbide, TiAlN-coated
  • Special microwave pre-treatment and finishing treatment
  • New chip flute geometry for enhanced cooling and chip flow
  • For wet and dry machining, extremely high chip removal rates and long service life

Article no./ATORN no.
2540150060
Vendor Article no.
VHRFFW30600640603025
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Cutting data Cutting angle Information - yes
Cutting material Solid carbide
D 6,0 mm
D1 6,0 mm
F 0,25 mm
Feed for grooving fz steel < 1000 mm² 0,035 mm/tooth
Feed for side milling fz steel < 1000 mm² 0,050 mm/tooth
Jaw quantity 3 cutting edges
L 64 mm
L1 16 mm
Milling application Side Ramp Plunge
Milling technology HPC
Shank Straight with driving plane, DIN 6535 HB
Spiral angle 40° RH helix angle
Tolerance Average tolerance e8
Z 3

Usage characteristics

cast iron GG/GTS
cast iron GGG
stainless steel austenitic
stainless steel duplex
stainless steel ferrit./martens.
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
STEP Download
DXF Download
Catalogue page Download
Cutting values Download
