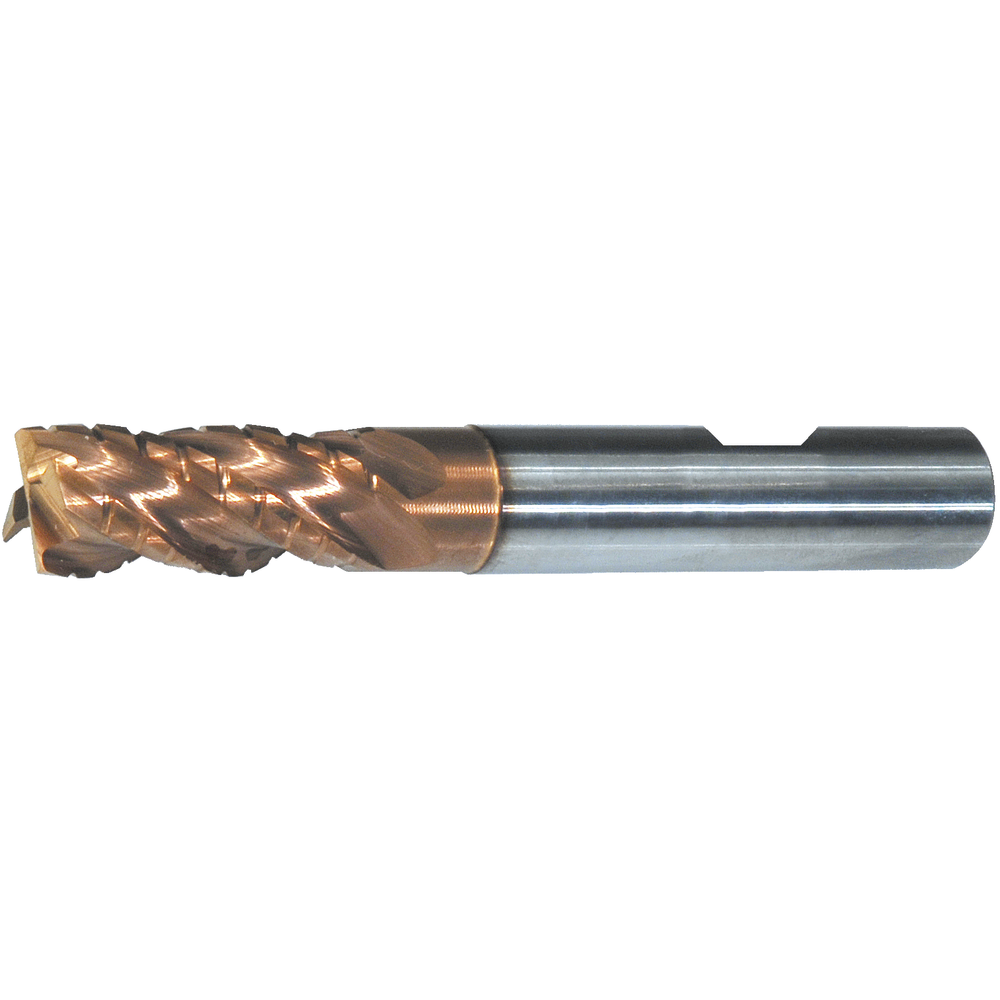

Solid carbide roughing cutter 35/38° NF 10mm Z=4 HB, IC TiAlN-Ultra

Solid carbide roughing cutter 35/38° NF 10mm Z=4 HB, IC TiAlN-Ultra
Solid carbide roughing cutter 35/38° NF 10mm Z=4 HB, IC TiAlN-Ultra Solid carbide roughing cutter 35/38° NF 10mm Z=4 HB, IC TiAlN-Ultra Solid carbide roughing cutter 35/38° NF 10mm Z=4 HB, IC TiAlN-Ultra
Price
155,00 €
prices excl. vat plus shipping costs

Stock status
subsequent delivery
Add to shopping cart
Tool Finder
Roughing cutter
  • With clearance
  • Edge protection chamfer
  • First-rate chip removal due to extremely smooth surface
  • Double-twisted internal cooling
  • Cutting material: solid carbide, TiAlN-Ultra-coated

Article no./ATORN no.
2540920100 / 11200147
Packaging unit
1
Catalogue page

Technical characteristics

Coating TiAlN
Coolant design Internal axial
Cutting data Ángulo de corte Info-Sí
Cutting material Solid carbide
D 10,0 mm
D1 10,0 mm
D3 9,6 mm
F x 45° 0,25 mm
Feed fz steel < 1400 N/mm² 0,032 mm/tooth
Feed fz steel < 1400 N/mm² 0,04 mm/tooth
Jaw quantity 4 cutting edges
L 72 mm
L1 22 mm
L2 32 mm
Milling application Side Ramp Plunge
Shank Straight with driving plane, DIN 6535 HB
Spiral angle 35°-38° RH helix angle
Type profile Type NF

Usage characteristics

cast iron GG/GTS
cast iron GGG
hardened steel ≤ 55 HRC
steel < 1000 N/mm²
steel < 1400 N/mm²
steel < 700 N/mm²

very suitable
suitable
Cutting values Download
